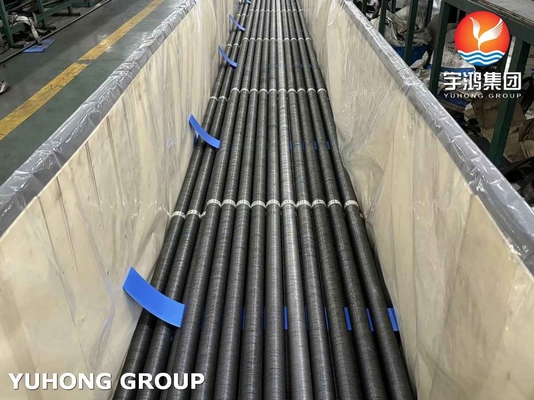

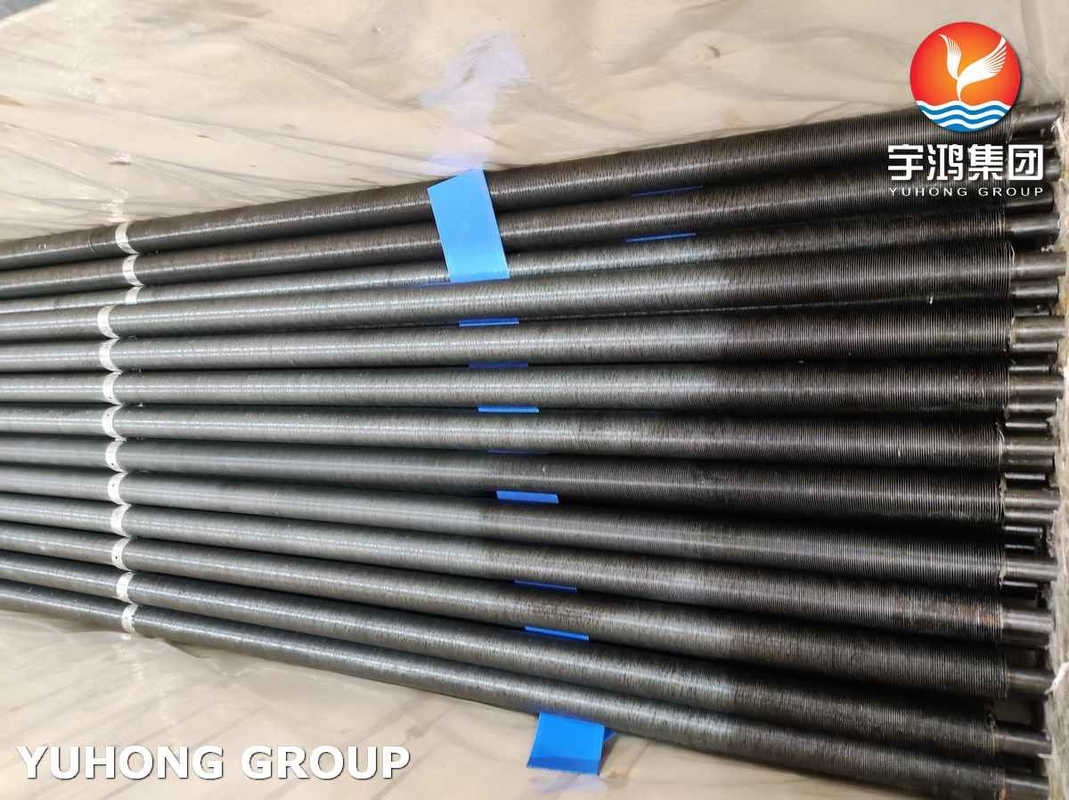

Name: Air Cooler Tube ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASTM A179
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASTM A179

Fin Material:

Al1060, Al1100

Fin Type:

Embedded Type

Application:

Air Cooler, Refrigeration System

Fin Height:

15.875mm

Fin Thickness:

0.4MM

Highlight:

air cooler tube A179

ASTM air cooler tube

Al1060 heat exchanger finned tubes

Product Description

Air Cooler Tube ASTM A179 Carbon Steel Embedded Fin Tube With Al1060 Fin

Material	ASTM A179
Fin Material	Al1060, Al1100
Fin Type	Embedded Type
Application	Air Cooler, Refrigeration System
Fin Height	15.875mm
Fin Thickness	0.4MM

Key Features

Base Tube Material: ASTM A179 Carbon Steel, providing good strength, durability, and heat transfer capabilities. Ideal for air cooler applications due to excellent mechanical properties and cost-effectiveness.
Fin Material: AL1060 Aluminum, known for high thermal conductivity, light weight, and corrosion resistance, making it perfect for efficient heat transfer.
Fin Type: Embedded Fin design with integrally bonded fins to the tube surface, enhancing heat exchange efficiency while minimizing thermal resistance.
Application: Specifically designed for high-performance cooling in air cooler systems for industrial, HVAC, and power generation applications.

Technical Specifications

Property	Base Tube (ASTM A179 Carbon Steel)	Fin Material (AL1060 Aluminum)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.0 mm - 3.0 mm	-
Fin Thickness	-	0.3 mm - 1.5 mm
Fin Height	-	10 mm - 30 mm
Fin Attachment	Embedded (integral bonding)	-

Chemical Composition

Element	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Carbon (C)	≤ 0.06%	≤ 0.03%
Manganese (Mn)	0.30% - 0.90%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Chromium (Cr)	≤ 0.30%	-
Nickel (Ni)	≤ 0.25%	-
Aluminum (Al)	-	≥ 99.0%

Mechanical Properties

Property	ASTM A179 Carbon Steel (Base Tube)	AL1060 Aluminum (Fin Material)
Tensile Strength	335 - 485 MPa	70 - 110 MPa
Yield Strength	≥ 205 MPa	30 - 55 MPa
Elongation	≥ 30%	≥ 20%

Advantages

Enhanced Heat Transfer: Embedded fin design increases surface area for improved cooling efficiency.
Corrosion Resistance: AL1060 aluminum provides superior resistance to corrosion, ensuring longevity in humid or corrosive environments.
Cost-Effective: ASTM A179 carbon steel offers an affordable solution without compromising mechanical strength.
Durability and Strength: Combination of materials ensures reliability under high operational pressures and temperatures.

Applications

Air Coolers: High-efficiency heat transfer for cooling air or fluids.
HVAC Systems: Residential and industrial cooling applications.
Industrial Cooling: Power plants, petrochemical plants, and manufacturing facilities.
Heat Exchangers: Cooling water, oil, or other fluids across various industries.
