Seamless Embedded G Fin Tube With AL1060 For Charge Air Cooler ASTM A179

Brand Name:	YUHONG
Model Number:	ASTM A179
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes

Type:

Embedded G Type

Standard:

ASME SA179

Material:

Base Tubes A179 And AL1060 Fins

Size And Details:

According To Clients' Need

Length:

According To Clients' Need

Application:

Air Cooler / Heat Exchanger / Heater / Economizaer, Etc.

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Embedded g fin tube

Seamless g fin tube

A179 g type finned tube

Product Description

Seamless Embedded G Fin Tube With AL1060 For Charge Air Cooler ASTM A179

Product Specifications

Attribute	Value
Product	Fin Tubes
Type	Embedded G Type
Standard	ASME SA179
Material	Base Tubes A179 and AL1060 Fins
Size and details	According to clients' need
Length	According to clients' need
Application	Air cooler / Heat exchanger / Heater / Economizer, etc.

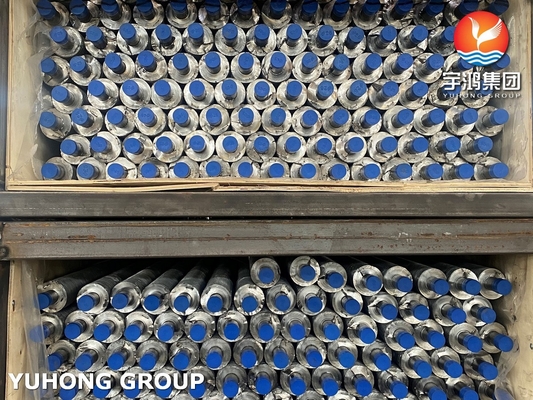

Packing	Ply-wooden Case With Iron Frame

Product Description

ASTM A179 covers minimum wall thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

Chemical Composition (%) max

Grade	C	Mn	P	S
SA179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
SA179	47ksi (325 MPa)	26ksi (180 MPa)	35%

Manufacturing Process: Tubes shall be made by the seamless process and shall be cold drawn.

Surface Condition: Finished tubes shall be free of scale. A slight amount of oxidation will not be considered as scale.

Hardness Requirements: The tubes shall have a hardness number not exceeding 72 HRB.

Heat Treatment: Tubes shall be heat treated after the final cold draw pass at a temperature of 1200°F [650°C] or higher.

Test Methods

Flattening Test, Flaring Test, Flange Test, Hardness Test, Hydrostatic Test.

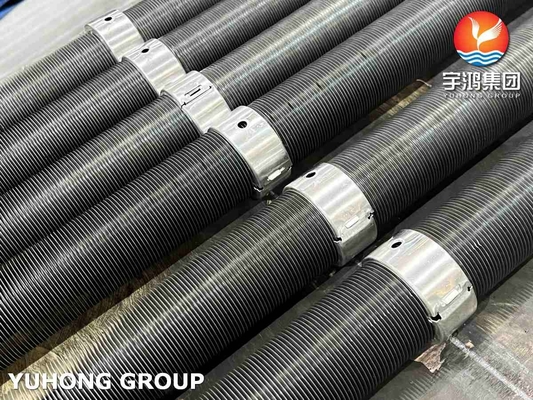

Embedded G Finned Tubes

Embedded G fin tubes feature fins mechanically embedded into grooves plowed into the tube, then locked into place by back-filling with the base tube material. The G fin is made by tension winding a fin strip (typically aluminum or copper) into a groove machined on the tube's outer surface.

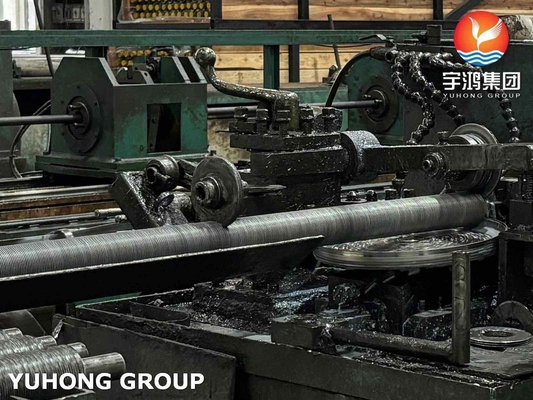

Processing Technology: Fins are tightly embedded in the outer surface of the mechanically slotted base tube.

Base Tube Materials: Carbon steel, alloy steel, stainless steel, and copper.

Fin Materials: Aluminum (Al 1060, Al 1100) or copper (T2 copper).

Applications: HVAC air cooler, refrigeration, condensers, heat exchanger, power generation, heater, radiator economizer (Suitable for high temperature environments up to 350℃).

Specifications For Various Types Of Finned Tubes

Type	Description	Fin Specification (mm)
		O.D.	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube / T-type	fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube	corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
