ASME SA179 Seamless Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Economizer

Brand Name:	YUHONG
Model Number:	ASME SA179
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Embedded G Type

Standard:

ASME SA179

Material:

Base Tubes SA179 And AL1060 Fins

Length:

According To Clients' Need

Size And Details:

According To Clients' Need

Packing:

Ply-wooden Case With Iron Frame

Application:

Air Cooler / Heat Exchanger / Heater / Economizaer, Etc.

Supply Ability:

1000 tons/month

Highlight:

AL1060 Embedded G Fin Tubes

Economizer Embedded G Fin Tubes

ASME SA179 Seamless Tube

Product Description

ASME SA179 Seamless Tube With Aluminum AL1060 Embedded G Type Fin Tubes For Economizer

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Embedded G Type
Standard	ASME SA179
Material	Base Tubes SA179 and AL1060 Fins
Length	According to clients' need
Size and details	According to clients' need
Packing	Ply-wooden Case With Iron Frame
Application	Air cooler / Heat exchanger / Heater / Economizer, etc.

Product Details

ASME SA179 specification covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

Manufacturing Specifications

Manufacture: Seamless process, cold drawn
Heat Treatment: At 1200°F [650°C] or higher after final cold draw
Surface Condition: Scale-free with minimal oxidation
Hardness Requirements: Not exceeding 72 HRB

Keywords: Cold drawn tubes, Condenser tubes, Heat exchanger tubes, Low carbon tubes, Seamless tubes, Boiler tubes

Chemical Composition (%)

Grade	C	Mn	P	S
SA179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
SA179	47ksi (325 MPa)	26ksi (180 MPa)	35%

Test Methods

Flattening Test, Flaring Test, Flange Test, Hardness Test, Hydrostatic Test

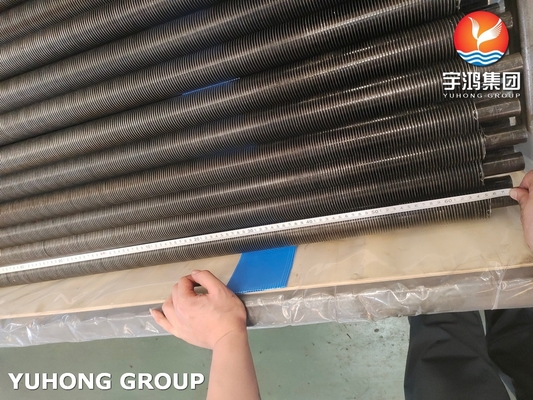

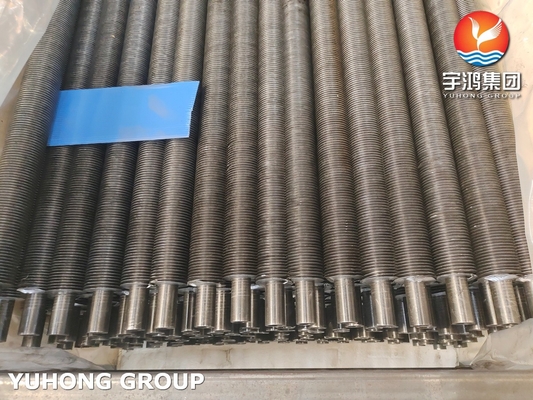

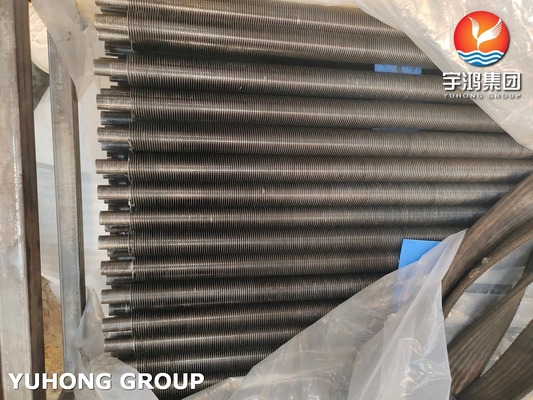

Embedded G Finned Tubes

Embedded G fin tubes feature fins mechanically embedded into a groove (approximately 0.4mm deep) plowed into the base tube's outer diameter. The aluminum or copper fin strip is tension-wound into the groove and backfilled for secure locking.

Technical Specifications

Processing: Fins tightly embedded in mechanically slotted base tube
Base pipe materials: Carbon steel, alloy steel, stainless steel, duplex steel, copper
Fin materials: Aluminum 1060, aluminum 1100, T2 copper
Temperature limit: 350℃

Key Advantages

Cost-effective solution
Environmentally friendly design
Energy conservation properties
Highly efficient heat transfer

Application Areas

Petroleum, chemical and petrochemical industries
Natural gas processing
Steel industry blast furnace and converter systems
Power generation plants
Air conditioning systems
Waste incineration equipment
Compressor coolers

Finned Tube Specifications

Description	Fin Specification (mm)
	O.D.	Fin pitch	Fin height	Fin thick
G-type fin tube	16-63	2.1~5	<17	~0.4
Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type fin tube	16-38	/	/	/
