ASTM A179 G-Type Embedded Finned Tubes With AL Fins For Air Cooler Heat Exchangers

Brand Name:	YUHONG
Model Number:	ASTM A179 G-Type Embedded
MOQ:	100 KGS
Price:	Negotiate

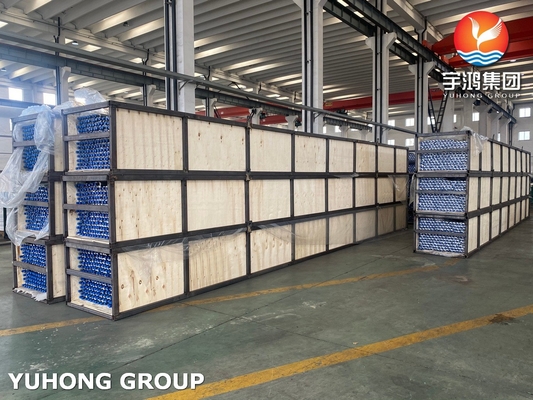

Packaging Details:	Plywooden case with Iron Frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Name:

Embedded Finned Tube

Type:

G-Type

Application:

Heat Exchangers, Air Coolers, Condensers, Evaporators, Radiators

Material:

Aluminium,Carbon Steel,Copper Stainless Steel,carbon Steel/stainless Steel/copper,carbon Steel Pipe With Aluminium Spiral Fin

Tube Material Grade:

TP304, 316L, 321, SA179, T5, T9, T11, T12, T22

Fin Spacing:

2.0mm-20mm

Wall Thickness:

0.84mm

Tube Diameter:

15mm, 19mm, 25mm, 32mm, 38mm, 42mm

Supply Ability:

4150 Ton Per Month

Highlight:

AL Embedded Finned Tubes

Air Cooler Embedded Finned Tubes

ASTM A179 Embedded Finned Tubes

Product Description

ASTM A179 G-Type Embedded Finned Tubes With AL Fins For Air Cooler Heat Exchangers

Product Specifications

Base Tube: ASTM A179 Seamless Cold-Drawn Steel
Fin Material: Aluminum (1100/1060 grade)
Fin Height: 12.7-25.4mm (0.5"-1.0")
Fin Thickness: 0.4-1.2mm
Fin Density: 118-433 FPM (Fins Per Meter)
Surface Treatment: Plain/Galvanized/Paint Coating

Technical Specifications

Chemical Composition of Base Tube (ASTM A179):

Element	C	Mn	P	S
% Max	0.25	0.84	0.035	0.035

Mechanical Properties:

Property	Value
Tensile Strength	≥345 MPa
Yield Strength	≥180 MPa
Elongation	≥30%
Hardness	≤137 HB

Aluminum Fin Properties:

Parameter	Value
Fin Height	8-16mm
Fin Thickness	0.4-0.8mm
Fin Density	7-14 FPI
Thermal Conductivity	≥200 W/m*K

Manufacturing Process

Our G-type finned tubes are produced using advanced high-frequency welding technology, ensuring superior mechanical bonding between fins and base tubes.

Base tube preparation and cleaning
High-frequency fin welding
Quality inspection
Surface treatment
Final testing

Key Applications

Air-cooled heat exchangers
Industrial cooling systems
Power plant condensers
Chemical process equipment
HVAC systems
Oil & gas heat exchangers

Product Advantages

Enhanced heat transfer efficiency (up to 15-20 times vs. bare tubes)
Excellent mechanical bonding strength
Superior corrosion resistance
Extended service life
Cost-effective heat exchange solution
Customizable specifications

Quality Assurance

All products undergo rigorous testing and inspection, including:

Hydrostatic pressure test
Fin attachment testing
Dimensional inspection
NDT testing
Surface quality inspection

As a leading manufacturer of finned tubes with 20 years of export experience to 80+ countries, Yuhong Holding Group Co., Ltd. proudly presents our premium G-Type embedded finned tubes, specifically engineered for industrial heat exchange applications.

With our state-of-the-art production facility spanning 20,000 square meters, 55 production lines, and over 110 skilled employees, Yuhong Holding Group ensures consistent quality and timely delivery. Contact us today for your industrial heat exchange requirements.
