Embedded G Fin Tube, Stainless Steel Seamless Tube ASTM A213 TP316L With Aluminum 1060, Oil Refinary Cooling

Brand Name:	YUHONG
Model Number:	G Fin tube , Embedded Fin tube , Stainless Steel Embedded G Type Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD

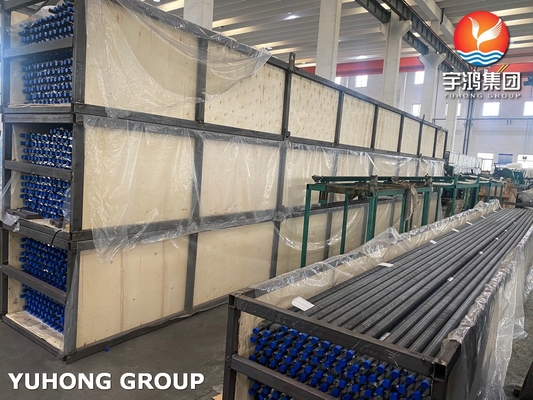

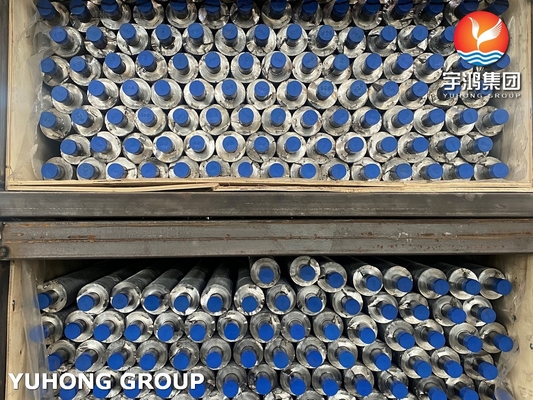

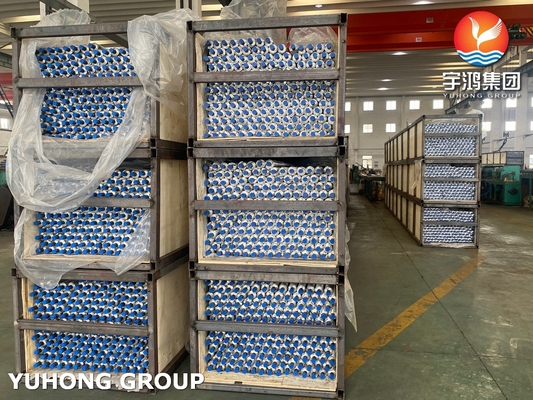

Packaging Details:	Ply-Wooden Case + Iron Frame

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

TP316, TP316L , TP316H, SUS316, SUS316L, 1.4404

Base Tube Material Standard:

ASTM A213, ASME SA213, JIS G3459, GOST 9941

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube

Fin Material:

Aluminum , Copper

Testing:

Firmness Test, Pull Test

Supply Ability:

10000 Tons/Month

Highlight:

Embedded G Fin Tube

G Fin Tube ASTM A213

Stainless Steel Seamless Tube TP316L

Product Description

Embedded G Fin Tube, Stainless Steel Seamless Tube ASTM A213 TP316L With Aluminum 1060, Oil Refinery Cooling

Product Specifications

Attribute	Value
Base Tube Material Grade	TP316, TP316L, TP316H, SUS316, SUS316L, 1.4404
Base Tube Material Standard	ASTM A213, ASME SA213, JIS G3459, GOST 9941
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type	G Fin tube, Embedded Fin tube, Embedded G Type Fin Tube
Fin Material	Aluminum, Copper
Testing	Firmness Test, Pull Test

Product Description

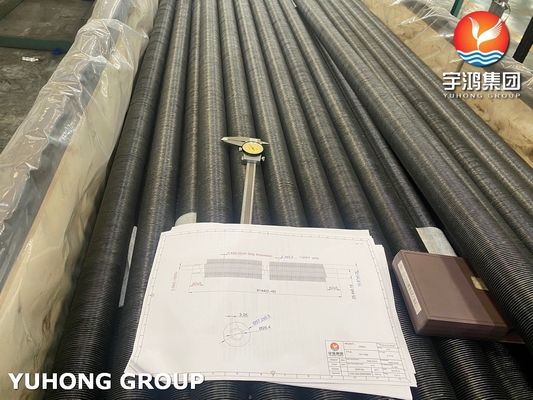

Embedded G fin tubes feature a fin strip wound into a machined groove and securely locked into place by back filling with base tube material. This construction ensures maximum heat transfer is maintained at high tube metal temperatures.

Embedded fins (G Fins) are manufactured by winding aluminum or copper strip into a helical groove machined on the outer surface of the tube.

Fin Tube Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thickness (mm)
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8.0~30	<2.5	/
Wound	L/KL/LL type fin tube	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3

ASME SA213 TP316L Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo
≤0.035	≤1.0	≤2.0	≤0.045	≤0.03	16.0~18.0	10.0~14.0	2.0~3.0

ASME SA213 TP316L Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Testing Equipment

Hydraulic test lines up to 40MPa
Under water pneumatic test
Computer controlled microscope
Penetration Test
Ultrasonic thickness gauge
Fin Firmness Test equipment
Other specialized testing equipment

Applications

Dry Kiln
Steam systems
Refineries
Energy plants
Reactors
Heat exchangers
Gas Station air cooling
Cooling towers
Waste equipment
