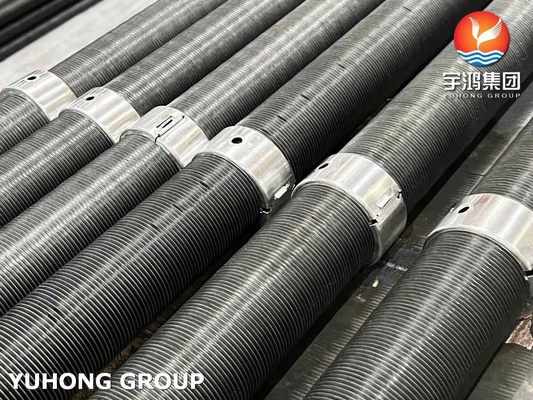

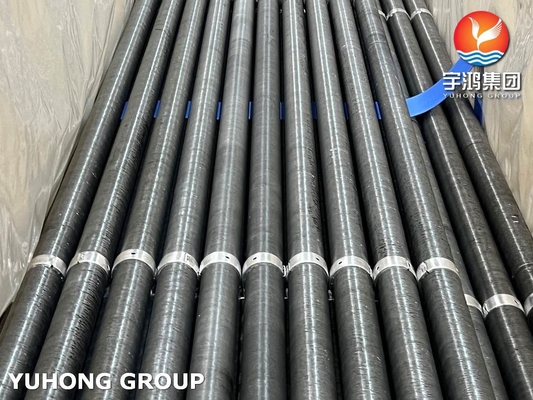

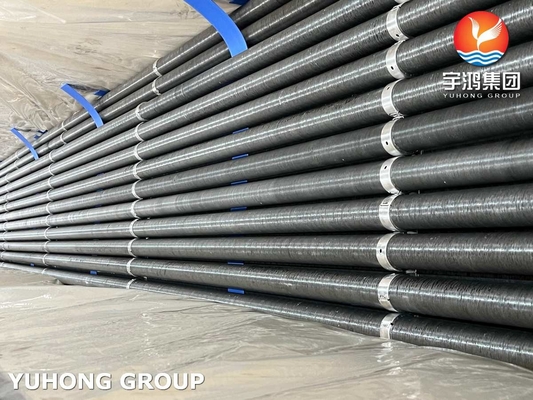

Embedded G Fin Tube , Carbon Steel ASTM A179 With ASTM B209 Al 1050 For Cooling Tower Application

Brand Name:	YUHONG
Model Number:	G Fin tube , Embedded Fin tube , Embedded G type fin tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Ply-Wooden Case +Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

A179, A192, A-1, C, A214, 10#, 20#, St35.8, St37.8

Base Tube Material Standard:

ASTM A178, ASTM A179, ASME SA179, ASTM A210, ASME SA210

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube

Fin Material:

Aluminum ,Copper, Stainless Steel, Carbon Steel

Supply Ability:

10000 tons/month

Highlight:

ASTM A179 G Fin Tube

G Fin Tube ASTM B209

Carbon Steel tube Al 1050

Product Description

Embedded G Fin Tube, Carbon Steel ASTM A179 With ASTM B209 Al 1050 For Cooling Tower Application

Product Specifications

Attribute	Value
Base Tube Material Grade	A179, A192, A-1, C, A214, 10#, 20#, St35.8, St37.8
Base Tube Material Standard	ASTM A178, ASTM A179, ASME SA179, ASTM A210, ASME SA210
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	G Fin tube, Embedded Fin tube, Embedded G type fin tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

Yuhong Holding Group brings over 35 years of expertise in manufacturing steel pipes and fin tubes, specializing in applications for petrochemical plants, oil refineries, furnaces, boilers, heat exchangers, and air coolers. Our YUHONG brand products are exported to more than 85 countries worldwide, including the UK, Italy, Spain, USA, Mexico, Colombia, Brazil, Saudi Arabia, Oman, Qatar, UAE, and Korea, earning an excellent market reputation.

Embedded G Fin Tube Features

Enhanced Heat Transfer: G-shaped fins increase surface area for superior heat exchange between internal fluids and the environment
Fouling Resistance: Unique fin design minimizes dust and contaminant accumulation, reducing maintenance needs
Durable Construction: Carbon steel ASTM A179 base tube with ASTM B209 Al 1050 fins

Applications

Air cooling heat exchangers
Steam coils and air preheaters
Finned tube heat exchangers and air coolers
Oil coolers and hydrogen coolers
Waste heat recovery systems and driers
Air conditioning and air heating systems
Steam condensers and generator coolers

Technical Specifications

Base Tube/Core Tube O.D: 15.88-76.2mm

Fin Height: 6-19mm

Fin Thickness: 0.2-0.6mm

Fin Pitch: Customizable to customer requirements

Ends: Plain Ends

No Fin Area: Customizable per customer specifications

ASTM A179 Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo	TI	Nb	Cu	Al	V	Co	Fe	Result
0.06~0.18	/	0.27~0.63	≤0.035	≤0.035	/	/	/	/	/	/	/	/	/	/	/

ASTM A179 Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥325	≥180	≥35
