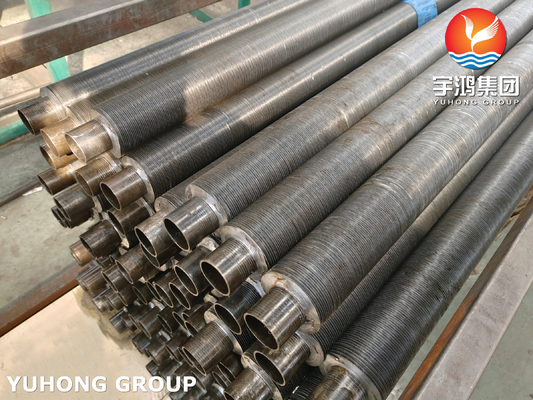

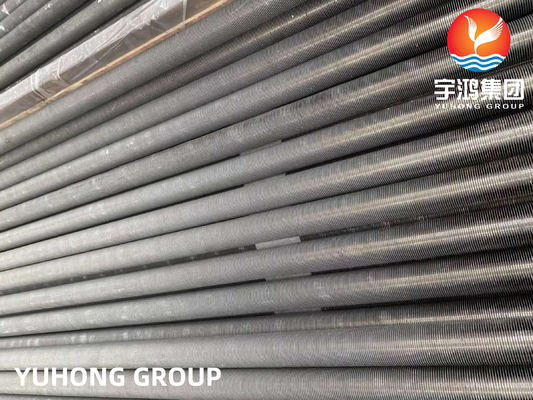

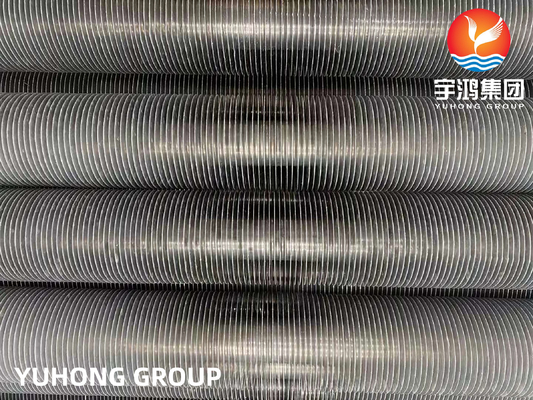

Stainless Steel Embedded G Fin Tube, ASTM A249 TP304 Welded Tube With Aluminum 1060, Dry Kiln Application

Brand Name:	YUHONG
Model Number:	G Fin tube , Embedded Fin tube , Embedded G Type Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

TP304, TP304L, TP304H, 1.4301, 1.4306, 1.4307, SUS304

Base Tube Material Standard:

ASTM A249, ASME SA249, DIN EN 10217-7

Type:

Straight Tube , U Bend Tube , Coil Tube

Appli0cation:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

G Fin Tube , Embedded Fin Tube , Embedded G Type Fin Tube

Fin Material:

Aluminum , Copper

Testing:

Firmness Test, Pull Test

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A249 g type finned tube

g type finned tube for Dry Kiln

TP304 Stainless Steel Welded Tube

Product Description

Stainless Steel Embedded G Fin Tube, ASTM A249 TP304 Welded Tube With Aluminum 1060, Dry Kiln Application

Product Specifications

Attribute	Value
Base Tube Material Grade	TP304, TP304L, TP304H, 1.4301, 1.4306, 1.4307, SUS304
Base Tube Material Standard	ASTM A249, ASME SA249, DIN EN 10217-7
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type	G Fin tube, Embedded Fin tube, Embedded G Type Fin Tube
Fin Material	Aluminum, Copper
Testing	Firmness Test, Pull Test

Product Features

Heat Transfer Efficiency: The embedded G fin design increases surface area for improved heat transfer, crucial for precise temperature control in dry kilns.
Resistance to Fouling: Finned surface minimizes accumulation of dust and contaminants, preventing process disruptions.
Customization Options: Available in various fin densities, material compositions, and tube diameters for optimal performance.
Mechanical Strength: Robust design resists damage and deformation in high-temperature conditions.
Longevity & Durability: Engineered to withstand harsh dry kiln environments for long-term performance.

Material Specifications

ASME SA312 TP304 Chemical Composition (%)
C	Si	Mn	P	S	Cr	Ni	Mo	Ti	Nb	Cu	Al	V	Co	Fe	Result
≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	18.0~20.0	8.0~11.0	/	/	/	/	/	/	/	/	/

ASME SA312 TP304 Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Applications

Dry Kiln, Steam systems, Refineries, Energy plants, Reactors, Heat exchangers, Gas Station for air cooling or cooling tower, Waste Equipment
