ASME SA210 Gr.A-1 Embedded G Type Fin Tube, Aluminum ASTM B209 Gr.1060, Cooling Tower And Heat Exchanger Application

Brand Name:	YUHONG
Model Number:	Embedd G Type fin Tube , G Fin Tube , Embedded Fin Tube
MOQ:	1PC
Price:	1--10000 USD

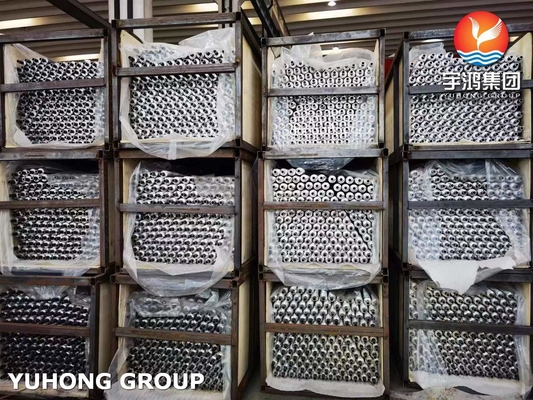

Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Base Tube Material:

ASTM A210 Gr.A-1, ASME SA210 Gr.A-1

Fin Material:

ASTM B209, ASME SB209 Aluminum 1060, 1100

Fin Type:

Embedded G Type Fin Tube , G Fin Tube , Embedded Fin Tube

Application:

Air Cooler, Cooling Tower , Heat Exchanger

Fin Tube Length:

Max.: 34m/pc

Fin Thickness:

0.2~0.5mm

Fin Hight:

12.7~18mm

Supply Ability:

10000 tons/month

Highlight:

ASME SA210 g type finned tube

Embedded g type finned tube

Gr1060 Cooling Tower Tube

Product Description

ASME SA210 Gr.A-1 Embedded G Type Fin Tube

Aluminum ASTM B209 Gr.1060 for Cooling Tower and Heat Exchanger Applications

Product Specifications

Attribute	Value
Base Tube Material	ASTM A210 Gr.A-1, ASME SA210 Gr.A-1
Fin Material	ASTM B209, ASME SB209 Aluminum 1060, 1100
Fin Type	Embedded G Type Fin Tube, G Fin tube, Embedded Fin Tube
Application	Air Cooler, Cooling Tower, Heat Exchanger
Fin Tube Length	Max.: 34m/pc
Fin thickness	0.2~0.5mm
Fin Height	12.7~18mm

Product Description

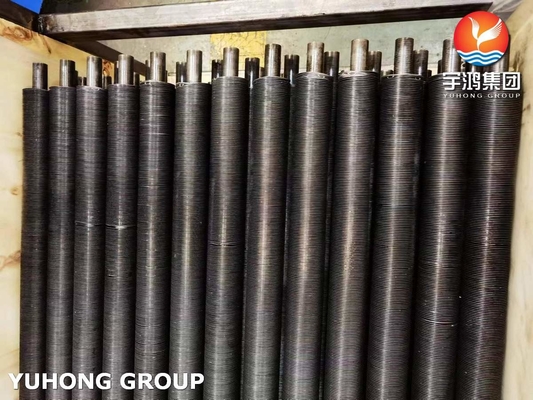

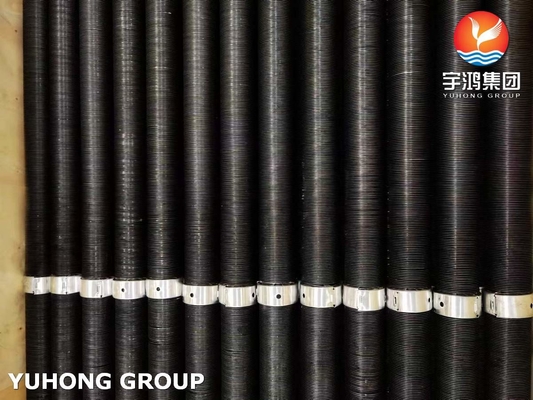

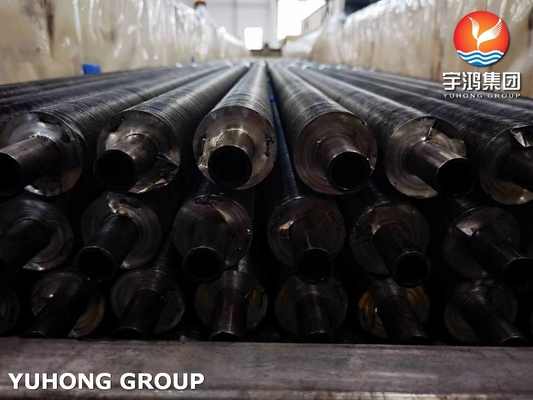

Embedded fins (G Fins) are manufactured by winding aluminum or copper strip into a helical groove machined on the tube's outer surface. The fin strip is securely locked into place by back filling with base tube material, ensuring optimal heat transfer at high temperatures.

Key Features

Maximum Working Temperature: 400°C
Atmospheric Corrosion Resistance: Low
Mechanical Resistance: Medium
Fin Materials: Aluminum, Copper, Carbon Steel
Base Tube Materials: Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel

Technical Specifications

Standard: ASTM A210/A210M - Seamless Medium-Carbon Steel Boiler and Superheater Tubes
Steel Grade: Grade A-1; Grade C
Delivery Condition: Annealed, Normalized, Normalized and Tempered

Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo	TI	Nb	Cu	Al	V	Co	Fe	Result
≤0.27	≤0.10	≤0.93	≤0.035	≤0.035	/	/	/	/	/	/	/	/	/	/

Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥415	≥255	≥35

Applications

Heat exchangers for power plants (electric, nuclear, thermal, geothermal), high corrosive systems (condensers, evaporators, sea water desalination), petrochemical industries, food processing, refrigeration industries, and natural gas treatment (LNG Gas Station).
