A335 P9 Welded Helical Serrated Finned Tube With Carbon Steel Fins For Power Plants

Brand Name:	YuHong
Model Number:	Welded Helical Serrated Finned Tube+
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Product Name:

HFW Serreted Finned Tube

Base Tube Specification&Material:

ASTM A335 P9

Fin Material:

Fin Height:

0.375″ To 1.25″

Fin Segment Width:

5/32″ Or 5/16″

Fin Thickness:

20ga (.035″) To 16ga (.060″)

Fin Pitch:

1 To 7 Fins Per Inch

Base Tube O.D.:

1.00″ To 12.75″ Outside Diameter

Applicatin:

Heat Exchangers, Air Preheaters, Boilers, And Reactors

Supply Ability:

According to Clients' requirements

Highlight:

P9 serrated fin

A335 serrated fin

ASTM fin and tube

Product Description

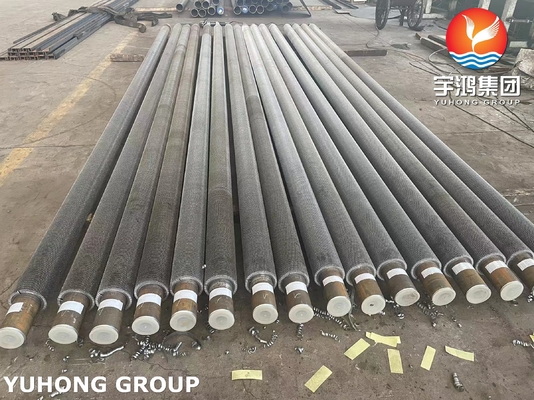

A335 P9 Welded Helical Serrated Finned Tube With Carbon Steel Fins For Power Plants

Product Specifications

Attribute	Value
Product Name	HFW Serreted Finned Tube
Base Tube Specification & Material	ASTM A335 P9
Fin material	C.S.

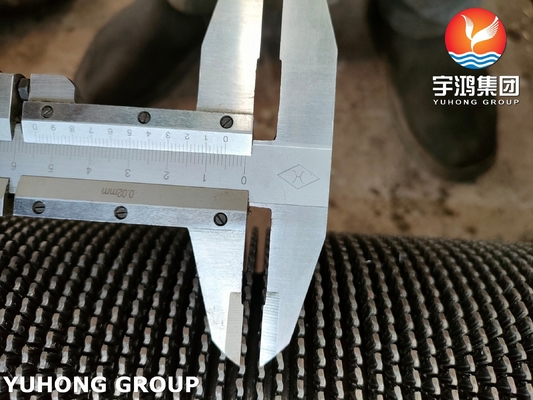

Fin Height	0.375″ to 1.25″
Fin Segment Width	5/32″ or 5/16″
Fin Thickness	20ga (.035″) to 16ga (.060″)
Fin Pitch	1 to 7 fins per inch

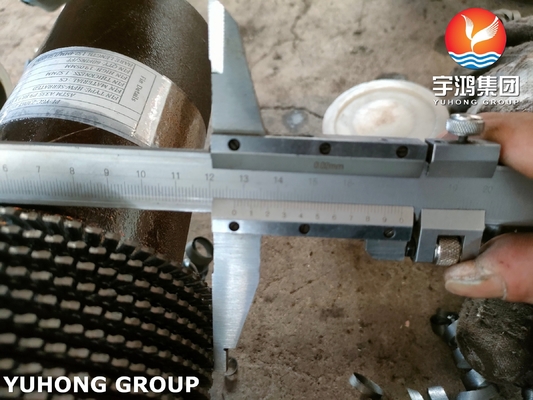

Base Tube O.D.	1.00″ to 12.75″ outside diameter
Application	Heat Exchangers, Air Preheaters, Boilers, and Reactors

Product Description

The ASTM A335 P9 Welded Helical Serrated Finned Tube with Carbon Steel Fins is a specialized heat exchanger tube designed for high-temperature and high-pressure applications in power plants and industrial processes.

Key Features

Welded Construction: Fins are securely welded to the base tube for strong mechanical bond and efficient heat transfer
Helical Design: Spirally wound fins maximize surface area for superior heat exchange
Serrated Fin Profile: Notched design enhances heat transfer by creating fluid turbulence
Carbon Steel Fins: Cost-effective solution with excellent thermal conductivity
High-Temperature Resistance: P9 alloy steel base tube withstands extreme operating conditions

Material Composition (ASTM A335 P9)

Element	Composition (%)
Carbon (C)	0.15 max
Manganese (Mn)	0.30-0.60
Phosphorus (P)	0.025 max
Sulfur (S)	0.025 max
Silicon (Si)	0.50-1.00
Chromium (Cr)	8.00-10.00
Molybdenum (Mo)	0.90-1.10

Composition optimized for high-temperature strength, oxidation resistance, and corrosion resistance.

Mechanical Properties

Property	Value
Tensile Strength	415 MPa (60,000 psi) min
Yield Strength	205 MPa (30,000 psi) min
Elongation	30% min (in 2 inches or 50 mm)
Hardness	≤ 197 HBW (Brinell Hardness)

Material maintains strength and integrity at elevated temperatures with excellent weldability.

Industrial Applications

Power Generation: Boilers, superheaters, reheaters, and economizers in power plants
Petrochemical: Process heaters, heat exchangers, and waste heat recovery systems
Oil & Gas: Gas cooling systems, air coolers, and fired heaters
Refining: Crude oil heaters, catalytic reforming units, and hydrogen plants
Industrial Heating: Air heaters and heat recovery systems for process applications
High-Temperature Systems: Incinerators and chemical processing equipment
