Attribute	Value
Fin Wall thickness	0.8-3mm
Base Tube Material	A106, A210, A179, A192
Fin Pitch	FPI: 3-25
Fin Material	Carbon Steel

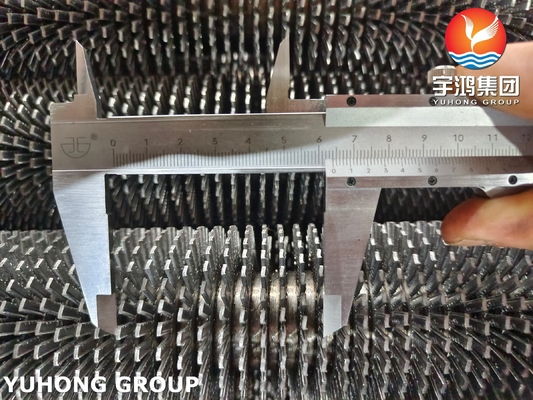

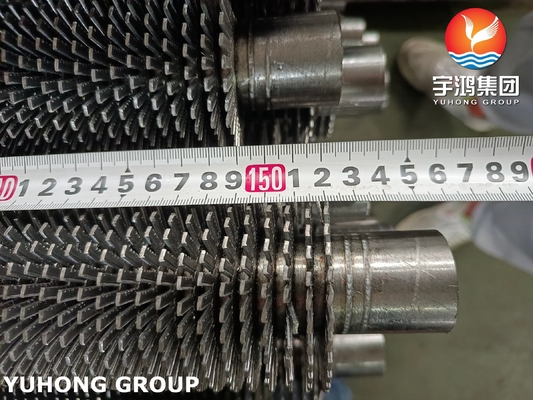

Fin Height	5-30mm
Length	Max 34M/PC

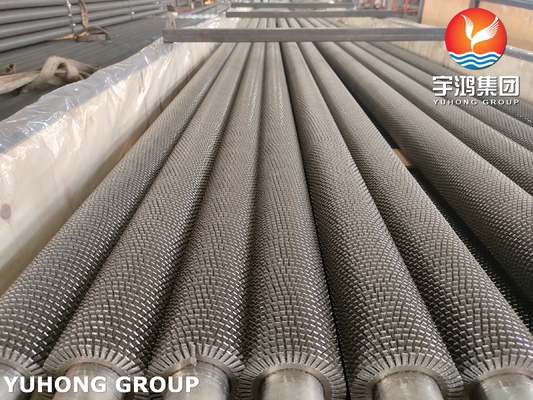

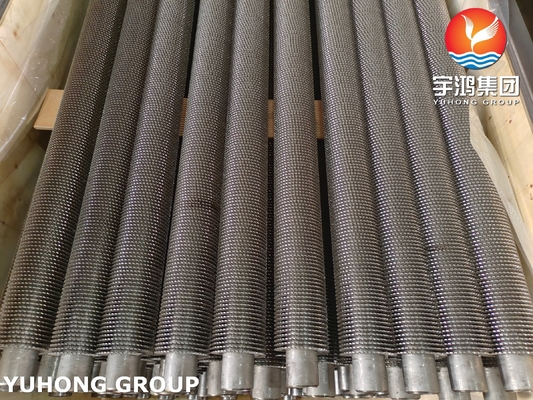

Product Name	Carbon Steel Serrated Fin Tube

ASME SA192 Base Tube Composition

Carbon: 0.06-0.18%
Manganese: 0.27-0.63%
Phosphorus (max): 0.035%
Sulfur (max): 0.035%
Silicon (max): 0.25%

Applications

Economizer:

Utilizes flue gas waste heat to preheat boiler feed water. Serrated fins significantly increase heat transfer area (3-5 times higher than light tubes) with typical parameters: flue gas temperature 250-400℃, pressure ≤5 MPa.

Air Preheater:

In coal-fired power plants for heating combustion air, designed to reduce ash accumulation and resist smoke erosion wear.

Process Gas Cooler:

Handles corrosive gases (H₂S, CO₂) with SA192 base tube resistance to high temperature. Serrated fins enhance turbulence and reduce scaling, achieving 15% pressure drop reduction in catalytic cracking units.

Waste Heat Recovery:

For Gas Turbine Exhaust Heat Boilers (HRSG) in high temperature (500-600℃) environments. Sawtooth fins provide vibration resistance and fatigue fracture prevention.

Key Strengths

Material Properties:

Tensile Strength: 47,000 psi (324 MPa) minimum
Yield Strength: 26,000 psi (179 MPa) minimum
Elongation: ~35% in 2 inches

Fin Design Advantages:

Optimized height/thickness for strength and heat transfer
Serration pattern enhances mechanical strength
High-frequency welding ensures fin-to-tube bond strength

Performance in Operating Conditions:

High-temperature service capability
Pressure containment through proper wall thickness
Seamless construction for reliability

Standards and Compliance

ASME Boiler and Pressure Vessel Code (Section I & VIII)
Non-destructive testing (UT, hydrostatic) for integrity verification
ASME Sec.IX welding process certification
