ASTM A335 P11 Serrated Finned Tubes With Gr 11 Fins For Power Generation

Brand Name:	YUHONG
Model Number:	ASTM A335 P11
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Serrated Spiral Fin Tubes

Material:

ASTM A335 P11 Base Tubes And Gr.11 Fins

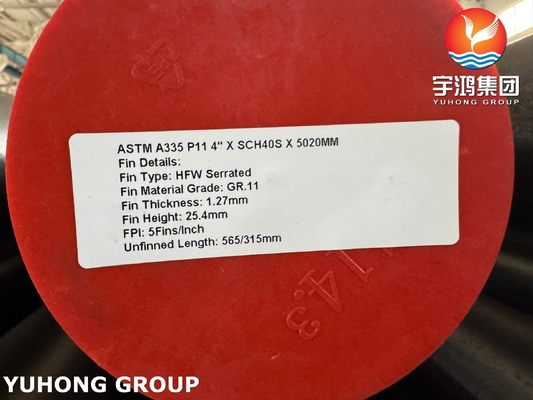

Tube Details:

114.3mm O.D. And 6.02mm ( SCH 40S ) W.T.

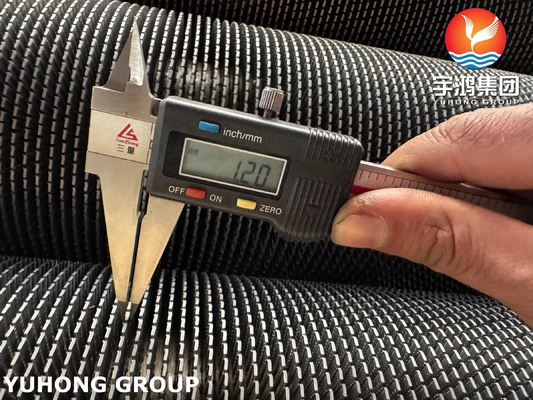

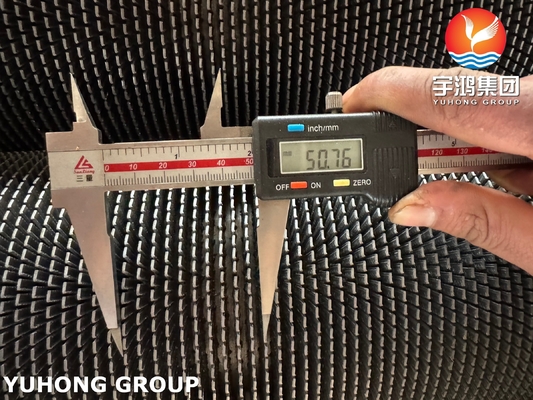

Fin Details:

Fin Thickness 1.27mm, Fin Height 25.4mm, 5 FPI

Length:

5020mm/pc

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

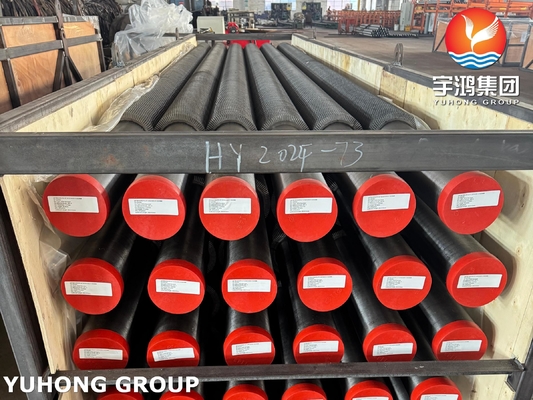

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

P11 serrated fin

A335 serrated fin

ASTM finned tube heat exchanger

Product Description

ASTM A335 P11 Serrated Finned Tubes With Gr 11 Fins For Power Generation

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Serrated Spiral Fin Tubes
Material	ASTM A335 P11 Base Tubes and Gr.11 Fins
Tube Details	114.3mm O.D. and 6.02mm (SCH 40S) W.T.
Fin Details	Fin Thickness 1.27mm, Fin Height 25.4mm, 5 FPI
Length	5020mm/pc
Use	For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Packing	Ply-wooden Case With Iron Frame

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	V
P11	0.05-0.15	0.30-0.60	0.025	0.025	0.5-1.00	1.00-1.50	0.44-0.65	...	...

Mechanical Properties

Grade	Tensile Strength, min	Yield Strength (0.2% Offset, min)
P11	60ksi (415 MPa)	30ksi (205 MPa)

ASTM A335 covers nominal wall and minimum wall seamless ferritic alloy-steel pipe intended for high-temperature service. Pipe ordered to this specification shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Selection will depend upon design, service conditions, mechanical properties, and high-temperature characteristics.

Key Features of ASTM A335 P11 Pipes

High-Temperature Resistance: Designed to withstand elevated temperatures, making them suitable for power plants and refineries.
Excellent Strength: Offers high tensile and yield strength, ensuring durability under stress.
Corrosion Resistance: Performs well in environments with moderate corrosion, especially at high temperatures.
Seamless Construction: Provides superior reliability and strength compared to welded pipes.
Creep Resistance: Maintains structural integrity under long-term exposure to high temperatures and pressures.

Serrated Finned Tubes

Serrated spiral HF (high-frequency) welding fin tubes are advanced heat exchangers designed to enhance thermal performance through a unique fin design. The combination of serrated fins and spiral configurations maximizes heat transfer while maintaining structural integrity.

Advantages

High efficiency allows for smaller and more compact heat exchanger designs
The serrated design significantly enhances thermal efficiency by increasing turbulence and surface area
Improved heat transfer efficiency can lead to energy savings and reduced operational costs
Suitable for a wide range of temperatures, pressures, and corrosive environments

Applications

Air-Cooled Heat Exchangers: Ideal for applications where air is the cooling medium, such as in power plants and refineries
Boilers and Economizers: Used to recover waste heat and improve energy efficiency
Petrochemical Industry: Suitable for process heaters, coolers, and condensers
HVAC Systems: Employed in air handlers, chillers, and heat pumps
Renewable Energy: Used in geothermal and solar thermal systems
Industrial Cooling Systems: Effective in cooling towers and other industrial cooling applications
