SA335 P11 ASME Alloy Steel HFW Serrated Finned Pipe With Gr.11 Fin For Heater Coil

Brand Name:	Yuhong
Model Number:	ASME SA335 P11
MOQ:	1 pc
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASME SA335 P11

Fin Material:

Gr.11

FIn Type:

HFW Serrated

Fin Height:

25.4mm

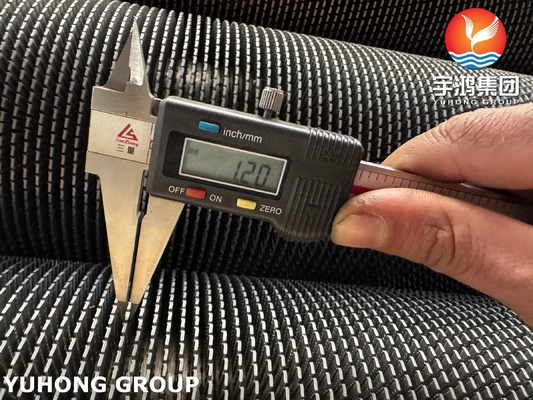

Fin Thickness:

1.2mm

Application:

Furnace, Heater

Highlight:

SA335 finned pipe

P11 finned pipe

Gr.11 fin pipe

Product Description

SA335 P11 ASME Alloy Steel HFW Serrated Finned Pipe With Gr.11 Fin For Heater Coil

Material	ASME SA335 P11
Fin Material	Gr.11
Fin Type	HFW Serrated
Fin Height	25.4mm
Fin Thickness	1.2mm
Application	Furnace, Heater

ASME SA335 P11 Alloy Steel HFW Serrated Fin Tube with Gr.11 Fin Material

Key Features

Base Tube Material: ASME SA335 P11 Alloy Steel, a high-strength, heat-resistant alloy steel designed for high-temperature and high-pressure applications. Offers excellent oxidation and corrosion resistance for harsh environments.
Fin Material: Gr.11 Steel, a chrome-moly alloy variant providing enhanced heat resistance and strength for elevated temperature applications.
Fin Type: Serrated Fin design increases heat transfer surface area and improves thermal efficiency by creating fluid turbulence and disrupting boundary layers.
Application: Primarily used in heater coils for efficient heat transfer in industrial heating applications including power plants and chemical processing.

Technical Specifications

Property	Base Tube (ASME SA335 P11 Alloy Steel)	Fin Material (Gr.11 Alloy Steel)
Outer Diameter (OD)	19.05 mm - 114.3 mm	Customizable based on design
Wall Thickness	1.2 mm - 10 mm	-
Fin Thickness	-	1.5 mm - 3.5 mm
Fin Height	-	20 mm - 50 mm
Fin Type	-	Serrated (HFW)
Fin Attachment	Welded or mechanically bonded to base tube	-

Chemical Composition

Element	ASME SA335 P11 (Base Tube)	Gr.11 Alloy Steel (Fin Material)
Carbon (C)	0.05% - 0.15%	0.05% - 0.15%
Manganese (Mn)	0.30% - 0.60%	0.30% - 0.60%
Phosphorus (P)	0.025% (max)	0.025% (max)
Sulfur (S)	0.025% (max)	0.025% (max)
Chromium (Cr)	1.00% - 2.50%	1.00% - 2.50%
Molybdenum (Mo)	0.44% - 0.65%	0.44% - 0.65%
Nickel (Ni)	0.30% (max)	0.30% (max)
Silicon (Si)	0.50% - 1.00%	0.50% - 1.00%

Mechanical Properties

Property	ASME SA335 P11 (Base Tube)	Gr.11 Alloy Steel (Fin Material)
Tensile Strength	415 - 550 MPa	450 - 550 MPa
Yield Strength	205 MPa (min)	220 MPa (min)
Elongation	≥ 30%	≥ 20%
Hardness	Brinell hardness: 160 - 190 HB	Brinell hardness: 170 - 210 HB

Advantages

High-Temperature Resistance: Designed to withstand extreme operating temperatures in industrial heater applications.
Enhanced Heat Transfer: Serrated fin design maximizes heat transfer surface area for optimal thermal efficiency.
Durability and Longevity: Combination of alloy steel and high-performance fins ensures mechanical strength and wear resistance.
Cost-Effective: Provides excellent performance in high-temperature environments while remaining economical compared to higher-alloy alternatives.

Applications

Heater Coils: Industrial heater coils in heat exchangers, furnace heating, and boiler systems.
Power Generation: Power plant applications requiring high-temperature resistance and efficient heat exchange.
Chemical Processing: Chemical reactors and cooling/heating systems in petrochemical and chemical industries.
Oil Refineries: Heat exchanger systems for improved thermal efficiency in crude oil distillation processes.
