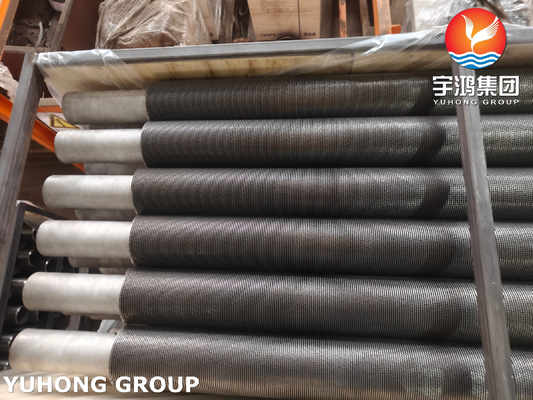

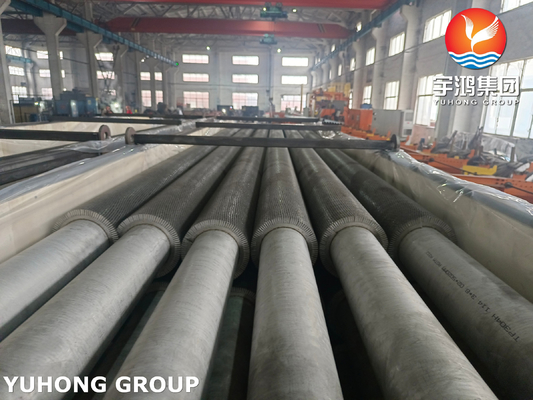

ASTM A312 TP304H Serrated Fin Tubes High Frequency Welding For Coil Cooler

Brand Name:	YUHONG
Model Number:	High Frequency Welding Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply - Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Fin Wall Thickness:

0.8-3mm

Base Tube Material:

TP304, TP316, TP321 TP347

Fin Pitch:

FPI: 3-25

Fin Material:

AISI 304,316,409,410,321,347

Fin Height:

5-30mm

Supply Ability:

10000 Tons/Month

Highlight:

High Frequency Welding Serrated Fin Tubes

Coil Cooler Serrated Fin Tubes

ASTM A312 Serrated Fin Tubes

Product Description

ASTM A312 TP304H Serrated Fin Tubes High Frequency Welding For Coil Cooler

Product Specifications

Attribute	Value
Fin Wall Thickness	0.8-3mm
Base Tube Material	TP304, TP316, TP321 TP347
Fin Pitch	FPI: 3-25
Fin Material	AISI 304,316,409,410,321,347
Fin Height	5-30mm

About Serrated Fin Tubes

Serrated finned tubes are efficient heat transfer elements widely used in industrial heat exchange equipment. Their unique serrated design enhances both heat transfer efficiency and anti-fouling performance.

Structural Features

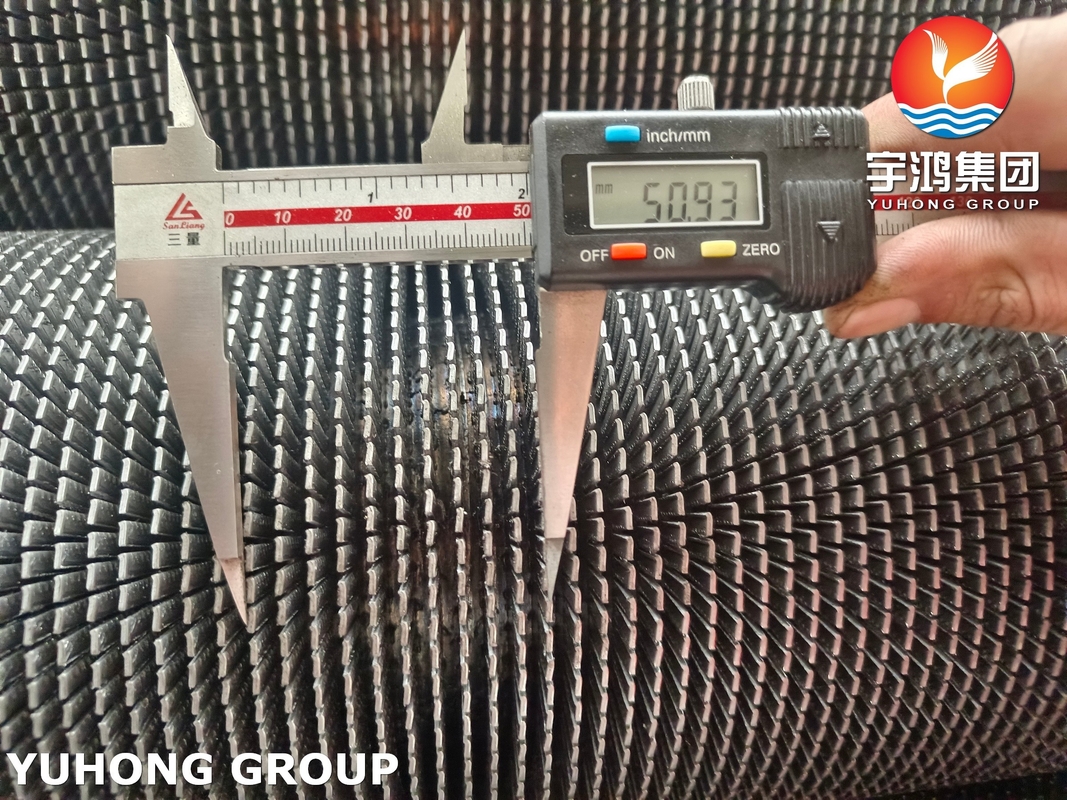

Dense arrangement of fins with spacing as small as 0.5mm
Serrated fin pattern creates intense fluid turbulence
Significantly increases heat transfer efficiency

Manufacturing Process

The manufacturing process involves high-frequency welding with local cutting of strip material before winding. During winding, cut parts separate to form the gear-shaped serration pattern, providing:

Simplified winding process with reduced deformation
Tight bonding and high strength
Excellent resistance to thermal and mechanical vibrations
Superior thermal expansion performance
Low flow loss and strong corrosion resistance

Key Advantages

High Heat Transfer Efficiency:

Serrated fins create turbulence for higher film heat transfer coefficient
Heat transfer coefficient of 30-50 kcal/m² for flue gas/water exchange
Increased contact area enhances heat transfer effect

Strong Anti-Fouling Performance:

Serrated design disrupts fluid boundary layer
Reduces ash accumulation and fouling
Improves long-term heat exchanger efficiency

Excellent Mechanical Performance:

High-frequency welding ensures strong fin-to-tube bond
High pressure resistance
Superior mechanical vibration resistance

Applications

Industrial Waste Heat Recovery
Air Conditioning and Refrigeration
Energy Utilization Systems

Chemical Composition

C	Mn	P	S	Si	Cr	Ni
0.04 - 0.10	≤ 2.00	≤ 0.045	≤ 0.030	≤ 1.00	18.0 - 20.0	8.00 - 11.00

Mechanical Properties

Tensile Strength (minimum)	515 MPa (75 ksi)
Yield Strength (0.2% Proof, minimum)	205 MPa (30 ksi)
Elongation (minimum, % in 50mm)	40%
Rockwell B (HR B) maximum	92
Brinell (HB) maximum	201
