A106 Gr.B ASTM Serrated Fin Tube Pipe For Superheater And Heat Recovery
  • name
  • name
  • name

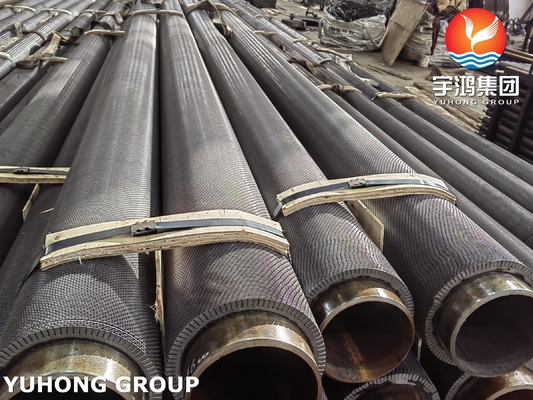

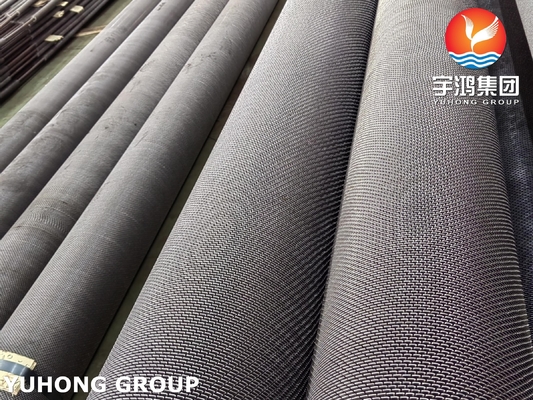

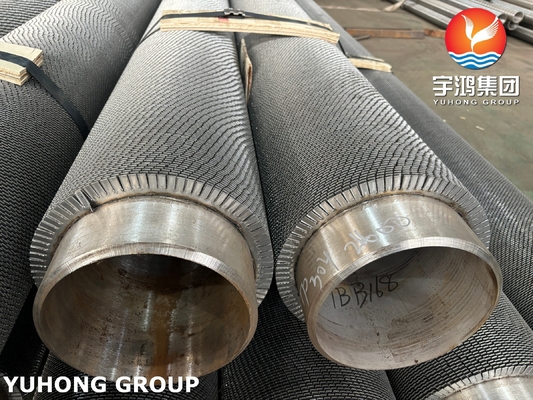

A106 Gr.B ASTM Serrated Fin Tube Pipe For Superheater And Heat Recovery

Brand Name: YUHONG GROUP
MOQ: 1PC
Price: 1--10000 USD
Packaging Details: IRON FRAME CASE WITH PLASTIC CAP
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Fin Wall Thickness:
0.8-3mm
Certification:
ASME, U STAMP, API,ASME, ABS, LR, DNV, GL , BV, KR, TS, CCS
Base Tube Material:
TP304, TP316, TP321 TP347
Fin Pitch:
FPI: 3-25
Fin Material:
AISI 304,316,409,410,321,347
Fin Height:
5-30mm
Length:
Max 43M/PC
Supply Ability:
10000 tons/month
Highlight:

Superheater fin tube pipe

,

Heat Recovery fin tube pipe

,

ASTM A106 welded fin tubes

Product Description
A106 Gr.B ASTM Serrated Fin Tube Pipe For Superheater And Heat Recovery
Product Specifications
Attribute Value
Fin Wall thickness 0.8-3mm
Certification ASME, U STAMP, API, ASME, ABS, LR, DNV, GL, BV, KR, TS, CCS
Base Tube Material TP304, TP316, TP321 TP347
Fin pitch FPI: 3-25
Fin Material AISI 304,316,409,410,321,347
Fin height 5-30mm
Length Max 43M/PC
ASTM A106 Gr.B Base Tube Composition
  • Carbon, max: 0.30
  • Manganese: 0.29-1.06
  • Phosphorus, max: 0.035
  • Sulfur, max: 0.035
  • Silicon, min: 0.10
  • Chromium, max: 0.40
  • Copper, max: 0.40
  • Molybdenum, max: 0.15
  • Nickel, max: 0.40
  • Vanadium, max: 0.08
Applications
  • Heat Exchangers: Ideal for shell-and-tube configurations where efficient heat transfer is critical
  • Cooling Systems: Enhances cooling efficiency in chillers and condensers
  • HVAC Systems: Improves thermal regulation and energy efficiency
  • Industrial Processes: Essential for petrochemical, power generation, and manufacturing applications
  • Refrigeration: Boosts heat exchange performance for energy savings
Key Advantages
  • Increased Surface Area: Serrated design maximizes heat transfer efficiency
  • Improved Fluid Dynamics: Promotes turbulent flow for enhanced heat transfer rates
  • Material Efficiency: Cost-effective carbon steel solution
  • Corrosion Resistance: Suitable for various environments when treated
  • Energy Savings: Reduces consumption in heating and cooling systems
Our serrated fin tubes represent the largest size currently producible in our facility. The innovative serrated fin design significantly increases the pipe's surface area, enhancing heat exchange capacity with surrounding media (air or liquid). The unique fin configuration creates turbulent flow patterns that optimize thermal transfer, making these tubes ideal for applications in air conditioning, cooling systems, heaters, and other equipment requiring superior heat exchange performance.
A106 Gr.B ASTM Serrated Fin Tube Pipe For Superheater And Heat Recovery 0
Tags:

finned pipe

fin tube pipe

finned heating pipe
