ASTM A213 TP316L Serrated Finned Tube For Petrochemical And Chemical Processing

Brand Name:	YUHONG
Model Number:	Serrated Finned tube
MOQ:	1PC
Price:	10-1000 USD/PC
Packaging Details:	STEEL FRAME CASE
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China, Korea

Certification:

ASME, ASTM, ABS, DNV-GL, LR, BV, CCS, KR, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Standard:

ASTM A213

Fin Materials:

TP316L

Bare Tube Diameter:

1" - 8.625"

Fin Pitch:

1 Fin/in - 7 Fin/in

Fin Height:

3/8" - 1-1/2"

Fin Thick:

0.035" - 0.075"

Supply Ability:

10000 TONS PER MONTH

Highlight:

Petrochemical Serrated Finned tube

ASTM A213 TP316L Serrated Finned tube

Chemical Processing Serrated Finned tube

Product Description

ASTM A213 TP316L Serrated Finned Tube For Petrochemical And Chemical Processing

Product Specifications

Attribute	Value
Base Tube Standard	ASTM A213
Fin Materials	TP316L
Bare Tube Diameter	1" - 8.625"
Fin Pitch	1 fin/in - 7 fin/in
Fin Height	3/8" - 1-1/2"
Fin Thick	0.035" - 0.075"

Product Overview

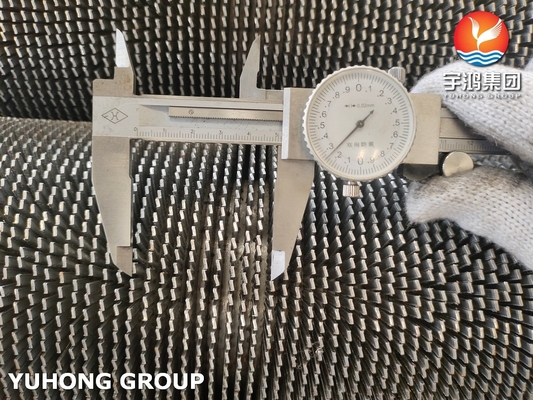

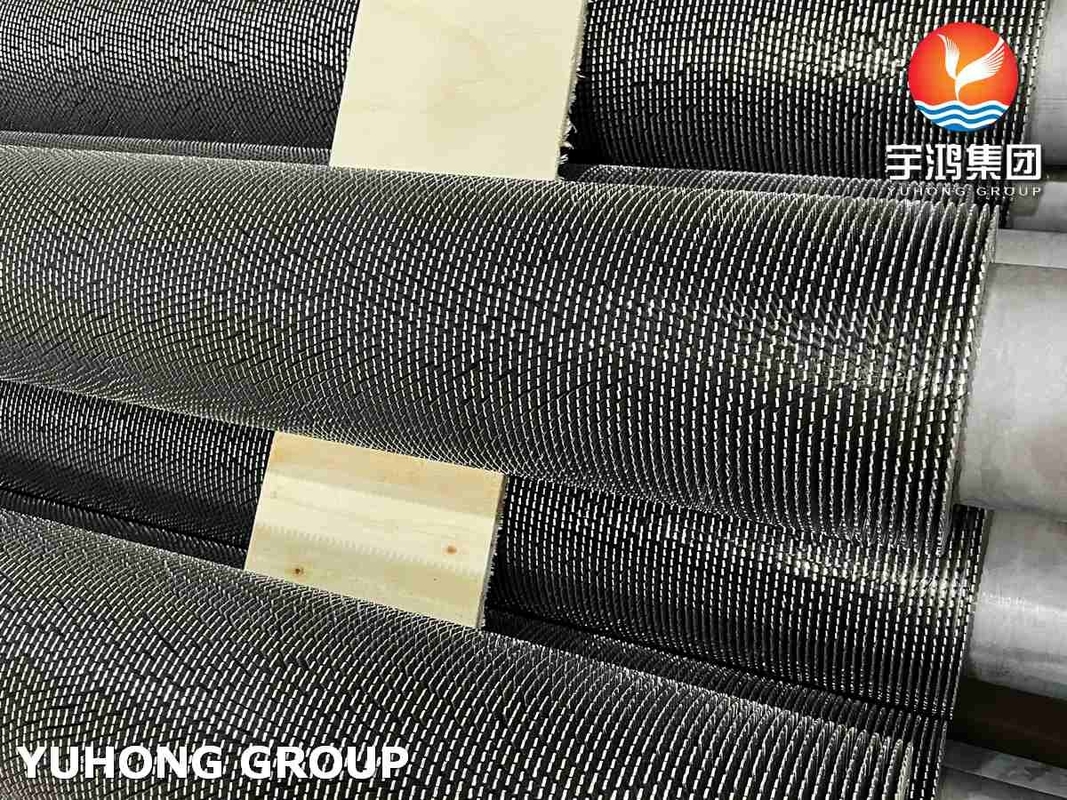

Serrated finned tubes are enhanced heat transfer tubes featuring fins with serrated (notched) edges. These helically wound fins are tightly bonded to the tube surface to maximize heat exchange surface area and improve thermal efficiency.

ASTM A213 TP316L serrated finned tubes offer exceptional thermal performance, corrosion resistance, and durability for demanding industrial applications in harsh environments.

Material Properties

ASTM A213 TP316L is a low-carbon variant of 316 stainless steel. The reduced carbon content ("L" designation) enhances resistance to intergranular corrosion, particularly after welding. This austenitic stainless steel maintains excellent performance in high-temperature and corrosive conditions.

Key Advantages

Superior Corrosion Resistance: Excellent protection against oxidation, chloride-induced corrosion, and acidic environments, especially in marine and chemical processing applications.
Enhanced Thermal Efficiency: Serrated fins increase heat transfer surface area and promote fluid turbulence for significantly improved thermal performance compared to plain tubes.
High Durability: TP316L material provides exceptional tensile strength and stability in high-pressure, high-temperature operating conditions.
Improved Weldability: Low carbon content minimizes intergranular corrosion risks post-welding, ensuring extended service life.

Chemical Composition

Element	C	Cr	Ni	Mo	Mn
Percentage (%)	Max 0.03	16.0-18.0	10.0-14.0	2.0-3.0	Max 2.0

Mechanical Properties

Property	Tensile Strength	Yield Strength	Elongation	Hardness (Brinell)
Value	Min 485 MPa (70 ksi)	Min 170 MPa (25 ksi)	Min 35%	Max 217 HB

Industrial Applications

Petrochemical & Chemical Processing: Heat exchangers, condensers, and reboilers handling corrosive fluids and gases
Power Generation: Boiler and economizer tubes in thermal power plants
Oil & Gas Industry: Heat recovery systems, gas coolers, and heaters for offshore/onshore operations
HVAC Systems: Air-cooled heat exchangers and refrigeration systems
Marine Applications: Shipbuilding heat exchangers and desalination systems

Specific uses include waste heat recovery systems, industrial boiler air preheaters, and cooling/heating systems in corrosive environments.
