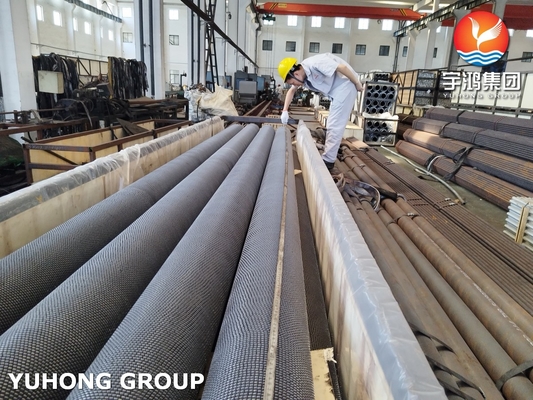

Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace

Brand Name:	Yuhong
Model Number:	ASTM A312 TP304H
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASTM A312 TP304H

Fin Type:

High Frequency Welding, Serrated

Fin Material:

SS304, Stainless Steel

Base Tube Test:

HT, ET

Fin Tube Test:

Hammer Test

Application:

Furnace, Oil And Gas

Highlight:

ASTM A192 Fin Tube

High Frequency Welding Fin Tube

Serrated Fin Tube

Product Description

Stainless Steel HFW Serrated Fin Tube ASTM A312 TP304H With SS304 Fin For Furnace

Product Specifications

Material	ASTM A312 TP304H
Fin Type	High Frequency Welding, Serrated
Fin Material	SS304, Stainless Steel
Base Tube Test	HT, ET
Fin Tube Test	Hammer Test
Application	Furnace, Oil and Gas

Key Features

Base Tube Material: ASTM A312 TP304H Stainless Steel, offering excellent high-temperature strength and corrosion resistance.
Fin Material: SS304 Stainless Steel, known for its durability and thermal efficiency.
Fin Type: Serrated Fins, providing increased heat transfer surface area and reduced airflow resistance.
Application: Designed for furnaces, ensuring efficient heat transfer under extreme conditions.

Technical Specifications

Property	Base Tube (ASTM A312 TP304H)	Fin Material (SS304)
Outer Diameter (OD)	19.05 mm - 50.8 mm	Customizable based on design
Wall Thickness	2.0 mm - 5.0 mm	-
Fin Thickness	-	0.3 mm - 0.5 mm
Fin Pitch	-	5 - 10 fins per inch
Fin Height	-	10 mm - 25 mm
Fin Attachment	High-Frequency Welded

Chemical Composition

Element	ASTM A312 TP304H (Base Tube)	SS304 (Fin Material)
Carbon (C)	≤ 0.04%	≤ 0.08%
Manganese (Mn)	≤ 2.00%	≤ 2.00%
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.030%	≤ 0.030%
Silicon (Si)	≤ 1.00%	≤ 1.00%
Chromium (Cr)	18.00 - 20.00%	18.00 - 20.00%
Nickel (Ni)	8.00 - 11.00%	8.00 - 10.50%

Mechanical Properties

Property	ASTM A312 TP304H (Base Tube)	SS304 (Fin Material)
Tensile Strength	≥ 515 MPa	≥ 515 MPa
Yield Strength	≥ 205 MPa	≥ 205 MPa
Elongation	≥ 35%	≥ 40%

Advantages

High Thermal Efficiency: Serrated fins maximize the heat transfer surface area for efficient thermal performance.
Corrosion Resistance: Both TP304H and SS304 resist oxidation and corrosion at elevated temperatures.
Durability: HFW welding ensures strong fin attachment, minimizing damage from thermal cycling and vibration.
Versatile Performance: Suitable for high-temperature applications, including industrial furnaces and heaters.

Applications

Furnaces: Optimized for high-temperature heat exchange.
Power Plants: Efficient heat recovery and transfer systems.
Chemical Processing: Heat exchangers in corrosive and high-temperature environments.
