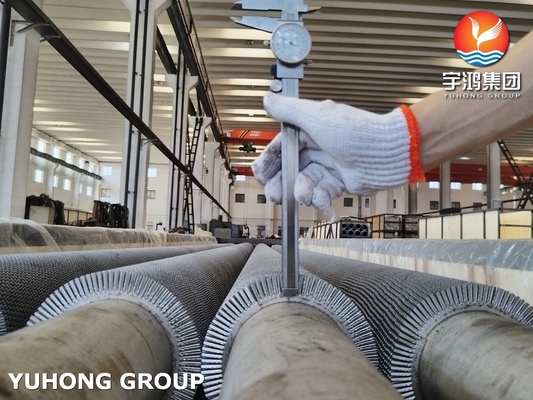

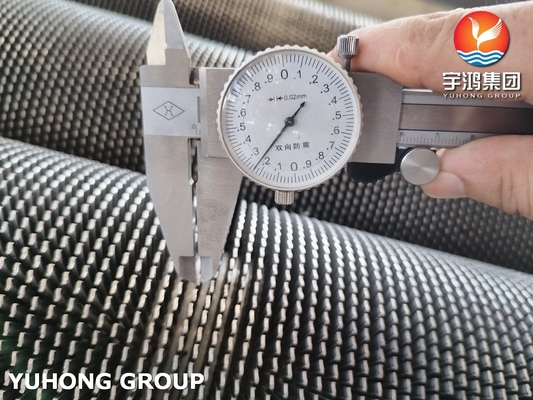

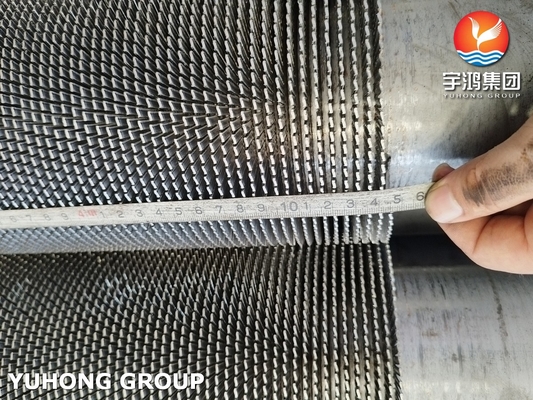

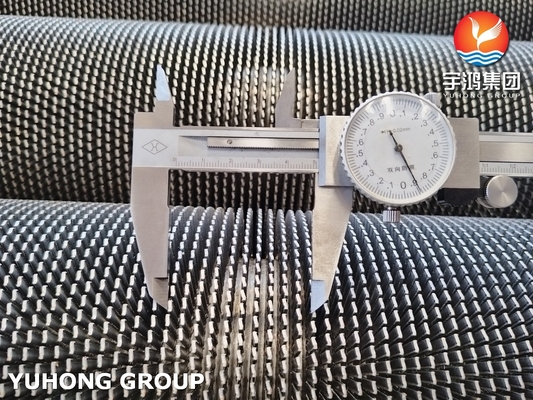

High Frequency Welding Fin Tube Serrated Type ASTM A312 TP304H For Power Plant Furnace

Brand Name:	YUHONG
Model Number:	Serrated, Helical Serrated
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

TP304H

Base Tube Material Standard:

ASME SA312 , ASTM A312

Type:

Serrated , Helical Serrated

Application:

Furnace Tube, Tube Coil , Radiate Tube , Convenction Tube , Fired Heater

Fin Type:

Serrated Fins

Fin Material:

Carbon Steel , Stainless Steel , Alloy Steel

Supply Ability:

10000 Tons/Month

Highlight:

Power Plant Furnace Welding Fin Tube

Serrated Type Welding Fin Tube

ASTM A312 TP304H Welding Fin Tube

Product Description

High Frequency Welding Fin Tube Serrated Type ASTM A312 TP304H For Power Plant Furnace

Product Specifications

Attribute	Value
Base Tube Material Grade	TP304H
Base Tube Material Standard	ASME SA312, ASTM A312
Type	Serrated, Helical Serrated
Application	Furnace Tube, Tube Coil, Radiate Tube, Convenction Tube, Fired Heater
Fin Type	Serrated Fins
Fin Material	Carbon Steel, Stainless Steel, Alloy Steel

Product Description

The ASTM A312 TP304H Serrated Fin Tube is a high-performance stainless steel tube designed for demanding heat transfer applications. The TP304H grade features enhanced carbon content for superior high-temperature strength while maintaining excellent corrosion resistance.

This serrated fin tube offers:

Improved strength at elevated temperatures
Exceptional resistance to oxidation and corrosion
Long-lasting performance in extreme environments
Enhanced system efficiency and reliability

Chemical Composition

Grade	Cr	Ni	C	Mn	Si	P	S
TP304H	18.0-20.0%	8.0-11.0%	0.04-0.10%	2.0% max	1.0% max	0.045% max	0.030% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP304H	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Industrial Applications

Power Generation: Essential for boilers and superheaters, enhancing heat transfer efficiency while withstanding high steam temperatures in power plants.

Petrochemical Industry: Used in refineries for catalytic reforming and chemical processing, providing durability against corrosive chemicals and high-temperature fluids.

Oil and Gas: Ideal for offshore platform heat exchangers and refinery furnaces, offering corrosion resistance and reliable performance under pressure.

Industrial Boilers: Used in economizers for heat recovery and steam distribution systems, improving efficiency and maintaining consistent operation.
