2mm Solid Fin Tube High Frequency Welding Type ASTM A335 P22 With 11-13CR Strip

Brand Name:	Yuhong
Model Number:	ASTM A335 P22
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASTM A335 P22

Fin Material:

11-13CR

Fin Height:

25.4mm

Fin Thickness:

Application:

Furnace

Highlight:

Solid fin tube

A335 fin tube

P22 tube fins

Product Description

2mm Solid Fin Tube High Frequency Welding Type ASTM A335 P22 With 11-13CR Strip

Product Specifications

Attribute	Value
Material	ASTM A335 P22
Fin Material	11-13CR
Fin Height	25.4mm
Fin Thickness	2mm
FPI	9-13
Application	Furnace

Product Overview

The Solid Fin Tube High Frequency Welding Type ASTM A335 P22 with 11-13Cr Strip is engineered for furnace applications requiring optimal heat transfer, durability, and resistance to high temperatures and corrosion. The base tube utilizes ASTM A335 P22 alloy steel for superior strength and high-temperature creep resistance, while the 11-13Cr strip enhances heat transfer efficiency through high-frequency welding.

Key Features

Base Tube Material: ASTM A335 P22 Alloy Steel

Chromium-molybdenum alloy steel offering exceptional strength at elevated temperatures
Superior resistance to oxidation and creep in high-temperature environments
Ideal for furnaces, boilers, and power plant applications

Fin Type: Solid Fin Tube with High-Frequency Welding

Solid fin strip (11-13% Chromium) bonded to base tube for maximum heat transfer surface
High-frequency welding ensures durable attachment with minimal risk of detachment

Fin Material: 11-13% Chromium Strip

Enhanced corrosion resistance for high-temperature environments
Excellent thermal stability and oxidation resistance

Application: Furnace, Heat Exchanger

Optimized for furnaces, boilers, and industrial cooling systems
Reliable performance in high-temperature conditions

Material Composition

Base Tube: ASTM A335 P22 Alloy Steel

Element	Composition
Carbon (C)	0.05% - 0.15%
Manganese (Mn)	0.30% - 0.60%
Chromium (Cr)	1.90% - 2.60%
Molybdenum (Mo)	0.90% - 1.20%
Phosphorus (P)	≤ 0.025%
Sulfur (S)	≤ 0.025%

Fin Material: 11-13% Chromium Strip

Element	Composition
Chromium (Cr)	11% - 13%
Iron (Fe)	Balance
Carbon (C)	≤ 0.10%
Manganese (Mn)	≤ 1.00%

Mechanical Properties

Base Tube: ASTM A335 P22 Alloy Steel

Property	Value
Tensile Strength	415 MPa (min)
Yield Strength	205 MPa (min)
Elongation	≥ 30%
Hardness	170 - 210 HB

Fin Material: 11-13% Chromium Strip

Property	Value
Tensile Strength	450 - 600 MPa
Yield Strength	≥ 250 MPa
Elongation	≥ 20%

Product Advantages

High Thermal Efficiency: Solid fin design maximizes heat transfer surface area
Corrosion Resistance: 11-13% chromium content protects against oxidation
High-Temperature Durability: ASTM A335 P22 base provides excellent creep resistance
Extended Service Life: High-frequency welding ensures durable fin attachment
Cost-Effective: Superior performance at competitive pricing

Typical Applications

Furnace tubes for industrial heating systems
Heat exchanger tubes in boilers and condensers
Industrial cooling systems requiring high-temperature resistance
Power plant heat transfer components

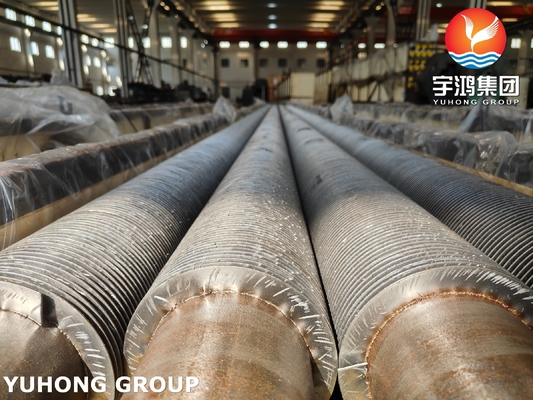

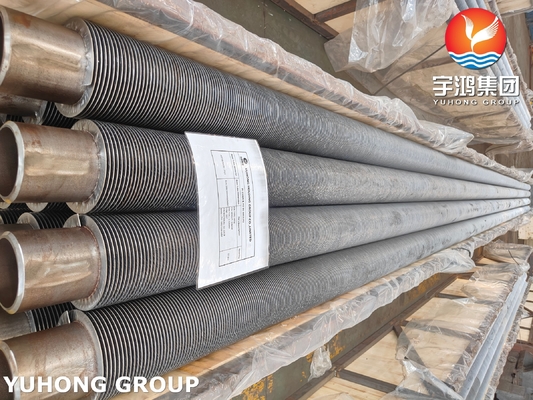

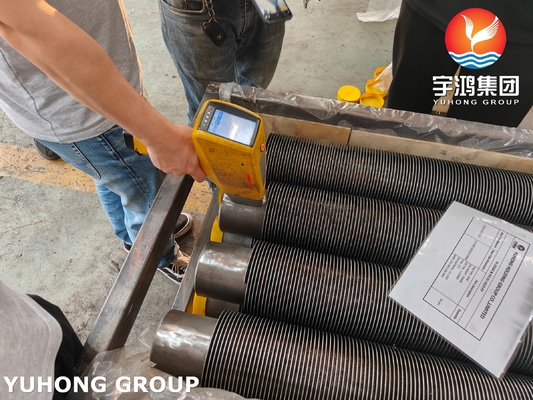

Product Image

Summary

The Solid Fin Tube High Frequency Welding Type ASTM A335 P22 with 11-13Cr Strip delivers exceptional performance for furnace tubes and heat exchangers in demanding high-temperature environments. Combining thermal efficiency, durability, and corrosion resistance, this solution provides reliable heat transfer for industrial applications.
