Heat Exchanger ASTM A335 P22 HFW Solid Finned Pipes With 11-13 Cr Fins

Brand Name:	YuHong
Model Number:	A335 P22 HFW Solid Finned Tube with 11-13 Cr Fins
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Base Pipe Specification:

ASTM A335

Base Pipe Material:

Fin Type:

Spiral High Frequency Welding Finned Tube/Solid Finned Tube

Fin Material:

11-13 Cr

Base Tube/Pipe OD:

16-219 Mm

Fin Pitch:

3-25 Mm

Fin Height:

5-30 Mm

Fin Thickness:

0.8-3 Mm

Pipe Length:

Customsized

Application:

Power Plant -Air Preheaters, Boiler; Refrigeration And Air Conditioning Systems: Heat Exchangers

Supply Ability:

According to Clients' requirements

Highlight:

A335 fin and tube

P22 fin and tube

Heat Exchanger finned pipes

Product Description

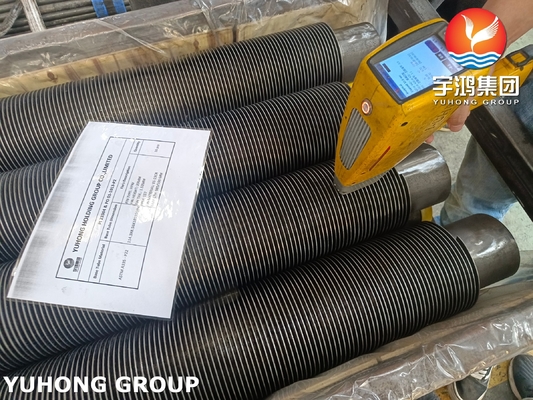

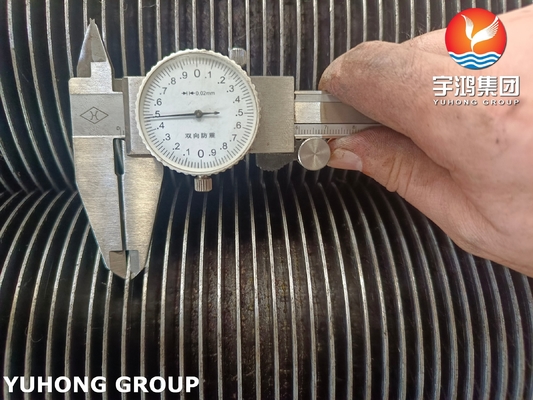

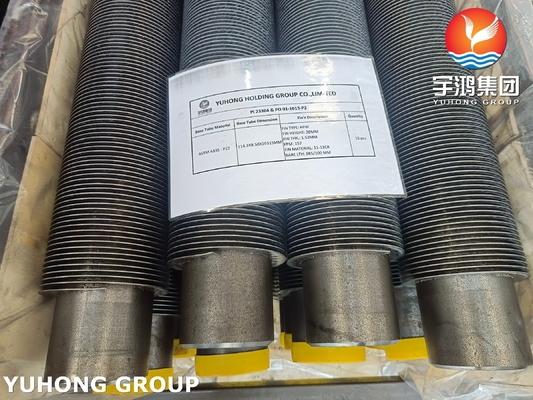

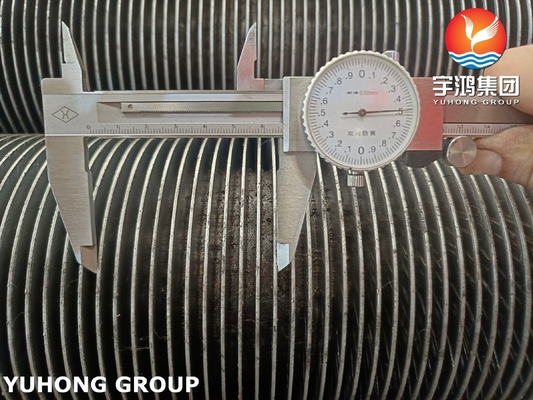

Heat Exchanger ASTM A335 P22 HFW Solid Finned Pipes With 11-13 Cr Fins

Product Specifications

Attribute	Value
Base Pipe Specification	ASTM A335
Base Pipe Material	P22
Fin Type	Spiral High Frequency Welding Finned Tube/Solid Finned Tube
Fin Material	11-13 Cr
Base Tube/Pipe OD	16-219 mm
Fin Pitch	3-25 mm
Fin Height	5-30 mm
Fin Thickness	0.8-3 mm
Pipe Length	Custom-sized
Application	Power Plant - Air preheaters, Boiler; Refrigeration and Air Conditioning systems: Heat exchangers

Product Overview

The ASTM A335 P22 HFW Solid Finned Tube with 11-13 Cr Fins is engineered for high-temperature and high-pressure applications in power generation, petrochemical, and oil and gas industries.

Key Features

High-Frequency Welded (HFW) base tube for strong, seamless-like performance
Solid fins integrally bonded for maximum durability and heat transfer
11-13% Chromium fins for superior oxidation and corrosion resistance
Optimized for extreme temperature and pressure conditions

Technical Details

HFW (High-Frequency Welded) Construction

The base tube is manufactured using high-frequency electrical currents to create a strong weld with excellent mechanical properties, dimensional accuracy, and cost efficiency.

Solid Finned Tube Design

The integrally bonded fins increase surface area for superior heat transfer while maintaining structural integrity under mechanical stress.

11-13 Cr Fin Composition

The high chromium content provides exceptional resistance to oxidation and corrosion in high-temperature environments, extending service life.

Material Composition

Element	Composition (% by weight)
Carbon (C)	0.05 - 0.15
Manganese (Mn)	0.30 - 0.60
Phosphorus (P)	≤ 0.025
Sulfur (S)	≤ 0.025
Silicon (Si)	0.50 max
Chromium (Cr)	1.90 - 2.60
Molybdenum (Mo)	0.87 - 1.13

Mechanical Properties

Property	Value
Tensile Strength	≥ 415 MPa (60,000 psi)
Yield Strength	≥ 205 MPa (30,000 psi)
Elongation (in 50 mm)	≥ 30%
Hardness	≤ 250 HBW (Brinell Hardness)

Industrial Applications

Power Plants: Boilers, superheaters, and economizers
Oil and Gas: Heat exchangers for refining and processing
Chemical Plants: Heat recovery systems and process heating
Industrial Cooling: Air-cooled heat exchangers for gases and liquids
