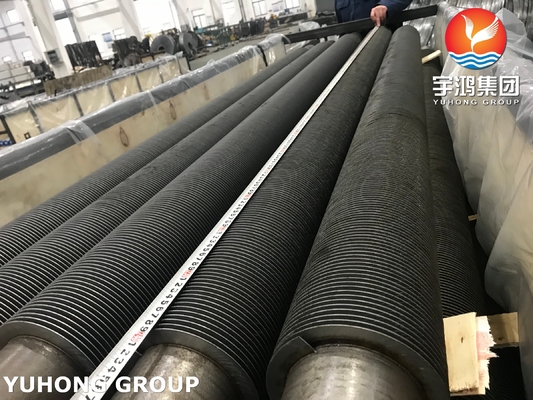

A213 T9 High Frequency Welding Solid Finned Tube ASTM With AS Fins For Heat Exchanger

Brand Name:	YuHong
Model Number:	ASTM A213 T9 HFW Solid Finned Tube with 11-13 Cr Fins
MOQ:	200-500KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Base Pipe Specification:

ASTM A213

Base Pipe Material:

Fin Type:

Spiral High Frequency Welding Finned Tube/Solid Finned Tube

Fin Material:

11-13 Cr

Base Tube/Pipe OD:

16-219 Mm

Fin Pitch:

3-25 Mm

Fin Height:

5-30 Mm

Fin Thickness:

0.8-3 Mm

Pipe Length:

Customsized

Application:

Power Plant -Air Preheaters, Boiler; Refrigeration And Air Conditioning Systems: Heat Exchangers

Supply Ability:

According to Clients' requirements

Highlight:

A213 tube finning

T9 tube finning

Heat Exchanger finned air cooler

Product Description

A213 T9 High Frequency Welding Solid Finned Tube ASTM With AS Fins For Heat Exchanger

Product Specifications

Attribute	Value
Base Pipe Specification	ASTM A213
Base Pipe Material	T9
Fin Type	Spiral High Frequency Welding Finned Tube/Solid Finned Tube
Fin Material	11-13 Cr
Base Tube/Pipe OD	16-219 mm
Fin Pitch	3-25 mm
Fin Height	5-30 mm
Fin Thickness	0.8-3 mm
Pipe Length	Custom-sized
Application	Power Plant - Air preheaters, Boiler; Refrigeration and Air Conditioning systems: Heat exchangers

Product Description

The ASTM A213 T9 HFW Solid Finned Tube with 11-13 Cr Fins is a specialized heat exchanger tube designed for high-temperature and high-pressure industrial applications.

Key Components and Characteristics

ASTM A213 T9: Chromium-molybdenum alloy steel (9% chromium, 1% molybdenum) offering high-temperature strength and corrosion resistance
HFW (High-Frequency Welded): Manufacturing process creating strong, durable welds suitable for high-pressure applications
Solid Finned Tube: Fins integrally attached to enhance heat transfer efficiency through increased surface area
11-13 Cr Fins: Chromium-rich fins providing excellent corrosion and oxidation resistance in aggressive environments

Key Features

Exceptional high-temperature strength for demanding industrial environments
Superior corrosion resistance from chromium content in both tube and fins
Enhanced heat transfer efficiency through solid fin design
Durable construction with reliable HFW welded structure

Material Specifications

Chemical Composition of ASTM A213 T9

Element	Composition (%)
Carbon (C)	0.15 max
Manganese (Mn)	0.30-0.60
Phosphorus (P)	0.025 max
Sulfur (S)	0.025 max
Silicon (Si)	0.50-1.00
Chromium (Cr)	8.00-10.00
Molybdenum (Mo)	0.90-1.10

Mechanical Properties of ASTM A213 T9

Property	Value
Tensile Strength	≥ 415 MPa (60,000 psi)
Yield Strength	≥ 205 MPa (30,000 psi)
Elongation	≥ 30% (in 2 inches or 50 mm)
Hardness	≤ 179 HBW (Brinell Hardness)

Industrial Applications

Power Generation

Used in boilers, superheaters, and heat recovery systems in power plants for efficient heat transfer from combustion gases to water/steam.

Petrochemical and Refining Industries

Ideal for process heat exchangers and furnace/reformer tubes in refineries and chemical plants handling corrosive gases at high temperatures.

Chemical Processing

Suitable for corrosive gas heat exchangers and high-temperature reactors where durability and heat transfer efficiency are critical.

Air Preheaters

Used in economizers and air preheaters to improve fuel efficiency by preheating combustion air in industrial boilers and furnaces.

Waste Incineration

Employed in waste heat boilers to recover heat from flue gases, with corrosion-resistant fins handling acidic exhaust streams.

Steel and Metal Processing

Used in annealing furnaces and heat treatment equipment where high-temperature heat transfer is required.

Oil and Gas Industry

Applied in gas coolers/heaters and exhaust gas heat exchangers in processing plants and turbine systems.

Renewable Energy

Utilized in biomass boilers to handle high-temperature, corrosive flue gases from biomass fuel combustion.
