| Brand Name: | YUHONG |
| Model Number: | ASTM A213 TP347H |
| MOQ: | Depend the size of finned tubes, 50-100PC |
| Price: | 30-10000 USD |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 tons/month |
| Attribute | Value |
|---|---|
| Product | Fin Tubes or Finned Tube |
| Type | High Frequency Welding / Helical Solid Fin Tubes |
| Base Tubes Standard | ASTM A213 |
| Material | TP347H Base pipes and 5052 Aluminum Fins |
| Length | According to clients' need |
| Size and details | According to clients' need |
| Use | Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc |
| Packing | Ply-wooden Case With Iron Frame |

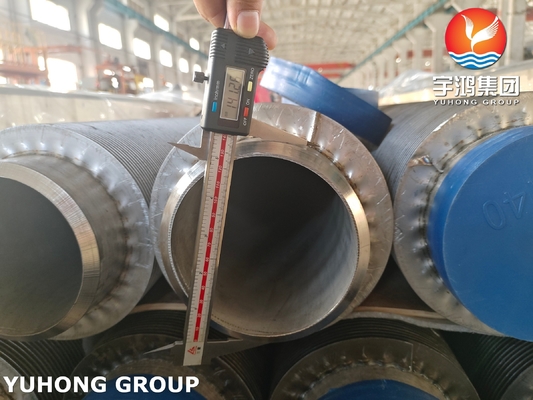

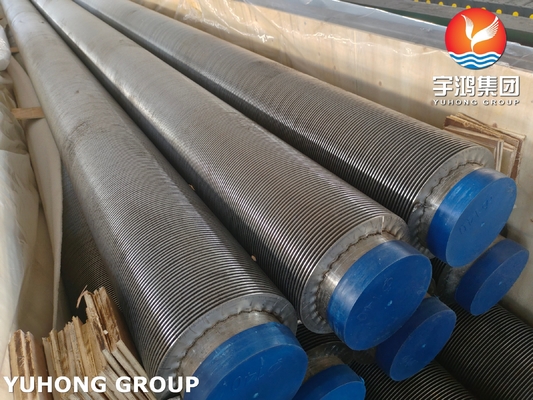

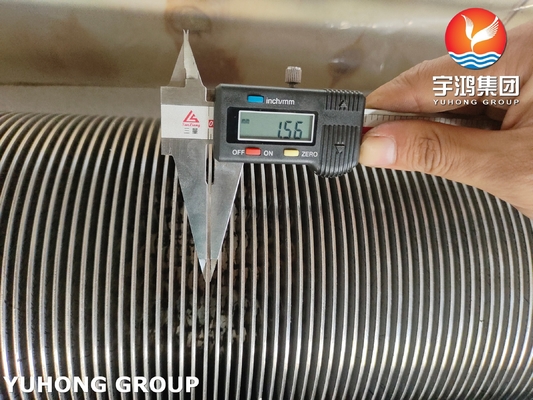

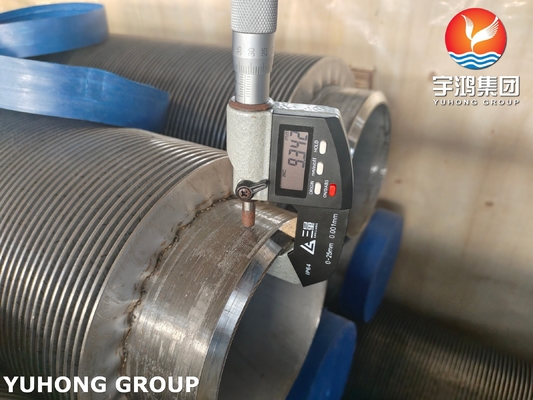

Helical Solid Fin Tubes ASTM A213 TP347H Stainless Steel Tubes With 5052 Aluminum Fins
Helical solid fin tubes, also known as high frequency welding fin tubes, are specialized tubes that are manufactured using a high frequency welding process. This technique involves using high-frequency electrical currents to heat the edges of the metal, allowing them to be fused together without the need for additional filler materials.
This specification covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc. Grades containing the letter H in their designation have requirements different from those of similar grades not containing the letter H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements.
Manufacture and Condition: Tubes shall be made by the seamless process and shall be either hot finished or cold finished, as specified. Grade TP347HFG shall be cold finished.
Heat treatment: cold worked: 2000°F [1100°C]; hot rolled: 1925°F [1050°C]
| Grade | C | Mn | P | S | Si | Cr | Ni | Nb |
|---|---|---|---|---|---|---|---|---|
| TP347H | 0.04-0.10 | 2.00 | 0.045 | 0.030 | 1.00 | 17.0-19.0 | 9.0-13.0 | 8×C-1.10 |
| Grade | Tensile Strength, min | Yield Strength (0.2% Offset, min) |
|---|---|---|
| TP347H | 75ksi (515 MPa) | 30ksi (205 MPa) |
| Elongation min. | Hardness, max | |
| 35% | 192 HBW / 200HV | Rockwell: 90 HRB |
AL5052 is an aluminium-magnesium alloy, primarily alloyed with magnesium and chromium. 5052 is not a heat treatable aluminum alloy, but can be hardened through cold working.
The exceptional corrosion resistance of 5052 alloy against seawater and salt spray makes it a primary candidate for the failure-sensitive large marine structures, like tanks of liquefied natural gas tankers.
Generally applicable to power stations or large high-temperature equipment in the oil industry:
| Type | Description | Base tube O.D. (mm) | Fin pitch | Fin height | Fin thick |
|---|---|---|---|---|---|
| Embedded | G-type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube / T-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube / corrugated tube | 16-51 | 8.0~30 | <2.5 | ~0.3 | |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 |
