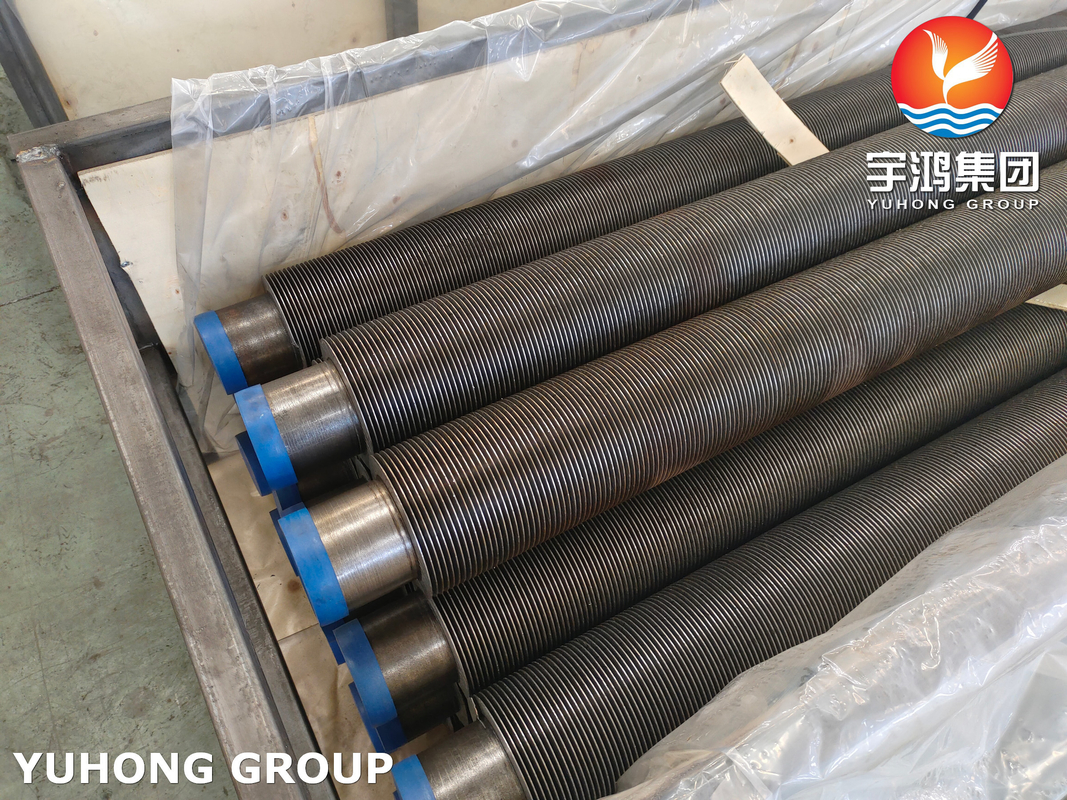

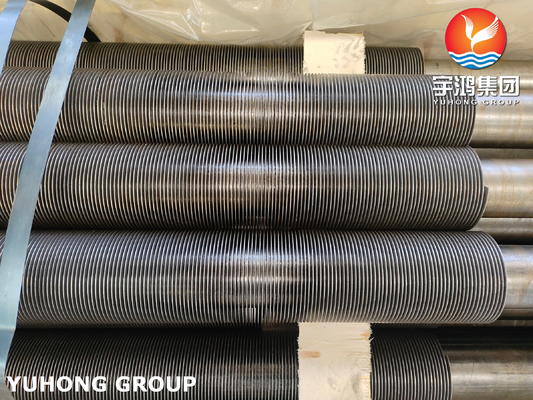

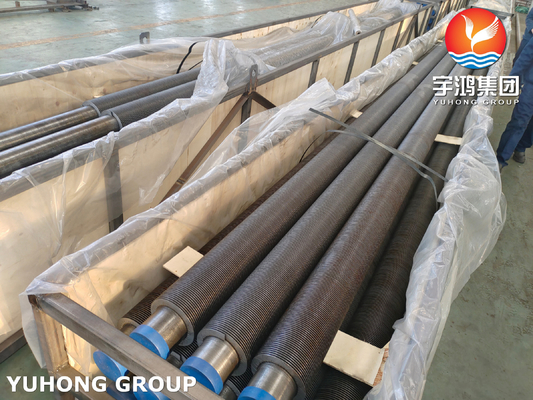

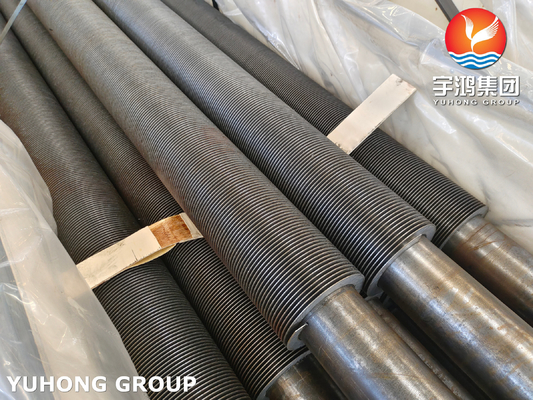

Carbon Steel High Frequency Welding Helical Solid Finned Tubes For Furnace

Brand Name:	YUHONG
Model Number:	ASME SA106 GR.B, HFW
MOQ:	100 KGS
Price:	Negotiate
Packaging Details:	Plywooden case with Iron Frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Name:

Finned Tube

Type:

High Frequency Welded Finned Tube

Application:

Heater Parts, Refrigeration Parts, Fluid Cooling

Dimensions:

88.9mm, 114.3mm, 168.3mm, Etc.

Length:

1-30000mm

Fin Height:

4-17mm

Tube Material:

Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc

Fin Material:

Carbon Steel, Stainless Steel And Alloy Steel Etc

Warranty:

6 Months

Welding Area:

According To Actual Demand

Supply Ability:

4150 Ton Per Month

Highlight:

Carbon Steel Spirally Welded Finned Tube

Furnace Spirally Welded Finned Tube

Product Description

Carbon Steel High Frequency Welding Helical Solid Finned Tubes For Furnace

Product Specifications

Attribute	Value
Product name	Finned Tube
Type	High Frequency Welded Finned Tube
Application	Heater Parts, Refrigeration Parts, Fluid Cooling
Dimensions	88.9mm, 114.3mm, 168.3mm, etc.
Length	1-30000mm
Fin height	4-17mm
Tube material	Carbon Steel, Stainless Steel, Alloy Steel, Copper Etc
Fin material	Carbon Steel, Stainless Steel And Alloy Steel Etc
Warranty	6 Months
Welding area	According to actual demand

Base Material Options

Carbon Steel: ASTM A106/A179/A192
Low-alloy Steel: ASTM A213 T5/T9/T11/T22, ASTM A335 P5/P9/P11/P22
Stainless Steel: ASTM A213 TP304/TP316L/TP321, ASTM A312 TP304/TP316L/TP321
Custom materials available upon request

Fin Material Specifications

Material: Carbon steel, aluminum, stainless steel
Fin Height: 8-25mm
Fin Thickness: 0.8-1.2mm
Fin Density: 24-156 FPI (fins per inch)
Fin Type: Solid, Serrated, Segmented

Mechanical Properties

Tensile Strength: ≥415 MPa
Yield Strength: ≥235 MPa
Elongation: ≥30%
Hardness: ≤150 HB
Fin-to-tube bond strength: ≥45 N/mm²

Manufacturing Process

High-frequency welding technology (450kHz)
Automated fin forming and welding
Advanced quality control systems
100% helium leak testing
NDT testing available
Hydrostatic pressure testing
X-ray inspection capability

Surface Treatment Options

Hot-dip galvanizing
Anti-corrosion coating
Heat treatment
Pickling and passivation
Custom surface treatments

Dimensional Range

Base Tube OD: 19-114mm
Wall Thickness: 2.0-11mm
Fin OD: 32-168mm
Standard Length: 3-12m

Applications

Power Generation Plants
Chemical Processing
Oil Refineries
HVAC Systems
Industrial Heat Exchangers
Waste Heat Recovery
Air Coolers
Economizers
Process Cooling

Key Features and Benefits

Superior heat transfer efficiency
Excellent mechanical bonding strength
Uniform fin spacing
Extended service life
Corrosion resistance
Cost-effective solution
Energy-saving design
Easy maintenance
Customizable specifications

Quality Assurance

ISO 9001:2015 certified
ASME U-Stamp certification
PED certification
ISO 14001 environmental management
100% quality inspection
Advanced testing equipment
Professional QC team

Yuhong Holding Group Co., Ltd., established with 20 years of export experience, stands as one of China's top 5 finned tube exporters, serving 80 countries' clients worldwide. With 55 production lines, 110+ skilled employees, and a 20,000-square-meter manufacturing facility, we combine cutting-edge technology with exceptional service quality to deliver superior heat exchange solutions.
