Solid Fin Tube
>
ASTM A312 TP304 HF Welding Fin Tubes With SS304 Fins Tubos Aletados

ASTM A312 TP304 HF Welding Fin Tubes With SS304 Fins Tubos Aletados

Brand Name: YUHONG
Model Number: ASTM A312 TP304
MOQ: Depend the size of finned tubes, 50-100PC
Price: 30-10000 USD
Packaging Details: Ply-wooden Case With Iron Frame
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
CHINA
Certification:
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Product:
Fin Tubes Or Finned Tube
Type:
High Frequency Welding Finned Tubes
Standard:
ASTM A312
Material:
Stainless Steel TP304 Base Tubes And Fins
Use:
Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc
Packing:
Ply-wooden Case With Iron Frame
Supply Ability:
1000 tons/month
Highlight:

ASTM A312 Welding Fin Tubes

,

SS304 Welding Fin Tubes

,

HF Welding Fin Tubes

Product Description
ASTM A312 TP304 HF Welding Fin Tubes With SS304 Fins Tubos Aletados
Product Specifications
Attribute Value
Product Fin Tubes or Finned Tube
Type High Frequency Welding Finned Tubes
Standard ASTM A312
Material Stainless Steel TP304 Base Tubes and Fins
Use Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Packing Ply-wooden Case With Iron Frame
High Frequency Welding Finned Tubes

High frequency welding fin tubes are specialized tubes manufactured using high-frequency electrical currents to heat and fuse metal edges without additional filler materials. The resulting fin tubes feature surface fins that enhance heat transfer capabilities. Materials for base tubes and fins include carbon steel, alloy, and stainless steel.

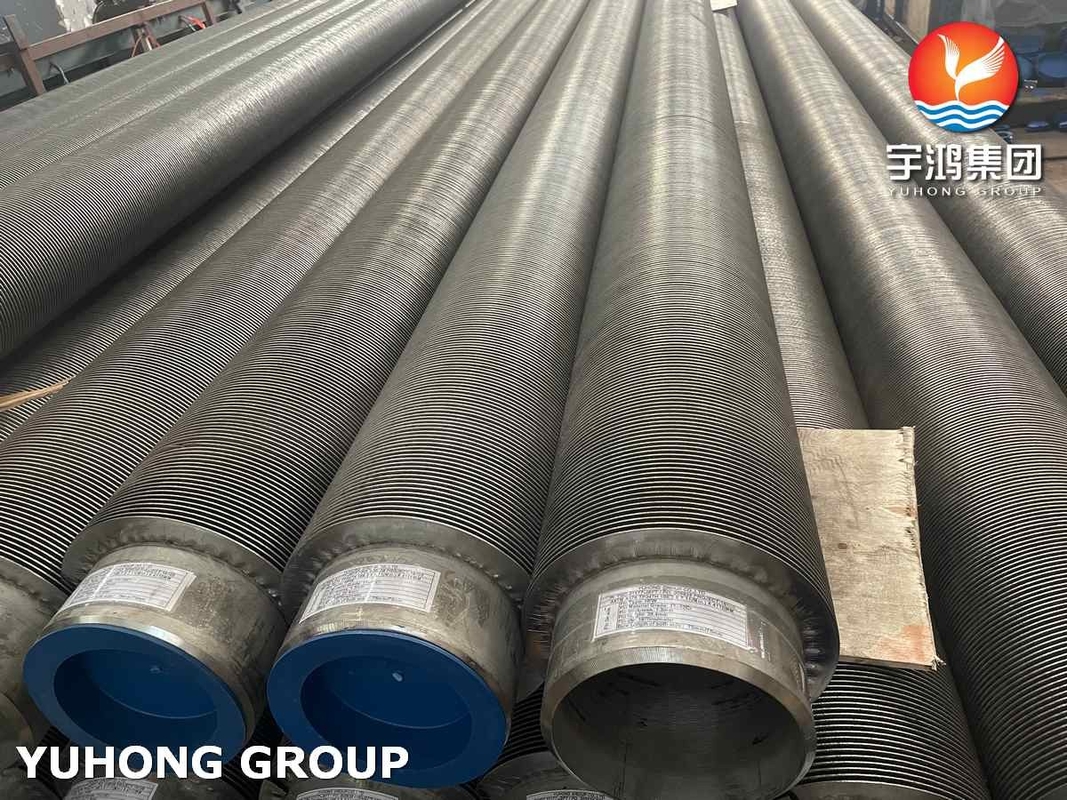

ASTM A312 TP304 HF Welding Fin Tubes With SS304 Fins Tubos Aletados 0
ASTM A312 Base Tube Details

ASTM A312 specification covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe for high-temperature and general corrosive service.

Chemical Composition (%) max
Grade C Mn P S Si Cr Ni
TP304 0.08 2.00 0.045 0.03 1.00 18.0-20.0 8.0-11.0
Mechanical Properties
Grade Tensile Strength,min Yield Strength (0.2%Offset,min)
TP304 75ksi (515 MPa) 30ksi (205 MPa)
Advantages of HFW Finned Tubes
  • Minimal heat affected zone with excellent weld microstructure and properties
  • Superior corrosion resistance, wear resistance, and thermal stability
  • Large heat exchange area in compact installation space
  • Reduced tube side pressure drop and operational costs
  • Enhanced stiffness and seismic performance
  • Optimized heat transfer and metal flow
Fin Tube Specifications
Type Description Base tube O.D. (mm) Fin pitch (mm) Fin height (mm) Fin thickness (mm)
Embedded G-type fin tube 16-63 2.1~5 <17 ~0.4
Extruded Single metal / Combined metal 8-51 1.6~10 <17 0.2-0.4
Low fin tube T-type fin tube 10-38 0.6~2 <1.6 ~0.3
Bamboo tube Corrugated tube 16-51 8.0~30 <2.5 ~0.3
Wound L / KL / LL type fin tube 16-63 2.1~5 <17 ~0.4
String String fin tube 25-38 2.1-3.5 <20 0.2-0.5
U-type U-type fin tube 16-38 / / /
Welding HF-welding fin tube 16-219 3~25 5~30 0.8-3
Applications
  • Steam Coils
  • Heat Exchangers
  • Boilers
  • Furnaces
  • Condensers
  • Evaporators
  • Various Coolers (Air, Oil, Hydrogen, Generator)
  • Waste Heat Recovery Systems
  • Driers
  • Heat Pipe Technology
YUHONG Group

YUHONG Group has supplied fin tubes to more than 80 countries with extensive export experience. We specialize in heat exchanger/boiler projects, marine applications, condensers, air coolers, and oil & gas projects. As a leading Chinese manufacturer, finned tubes are our core competitive product.

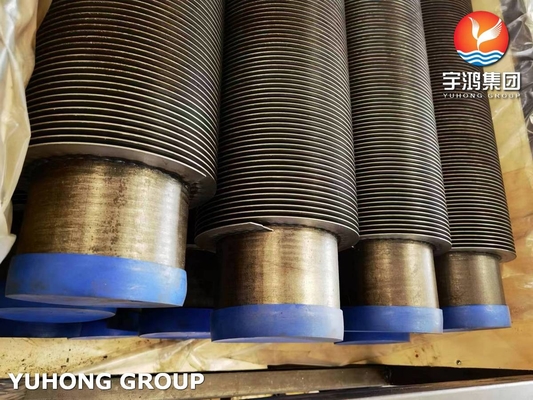

ASTM A312 TP304 HF Welding Fin Tubes With SS304 Fins Tubos Aletados 1
