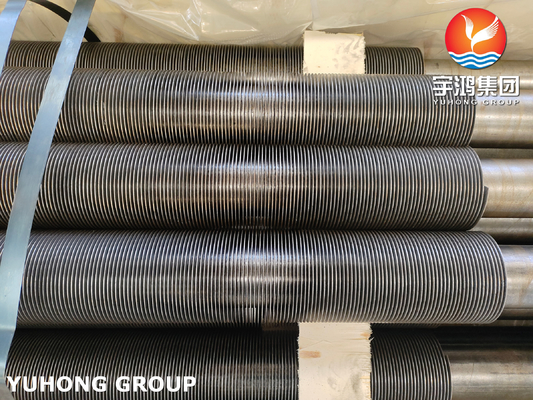

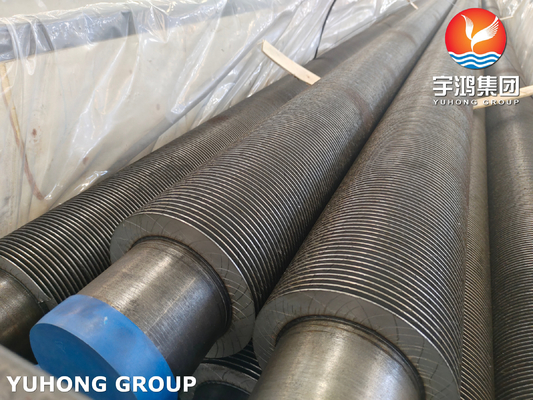

Spiral High Frequency Welding Finned Tube ASME SA106 GR.B For Heat Exchanger

Brand Name:	YuHong
Model Number:	ASTM A106 GR.B
MOQ:	500KGS
Price:	Negotiable

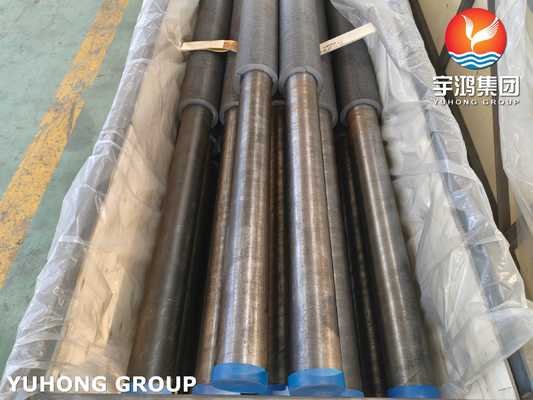

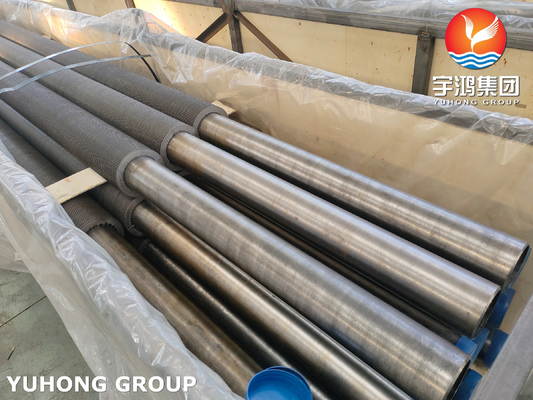

Packaging Details:	Ply-wooden Cases with Steel Frames(both ends of pipes have plastic caps)
Payment Terms:	T/T,L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Base Pipe Specification&Material:

ASME SA106 Gr.B

Base Pipe Material:

Carbon Steel

Fin Type:

Spiral High Frequency Welding Finned Tube

Fin Material:

Carbon Steel

Base Tube/Pipe OD:

15.88-230 Mm

Fin Pitch:

4mm-30 Mm

Fin Height:

8-30 Mm

Fin Thickness:

0.8-3 Mm

Pipe Length:

Customsized

Application:

Boiler, Economizer, Heat Exchanger, Vaporizer, Condenser

Supply Ability:

According to Clients' requirements

Highlight:

Spiral High Frequency Welding Finned Tube

ASME SA106 GR.B Welding Finned Tube

Heat Exchanger Welding Finned Tube

Product Description

Spiral High Frequency Welding Finned Tube ASME SA106 GR.B For Heat Exchanger

Product Specifications

Attribute	Value
Base Pipe Specification & Material	ASME SA106 Gr.B
Base Pipe Material	Carbon Steel
Fin Type	Spiral High Frequency Welding Finned Tube
Fin Material	Carbon Steel
Base Tube/Pipe OD	15.88-230 mm
Fin Pitch	4mm-30 mm
Fin Height	8-30 mm
Fin Thickness	0.8-3 mm
Pipe Length	Custom-sized
Application	Boiler, Economizer, Heat Exchanger, Vaporizer, Condenser

Product Overview

High Frequency Welding Finned Tube is a specialized heat transfer component used across power generation, petrochemical, and HVAC industries. This heat exchanger features tubes with integrally welded fins that significantly increase surface area for optimal thermal efficiency.

Manufacturing Process

The high-frequency welding (HFW) process utilizes electromagnetic fields to create intense heat and pressure, resulting in a durable bond between fins and base tube. This method ensures superior heat transfer efficiency and structural integrity.

Material Composition

Our ASME SA106 GR.B finned tubes primarily use carbon steel for both base pipe and fins, offering an optimal balance of strength and cost-effectiveness. Alternative materials including stainless steel and copper alloys are available for specialized applications.

Chemical Composition of A106 GR.B

Carbon (C): 0.30% max
Manganese (Mn): 0.29-1.06%
Phosphorus (P): 0.035% max
Sulfur (S): 0.035% max
Silicon (Si): 0.10% min
Chromium (Cr): 0.40% max
Copper (Cu): 0.40% max
Molybdenum (Mo): 0.15% max
Nickel (Ni): 0.40% max

Mechanical Properties

ASTM A106 GR.B carbon steel pipes meet the following specifications at room temperature:

Tensile strength: 60,000 psi (415 MPa) minimum
Yield strength: 35,000 psi (240 MPa) minimum
Elongation: 30% minimum

Industrial Applications

Our high-frequency welding finned tubes are engineered for critical heat transfer applications including:

Power plant air preheaters for combustion air optimization
Heat exchangers in refrigeration and HVAC systems
Boiler systems for steam generation
Industrial furnace wall applications
