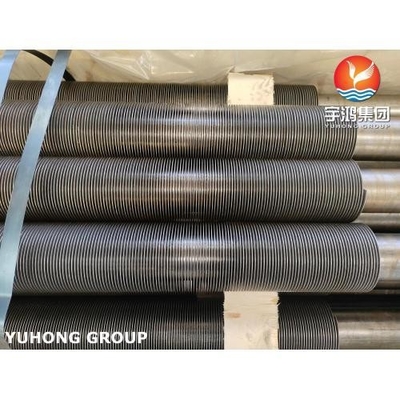

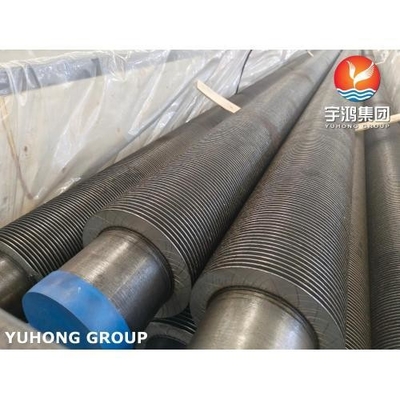

ASME SA106 GR.B High Frequency Welded/HFW Fin Tube

Detail Information

Product Description

Detail Information

Model No:

YGC-CSFT-001

Brand:

YUHONG

Place Of Origin:

China

Standard:

ASTM A106/ASME SA106

Material:

Gr.B

Type:

HFW Fin Tube

Packing:

Plywood Case/Iron Case

Base Tube O.D.:

16-219mm

Fin Height:

6-50mm

Fin Thickness:

0.3-3.0mm

Fin Pitch:

As Customer's Request

Weld Process:

GMAW

Production Capacity:

More Than 5000 Meters Per Day

Highlight:

asme sa106 solid fin tube

asme sa106 welding fin tube

high frequency solid fin tube

Product Description

ASME SA106 GR.B High Frequency Welded/HFW Fin Tube

Product Specifications

Attribute	Value
Model No	YGC-CSFT-001
Brand	YUHONG
Place Of Origin	China
Standard	ASTM A106/ASME SA106
Material	Gr.B
Type	HFW Fin Tube
Packing	Plywood case/Iron case
Base Tube O.D.	16-219mm
Fin Height	6-50mm
Fin Thickness	0.3-3.0mm
Fin Pitch	As customer's request
Weld Process	GMAW
Production Capacity	More than 5000 meters per day

Product Overview

ASTM A106 is a standard specification for seamless carbon steel pipe for high-temperature service. The GR.B designation indicates that the pipe material conforms to Grade B requirements of this specification.

A high-frequency welded fin tube is typically a carbon steel tube with fins attached through a high-frequency welding process. The fins are usually made of aluminum or copper and are used to increase the surface area of the tube for enhanced heat transfer efficiency.

The ASTM A106 GR.B high frequency welded fin tube is therefore a seamless carbon steel pipe with fins attached through high-frequency welding for improved heat transfer capabilities. This type of fin tube is commonly used in applications that require efficient heat transfer, such as in boilers, heat exchangers, and air coolers in the oil and gas, petrochemical, and power generation industries.

Technical Specifications

Standard	ASTM A106 & Its equivalent ASME, DIN & EN standard
Base Tube Material	Gr.A/B/C
Base Tube O.D.	16-219mm
Fin Height	6-50mm
Fin Thickness	0.3-3.0mm
Fin Pitch	As customed
Length	As customed
Fin Type	G type Embedded
Packing	Ply wooden case

Chemical Composition

Grade	C	Mn	P	S	Si	Cr	Cu	Mo	Ni	V
A	0.25 max	0.27-0.93	0.035 max	0.035 max	0.10 min	0.40 max	0.40 max	0.15 max	0.40 max	0.08 max
B	0.30 max	0.29-1.06	0.035 max	0.035 max	0.10 min	0.40 max	0.40 max	0.15 max	0.40 max	0.08 max
C	0.35 max	0.29-1.06	0.035 max	0.035 max	0.10 min	0.40 max	0.40 max	0.15 max	0.40 max	0.08 max

Mechanical Properties

Grade	Tensile Strength, min, psi (MPa)	Yield Strength, min, psi (MPa)	Elongation in 2 in. or 50mm, min (%)	Heat Treatment Temperature, min, °F(°C)
A	48000(330)	30000(205)	35	1200(650)
B	60000(415)	35000(240)	30	1200(650)
C	70000(485)	40000(275)	30	1200(650)

Industrial Applications

ASTM A106 GR.B HFW Fin Tube is commonly used in heat exchangers, boilers, and other applications that require efficient heat transfer. The finned tube design increases the heat transfer surface area, thus improving the heat transfer rate.

Power generation: These tubes are used in power plants to transfer heat from the high-temperature flue gases to the water or steam used in the power generation process.
Oil and gas industry: The tubes are used in heat exchangers to transfer heat between different fluids in oil and gas processing, refining, and transportation operations.
HVAC systems: The tubes are used in air conditioning and refrigeration systems for efficient heat transfer between the refrigerant and the surrounding air.
Chemical processing: These tubes are used in chemical processing plants for heat transfer between different fluids and in reactors for maintaining temperature control.

Overall, the ASTM A106 GR.B HFW Fin Tube is a versatile and efficient tool for improving heat transfer in a wide range of industrial applications.

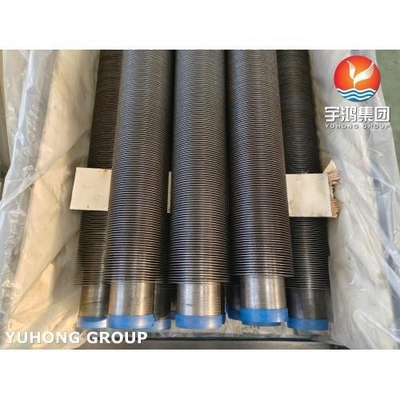

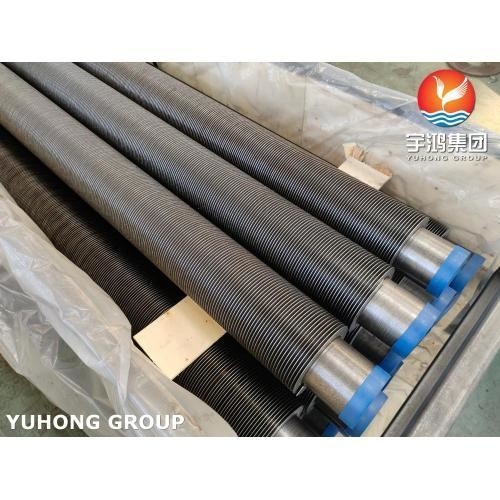

Packaging & Delivery

Selling Units	Piece/Pieces
Package Type	Iron case

Supply Capacity

Productivity: 500 tons per month
Transportation: Ocean, Land, Air, Express
Place of Origin: China
Supply Ability: 500 tons per month
Certificates: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Port: SHANGHAI PORT, NINGBO PORT
Payment Type: T/T, L/C
Incoterm: FOB, CFR, CIF, EXW

Get In Touch

If you have any questions about our products or services, feel free to reach out to us. We provide unique experiences for everyone involved with our brand and offer preferential pricing with best-quality products.
