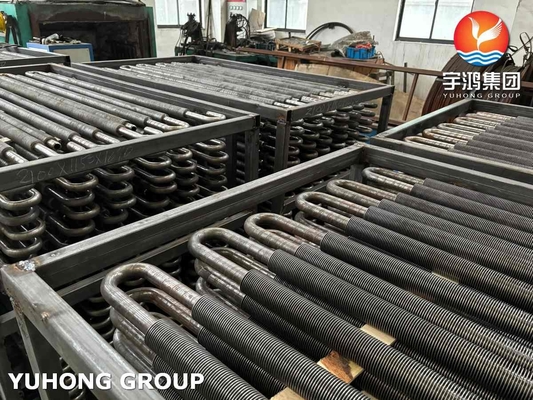

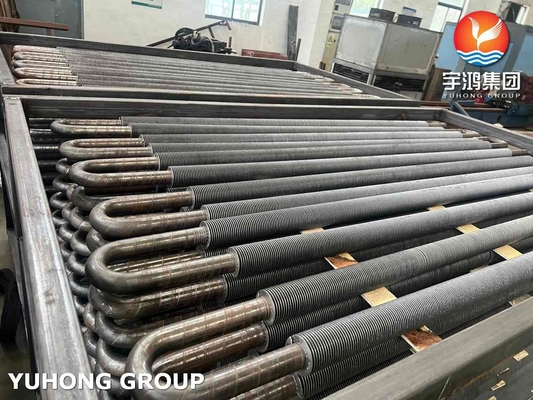

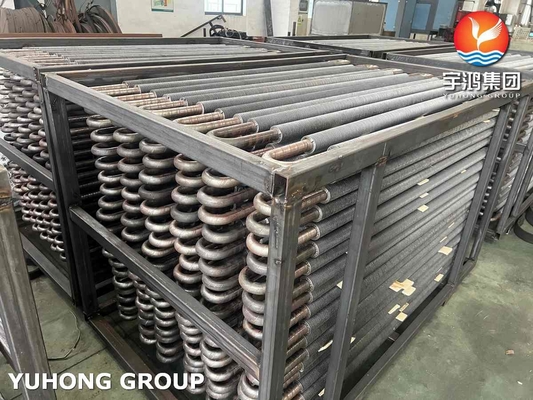

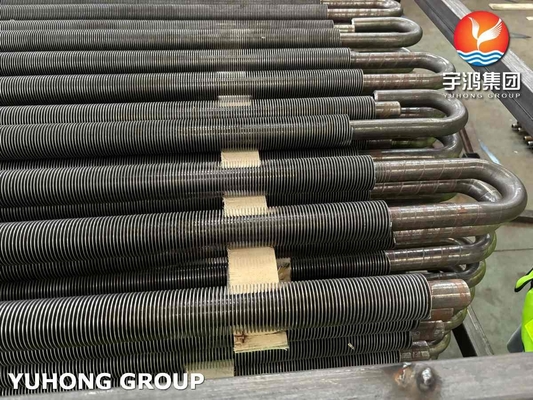

High Frequency Welding Fin Tube , U Bend Type (U Bend Fin Tube),SA213 T9 And SS409, Evaporator Application

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Sales Dept. (Marketing Director)

sales@steelseamlesspipe.com

+8613819835483

Contact Now

High Frequency Welding Fin Tube , U Bend Type (U Bend Fin Tube),SA213 T9 And SS409, Evaporator Application

Brand Name:	YUHONG
Model Number:	U bend Fin tube , Solid Fin tube, HFW Fin Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Brand:

YUHONG

Standard:

ASTM A213, ASME SA213 , ASTM A199, ASME SA199, ASTM A335, ASME SA335

Base Tube Material Grade:

SA178, SA179, SA192, A-1, C, SA214, T1, T11, T12, T22, T5, T9, T91

Application:

Boiler, Furnace, Fired Heater, Evaporator ,HVAC Systems

Fin Type:

Solid U Bend Fin Tube , HFW Fin Tube

Hydrostatic Test, PT

Supply Ability:

10000 tons/month

Highlight:

U bend Welding Fin Tube

Welding Fin Tube High Frequency

SA213 T9 for Evaporator

Product Description

High Frequency Welding Fin Tube, U Bend Type (U Bend Fin Tube), SA213 T9 And SS409, Evaporator Application

Product Specifications

Attribute	Value
Brand	YUHONG
Standard	ASTM A213, ASME SA213, ASTM A199, ASME SA199, ASTM A335, ASME SA335
Base Tube Material Grade	SA178, SA179, SA192, A-1, C, SA214, T1, T11, T12, T22, T5, T9, T91
Application	Boiler, Furnace, Fired Heater, Evaporator, HVAC systems
Fin Type	Solid U Bend Fin Tube, HFW Fin Tube
NDT	Hydrostatic Test, PT

Product Description

Yuhong Group's Welded Helical Solid Finned Tubes are manufactured by helically wrapping fin strip on edge around the tube circumference and continuously welding the fin strip to the tube. The fin strip is held under tension and confined laterally as it is formed around the tube, ensuring forceful contact with the tube surface.

A continuous weld is applied at the point where the fin strip first begins to bend around the tube diameter using Yuhong Group's unique gas metal arc welding (GMAW) process. This creates the strongest fin-to-tube attachment in the industry, with excellent heat transfer characteristics, low fin-side pressure drop, and minimal change in grain microstructure.

U-bend fin tube is a type of heat exchanger tube bent into a U-shape to increase surface area for heat transfer. The tube is typically lined with fins to further enhance heat transfer capabilities, making it ideal for HVAC systems, refrigeration units, and industrial process equipment.

Material Grades Available

Carbon	Chromium	Low Temperature	Stainless Steel	Duplex	Copper & Bronze	Titanium	Ni-Alloy
SA178-A	SA213-T1	SA333-Gr.1	SA213	TP316L	A789-S31803	SB111-C70600	SB338-GR.1	SB163	NO2200

ASTM A213/ASME SA213 Chemical Composition and Mechanical Properties

Chemical Composition%									Mechanical Properties
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max	T. S	Y. P	Elongation	Hardness
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	-	-	-	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)

ASTM A213/ASME SA213 Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	-	+ 3, 18 mm, - 0 mm
12, 7 mm < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, - 0 mm
38, 1 mm < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, - 0 mm

High Frequency Welding Solid Fin Tube Applications

Boiler
Furnace
Fired Heater
Radiator
Refrigeration
Power plant-Steam
Superheater
Evaporator
HVAC systems
