ASTM A234 WP22 180° Elbow Alloy Steel Return Bend For Cooling System
  • name
  • name
  • name

ASTM A234 WP22 180° Elbow Alloy Steel Return Bend For Cooling System

Brand Name: YuHong
Model Number: ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91, WP92
MOQ: 1 PC
Price: Negotiable

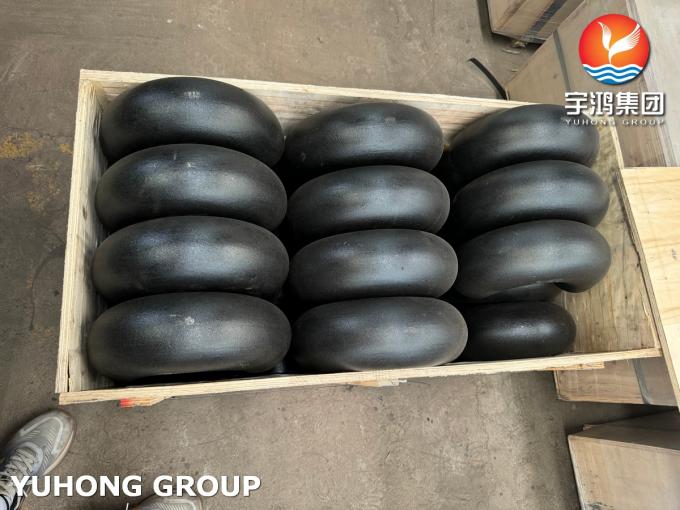

Packaging Details: Ply-wooden Cases/Pallets
Payment Terms: T/T, L/C AT SIGHT
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO,PED, TUV, ABS, DNV, GL , LR , KR, BV, CCS, COST
Product Name:
180 Degree Elbow SR/180 Degree Return Bend
Surface:
Black Painted Or Oiled
Test:
Size Inspection, NDE Test...
Standard:
ASME B16.9
Supply Ability:
According to Clients' requirements
Highlight:

180° Elbow Return Bend

,

Alloy Steel Return Bend

,

ASTM A234 WP22 Return Bend

Product Description

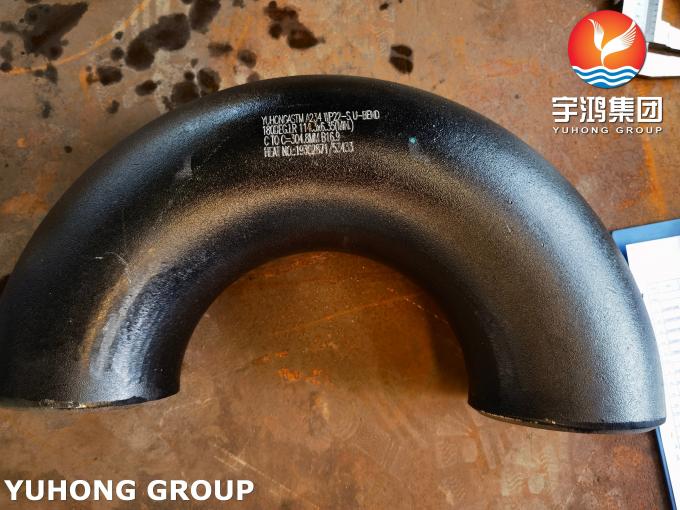

ASTM A234 WP22 180° Elbow Alloy Steel Return Bend For Cooling System
Product Specifications
Product Name 180 Degree Elbow SR/180 Degree Return Bend
Surface Black Painted or Oiled
Test Size Inspection, NDE Test
Standard ASME B16.9
Material Composition
Grade C Mn P S Si Cr Mo Ni Co Others
WP22 0.05-0.15 0.30-0.60 0.04 0.04 0.5 1.90-2.60 0.87-1.13 ... ... ...
Mechanical Properties
Yield Strength

Carbon steel typically exhibits a yield strength ranging from 250 MPa to 450 MPa, depending on the specific grade. This property indicates the maximum stress that the material can withstand without permanent deformation.

Tensile Strength

The tensile strength of carbon steel return bends usually falls between 400 MPa and 550 MPa, measuring the material's ability to resist being pulled apart.

Design Considerations
  • Wall Thickness: Impacts strength - thicker walls provide greater resistance to internal pressure and mechanical stress.
  • Bend Radius: Affects stress distribution - larger radius generally reduces stress concentrations, enhancing overall strength.
  • Pressure Ratings: Designed to withstand specific working pressures as defined by industry standards (ASME B16.9).
  • Safety Factor: Applied in design to account for unexpected loads and conditions.
  • Fatigue Resistance: Critical for applications with repeated thermal cycling or pressure fluctuations.
  • Corrosion Protection: Protective coatings or treatments may be applied in corrosive environments.
Product Overview

Our ASTM A234 WP22 alloy steel return bend is a precision-engineered pipe fitting that redirects flow within piping systems at a 180-degree angle. Manufactured from high-quality alloy steel, this return bend offers exceptional strength, durability, and resistance to high temperatures, making it ideal for cooling systems and other demanding applications.

ASTM A234 WP22 180° Elbow Alloy Steel Return Bend For Cooling System 0 ASTM A234 WP22 180° Elbow Alloy Steel Return Bend For Cooling System 1
Key Features
  • Manufactured to ASME B16.9 standards
  • Available with black painted or oiled surface finish
  • Rigorous quality control including size inspection and NDE testing
  • Excellent mechanical properties for demanding applications
  • Precision-engineered for optimal flow redirection
