U Bend Return, 180 Deg. Short Radius, ASME SA234 WP9 4" SCH40 B16.28 For Fired Heater Radiant Section

Brand Name:	YUHONG
Model Number:	180 DEG. Return , 180deg. Elbow
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material Grade:

ASTM A234 WP9, ASME SA234 WP9

Specification:

B16.28, B16.9, B16.25

Radius:

LR ( Long Radius ) , SR ( Short Radius )

Testing:

UT , PT , MT, PMI

Size:

1/2 Inch - 98 Inch

Application:

Heat Exchanger , Boiler , Furnace , Fired Heater , Convection Section

Supply Ability:

10000 Tons/Month

Highlight:

180 Deg Return Bend

Return Bend ASME SA234

B16.28 ASME SA234

Product Description

U Bend Return, 180 Deg. Short Radius, ASME SA234 WP9 4" SCH40 B16.28 For Fired Heater Radiant Section

Product Specifications

Attribute	Value
Material Grade	ASTM A234 WP9, ASME SA234 WP9
Specification	B16.28, B16.9, B16.25
Radius	LR (Long Radius), SR (Short Radius)
Testing	UT, PT, MT, PMI
Size	1/2 inch - 98 inch
Application	Heat Exchanger, Boiler, Furnace, Fired Heater, Convection Section

Product Description

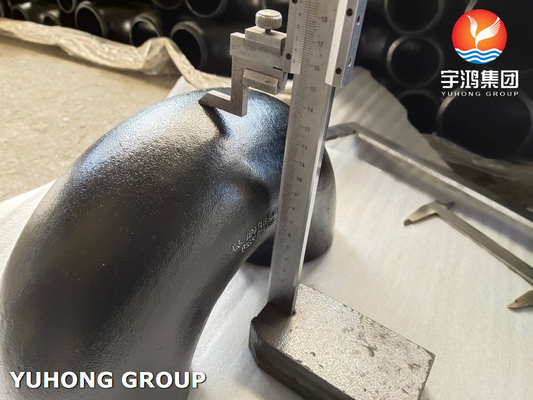

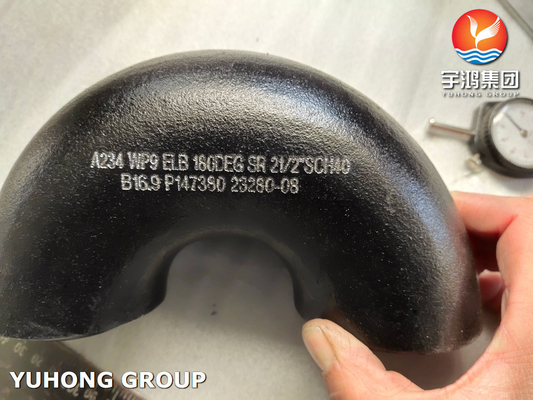

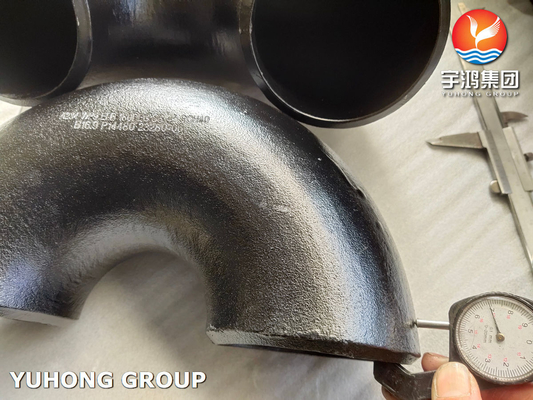

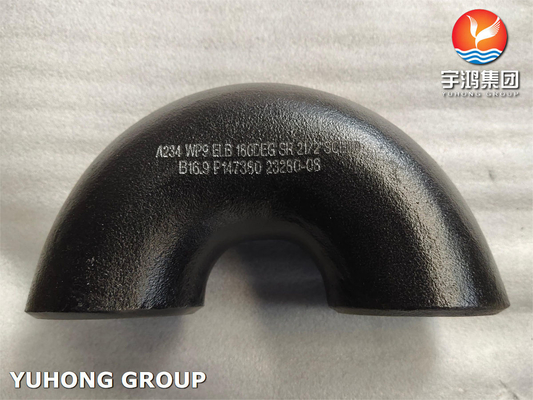

The 180 Degree Short Radius U Bend Return is designed for high-performance applications in fired heater radiant sections. Manufactured from ASME SA234 WP9 material, this 4" SCH40 B16.28 compliant component is essential for demanding industrial environments.

These U bend returns are widely used in power plants, petrochemical facilities, and oil refineries. The short radius design is particularly valuable where equipment space constraints exist. Our returns are manufactured using hot forming or cold hydro forming processes, with cast types available for high-temperature furnace applications.

Each unit undergoes rigorous quality control including 100% PT, UT, and MT testing prior to shipment to ensure compliance with all standard requirements. These precision-engineered components serve as critical connections between pipes, tubes, and fin tubes in industrial systems.

Material Specifications

ASME SA234 WP9 Chemical Composition (%)
C	Si	Mn	P	S	Cr	Ni	Mo	TI	Nb	Cu	Al	V	Co	Fe	Result
≤0.15	0.25~1.0	0.3~0.6	≤0.025	≤0.025	8.0~10.0	/	0.9~1.1	/	/	/	/	/	/	/	/

ASME SA234 WP9 Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥415	≥205	≥30

Available Configurations

Yuhong Group offers a comprehensive range of return bends to meet diverse industrial requirements:

45 Degree Return
90 Degree Return
180 Degree Return
Long Radius and Short Radius options
Custom configurations including Long Tang designs

Standard Size Range:

OD: 15mm to 1219mm
Thickness: 1mm to 60mm
Custom degrees available upon request

Industrial Applications

Our return bends serve critical functions across multiple industries:

Chemical Industry
Petrochemical Industry
Oil and Gas Industry
Nuclear Industry
Power Plants
Oil Refineries
Ship Building Equipment
Sea Water Equipment
