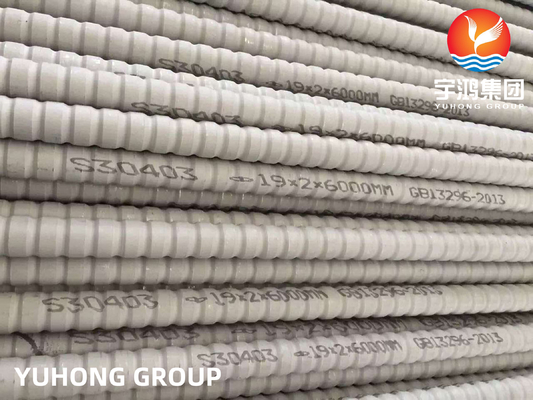

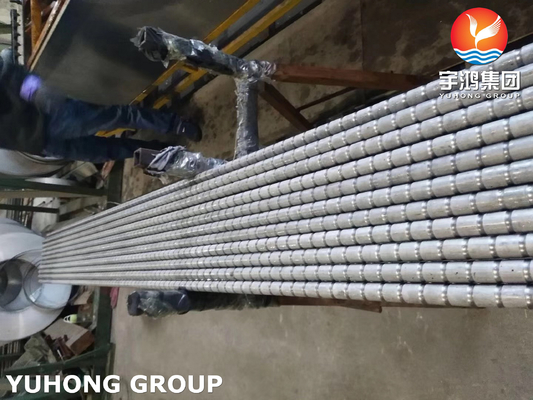

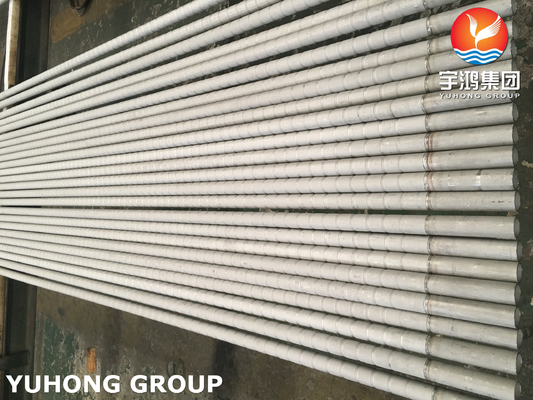

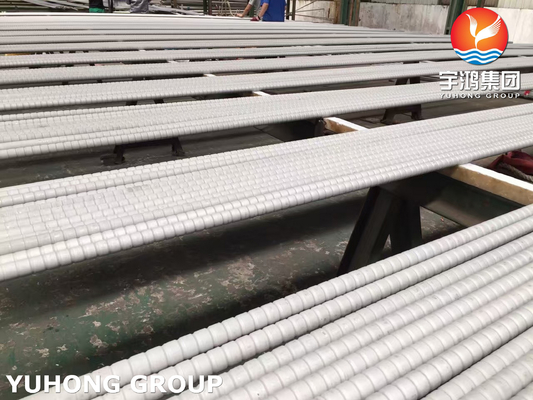

Corrugated Fin Pipe Stainless Steel S30403 TP304L For Heat Exchanger

Brand Name:	YUHONG
Model Number:	TP304L S30403
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Corrugated Fin Tubes

Material:

TP304L / S30403

Size And Length:

According To Clients' Need ( Length 500mm Min )

Radiator / Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Corrugated fin pipe

S30403 fin pipe

TP304L tube fins

Product Description

Corrugated Fin Pipe Stainless Steel S30403 TP304L For Heat Exchanger

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Corrugated Fin Tubes
Material	TP304L / S30403
Size and length	According to clients' need (length 500mm min)
Use	Radiator / Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler, etc
Packing	Ply-wooden Case With Iron Frame

Product Overview

Corrugated fin tubes are high-efficiency heat exchange components designed to enhance thermal performance by increasing surface area for heat transfer. These stainless steel tubes feature external corrugated fins that significantly improve heat transfer capabilities in various industrial applications.

Key Applications

Heating and Cooling Systems: HVAC systems, boilers, and chillers
Power Generation: Heat recovery systems and steam generators
Chemical Processing: Reactors and heat exchangers
Automotive Radiators: Car cooling systems
Marine Applications: Ship cooling systems

TP304L Base Tube Specifications

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni
TP304	0.03	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0

For small diameter or thin wall tubes (less than 12.7mm OD and 1.2mm wall thickness), a carbon maximum of 0.040% is required for Grades TP304L and TP316L.

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP304L	70ksi (485 MPa)	25ksi (170 MPa)	35%

Performance Advantages

Superior corrosion resistance and extended service life
Resistant to pitting corrosion with excellent cost performance
High-quality stainless steel construction ensures durability
Special waveform design prevents scale accumulation and enables self-cleaning
Flexible design accommodates thermal expansion for automatic descaling
Ultra-thin wall construction reduces weight while maintaining strength
Lower operational and maintenance costs with significant space savings

Finned Tube Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6~2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
