Enhanced Heat Transfer Tube Finning ASTM A213 TP316L Corrugated Type For Heat Exchanger

Brand Name:	YUHONG
Model Number:	Stainless Steel Corrugated Tube,Corrugated Tube, Enhance Heater Transfer Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Mateiral:

ASTM A213 TP316L, TP316H, TP316Ti, 1.4401, 1.4404

Applicable Industry:

Heat Exchanger, Condenser , Air Cooler

Hystrostatic Test

Fin Type:

Corrugated Tube

Length Of Fin Tube:

Max.: 34 M/pc

Fin OD:

15mm ~ 165.2mm

Supply Ability:

10000 Tons/Month

Highlight:

Heat Transfer tube finning

ASTM tube finning

A213 heat exchanger tubes

Product Description

Enhanced Heat Transfer Tube Finning ASTM A213 TP316L Corrugated Type For Heat Exchanger

Product Specifications

Attribute	Value
Base Tube Material	ASTM A213 TP316L, TP316H, TP316Ti, 1.4401, 1.4404
Applicable Industry	Heat Exchanger, Condenser, Air cooler
NDT	Hydrostatic Test
Fin Type	Corrugated Tube
Length of Fin Tube	Max.: 34 m/pc
Fin OD	15mm ~ 165.2mm

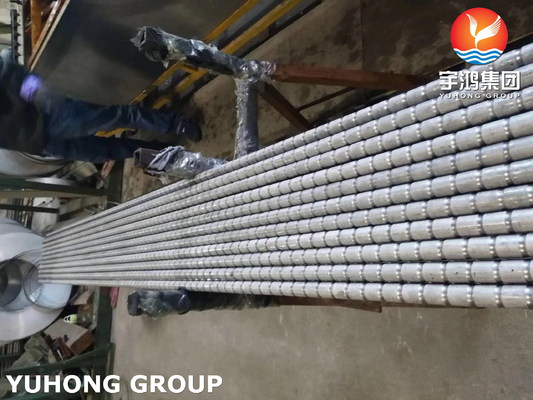

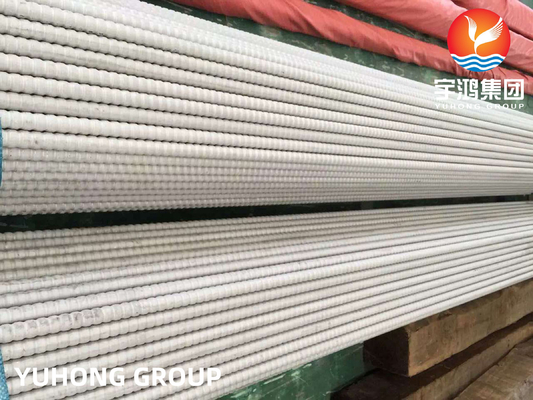

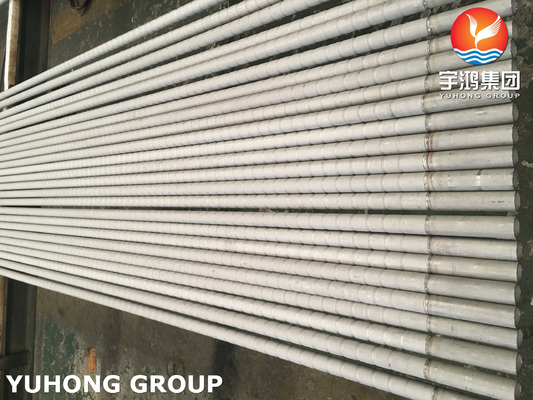

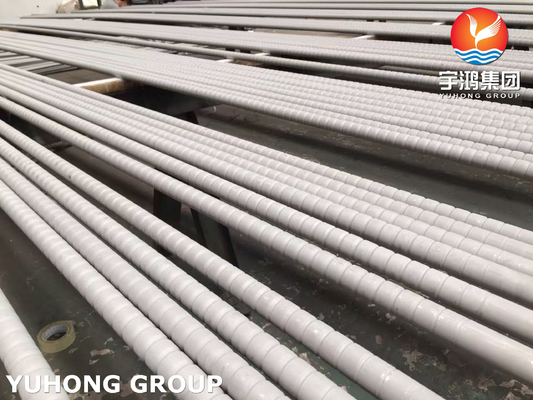

Yuhong Group stainless steel corrugated tubes feature a ribbed outer surface designed for enhanced heat transfer. These tubes are widely used in industrial applications due to their superior properties, particularly in heat exchangers and condensers.

Material Standards

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS
SS 316L	S31608	1.4404	/	X2CrNiMo17-12-2	SUS 316L	/

TP316L is a low-carbon austenitic stainless steel offering excellent corrosion resistance against sulfuric and chloric acids. This material combines corrosion resistance, weldability, and temperature performance, making it ideal for chemical processing, petrochemical, pharmaceutical, food and beverage, and marine applications.

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Ni	Mo	N	Fe
TP316L	≤0.03%	≤2.00%	≤0.75%	≤0.045%	≤0.030%	16.00-18.00%	10.00-14.00%	2.00-3.00%	≤0.10%	Balance

Mechanical Properties

Grade	Ultimate Tensile Strength	Yield Strength (0.2% Offset)	Elongation	Hardness
TP316L	485 MPa (70,000 psi) minimum	170 MPa (25,000 psi) minimum	40% minimum in 50 mm	≤95 HRB

Applications

Heat Exchangers
Plumbing and Gas Lines
Automotive industry
HVAC systems
Medical and pharmaceutical industry
Agriculture
Solar Water Heaters
Chemical processing
