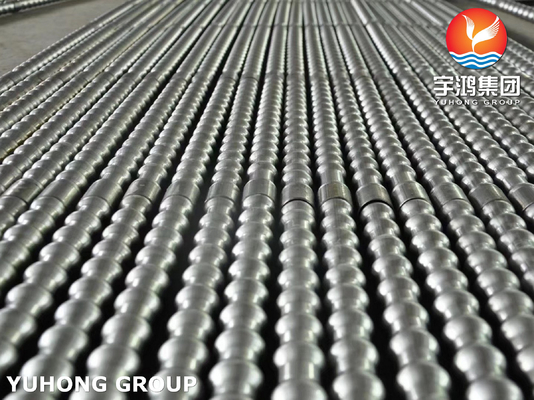

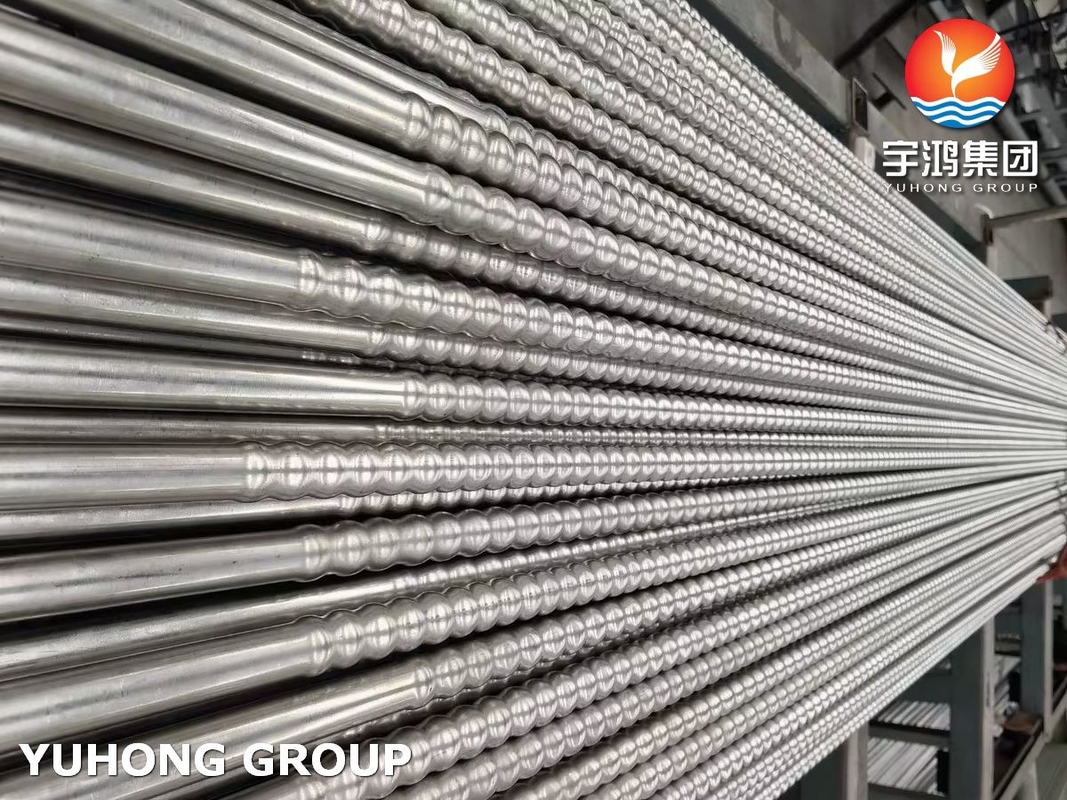

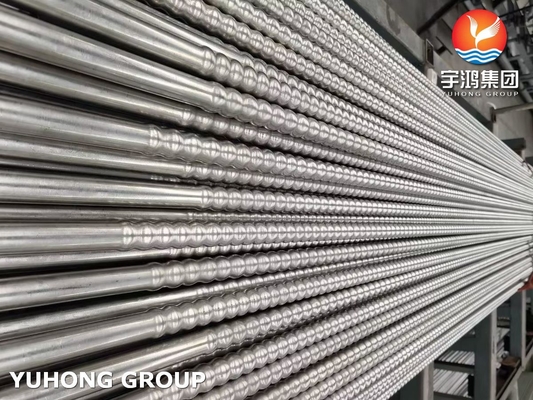

Expension Wave Tube , ASTM A312 TP310S Enhanced Heat Transfer Application

Brand Name:	YUHONG
Model Number:	Corrugated Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

TP310S

Base Tube Material Standard:

ASTM A312, ASME SA312

Type:

Expension Wave Tube

Application:

Heat Exchanger, Furnace

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A312 Heat Transfer Tube

Heat Transfer Tube TP310S

Expension Wave Tube 515MPa

Product Description

Expension Wave Tube, ASTM A312 TP310S Enhanced Heat Transfer Application

Product Specifications

Base Tube Material Grade	TP310S
Base Tube Material Standard	ASTM A312, ASME SA312
Type	Expension Wave Tube
Application	Heat Exchanger, Furnace

Product Description

An Expansion Wave Tube is a specialized heat exchanger component engineered to absorb thermal expansion and contraction stresses, maintaining system integrity and efficiency. Constructed from ASTM A312 TP310S stainless steel, these tubes offer exceptional high-temperature performance and corrosion resistance.

The TP310S grade provides excellent formability for complex tube shapes, along with superior corrosion resistance, high-temperature strength, and workability - ensuring reliable performance in demanding industrial environments.

Chemical Composition

Grade	Cr	Ni	C	Mn	Si	P	S	Fe
TP310S	24-26%	19-22%	0.08% max	2% max	1.5% max	0.045% max	0.03% max	Balance

Mechanical Properties

Grade	Tensile Strength	Yield Strength (0.2% Offset)	Elongation	Hardness
TP310S	Minimum 515 MPa (75,000 psi)	Minimum 205 MPa (30,000 psi)	Minimum 35% in 50 mm (2 inches)	Maximum 95 HRB

Key Applications

Heat Exchangers: Ideal for high-temperature applications in power generation, chemical processing, and oil/gas refining. Effectively compensates for thermal expansion to reduce stress and prevent system damage.
Furnace Components: Used as radiant tubes in furnaces due to exceptional high-temperature resistance and oxidation protection. Suitable for retorts and muffles with excellent thermal cycling durability.
