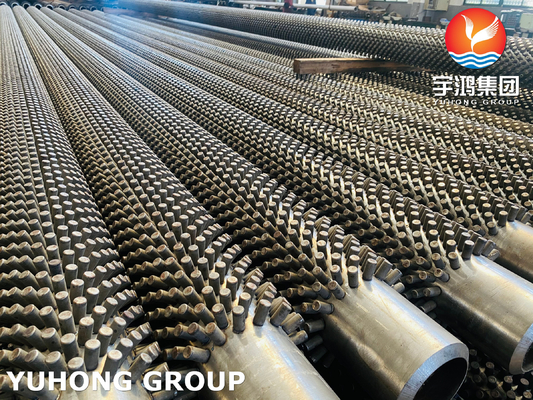

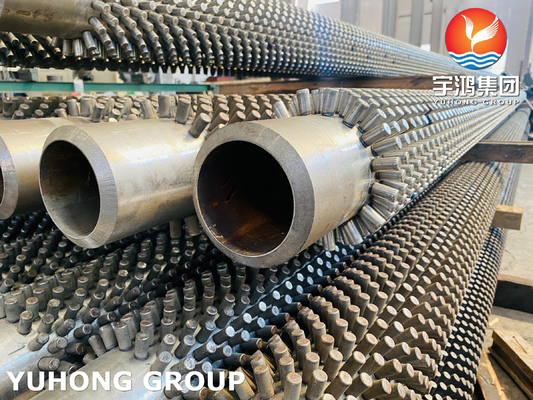

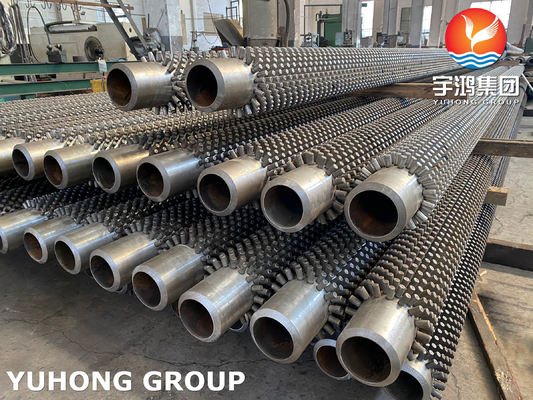

Heat Exchanger Studded Tubes ASTM A213 T9 Alloy Seamless Tube

Brand Name:	YUHONG
Model Number:	ASTM A213 T9
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	10-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Studded Tubes

Standard:

ASTM A213

Material:

T9 Base Tubes And CS Fins

Length:

10300MM For This Order

Other Details:

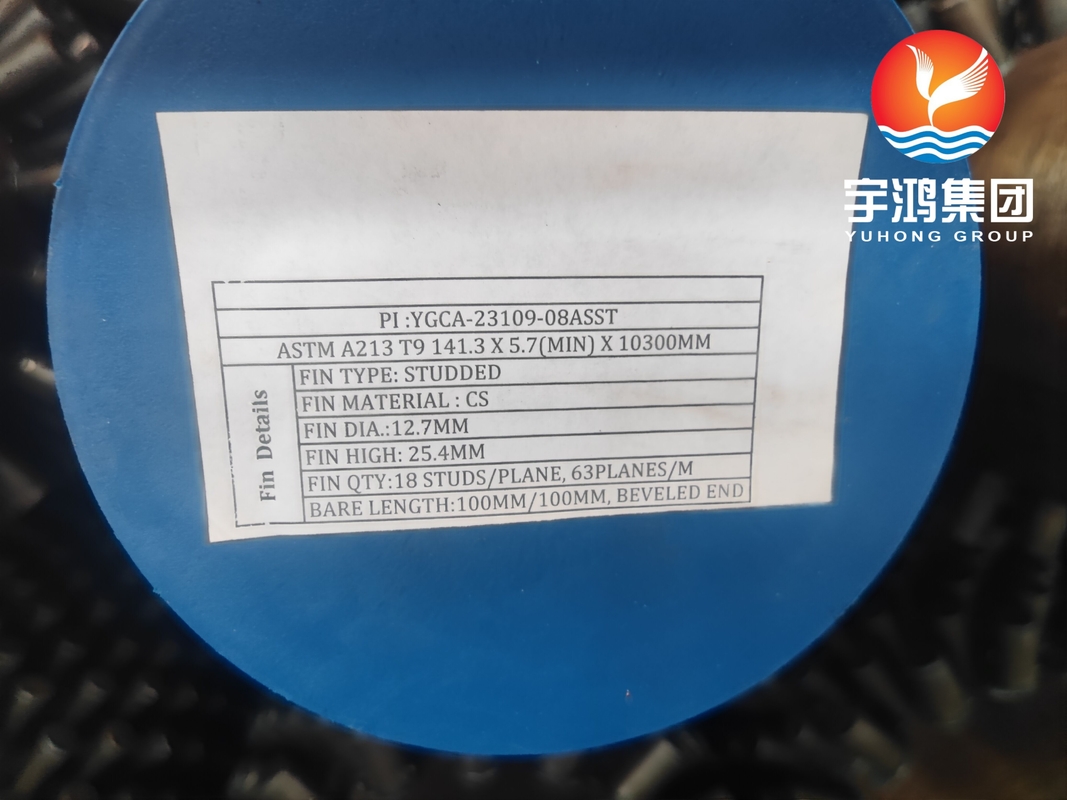

Base Tube: 141.3×Min 5.7 MM; Fin O.D. 12.7MM, Fin Height 25.4MM; 18 Studs/Circle

Packing:

Ply-wooden Case With Iron Frame

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

Supply Ability:

500 tons/month

Highlight:

Heat Exchanger Studded Tubes

Studded Tubes A213

Seamless fin tube pipe

Product Description

Heat Exchanger Studded Tubes ASTM A213 T9 Alloy Seamless Tube

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Studded Tubes
Standard	ASTM A213
Material	T9 Base Tubes and CS Fins
Length	10300MM For This Order
Other Details	Base Tube: 141.3×Min 5.7 MM; Fin O.D. 12.7MM, Fin Height 25.4MM; 18 Studs/Circle
Packing	Ply-wooden Case With Iron Frame
Use	For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc

Chemical Composition (%)

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	V
T9	0.15	0.30-0.60	0.025	0.025	0.025-1.00	8.00-10.00	0.90-1.10	...	...

Mechanical Properties

Grade	Tensile Strength,min	Yield Strength (0.2%Offset,min)
T9	60ksi (415 MPa)	30ksi (205 MPa)

Key Advantages

Excellent mechanical properties and resistance to oxidation and corrosion
Withstands temperatures up to 650°C (1200°F) while maintaining structural integrity
Chromium content provides superior oxidation resistance in high-temperature environments
Resistant to sulfur-containing environments and other corrosive media
High tensile strength and creep resistance for demanding applications
Allows for thinner tube walls, improving heat transfer efficiency

Product Definition

Studded tubes are heat exchanger tubes featuring small welded studs or pins on their outer surface. These studs significantly increase surface area, enhancing heat transfer efficiency when exchanging heat between the tube and surrounding medium (gases or fluids).

Common materials include carbon steel for general applications, stainless steel for corrosive environments, and alloy steels (T9, T11, T12) for high-temperature, high-pressure applications.

Applications

Petrochemical and Refining Industries - Processing high-temperature fluids and gases
Industrial Heating Systems - Thermal oil heaters and steam generators
Power Plants - Economizers, air preheaters, and superheaters
Marine and Offshore Applications - Heat exchangers for marine equipment
Waste Heat Recovery Systems - Boilers, furnaces, and exhaust systems
