ASTM A312 TP304 Studded Tube For Petrochemical And Power Generation

Brand Name:	YuHong
Model Number:	Studded Tube
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Material:

TP304

Standard:

ASME SA312 , ASTM A312

Application Industries:

Petrochemical And Refinery;Power Plant; HVAC Systems And So On

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Supply Ability:

According to Clients' requirements

Highlight:

ASTM A312 Studded Tube

Petrochemical Studded Tube

TP304 Studded Tube

Product Description

ASTM A312 TP304 Studded Tube For Petrochemical And Power Generation

Product Specifications

Attribute	Value
Material	TP304
Standard	ASME SA312, ASTM A312
Application Industries	Petrochemical and Refinery; Power Plant; HVAC systems
Certification	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Description

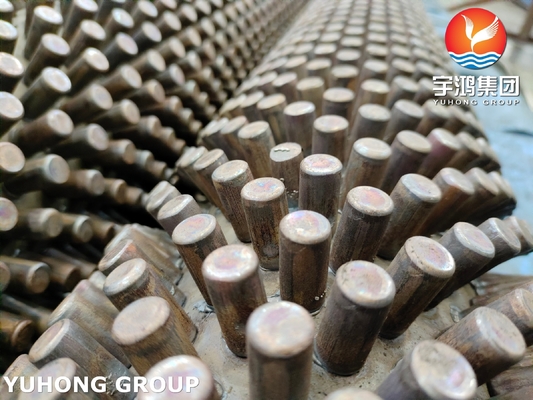

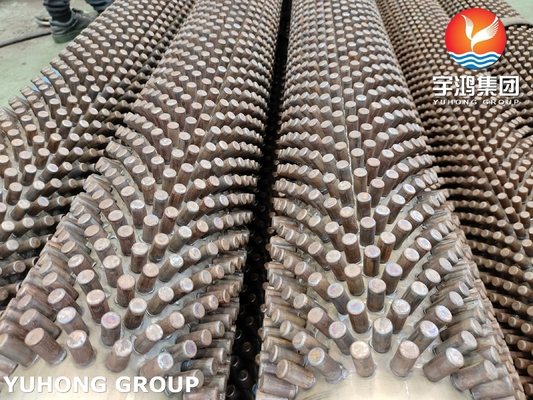

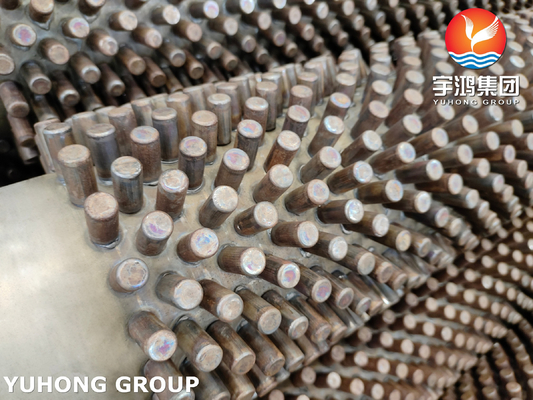

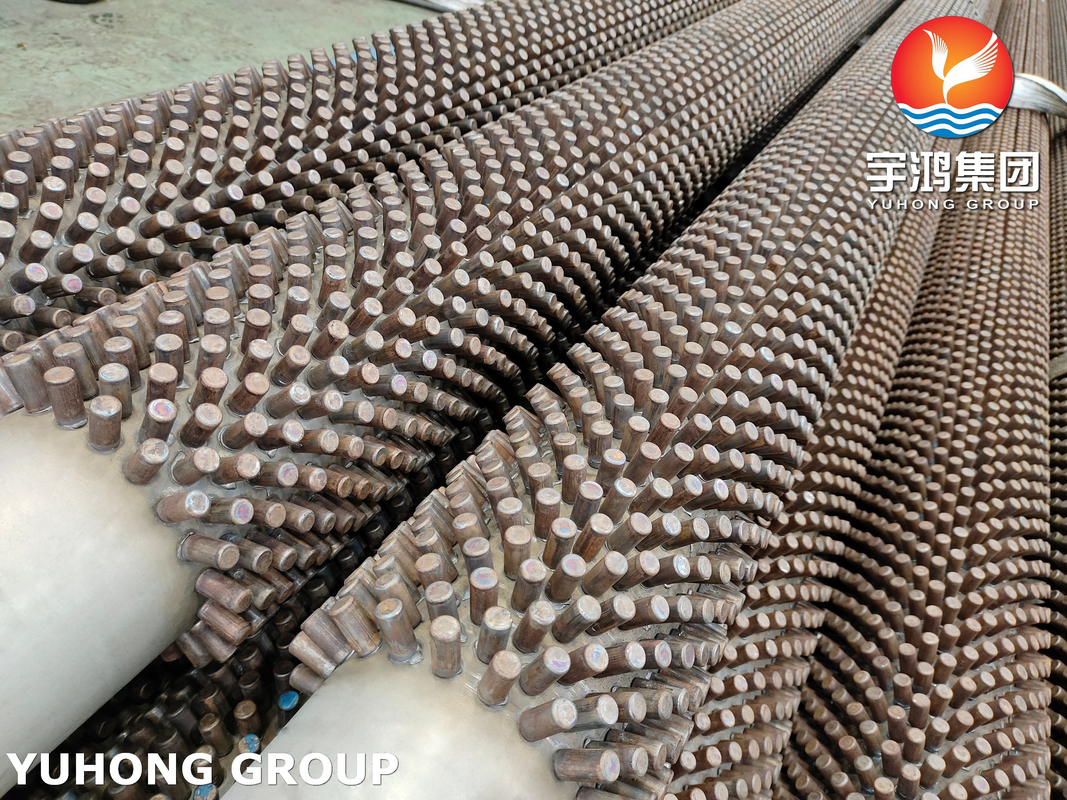

ASTM A312 TP304 Studded Tube is a specialized stainless steel tube with studded features designed to enhance heat transfer in thermal management applications. Manufactured to ASTM A312 standards, these tubes are ideal for high-temperature, high-pressure environments. The studs increase surface area for improved heat exchange efficiency.

Chemical Composition

Chromium (Cr): 18-20%
Nickel (Ni): 8-10.5%
Carbon (C): ≤0.08%
Manganese (Mn): ≤2%
Silicon (Si): ≤1%
Phosphorus (P): ≤0.045%
Sulfur (S): ≤0.03%

Key Properties

Corrosion Resistance: Excellent resistance to oxidizing environments and moderate resistance to reducing conditions
Temperature Tolerance: Continuous service up to 870°C (1600°F), intermittent service up to 925°C (1700°F)
Mechanical Strength: Tensile strength ≥515 MPa, Yield strength ≥205 MPa
Thermal Expansion: High coefficient (~17 μm/m*°C)
Surface Finish: Pickled/passivated for enhanced corrosion resistance

Physical Properties

Density: ~8.00 g/cm³
Melting Point: Approx. 1400°C (2552°F)
Thermal Conductivity: ~16.2 W/m*K
Specific Heat: ~500 J/kg*K
Modulus of Elasticity: ~190 GPa
Thermal Expansion: ~17.2 × 10^-6 /°C

Applications

Heat exchangers and boilers for efficient heat transfer
Refractory anchoring in high-temperature environments
Petrochemical and chemical plant equipment
Power generation systems including fossil fuel and nuclear plants
Cryogenic applications requiring austenitic toughness
