Stainless Steel Studded Tube, ASME SA312 TP304H With 11Cr , Fired Heater Tube Coils Application

Brand Name:	YUHONG
Model Number:	Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Base Pipe Standard:

ASTM A312 , ASME SA 312, ASTM A376, ASME SA376

Base Tube Material:

TP304, TP304L, TP304H, 1.4301 , 1.4306, 1.4307

Fin Type:

Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube

Application:

Boiler, Steam Heater, Fired Furnace, Fired Heater

Studded Tube Test:

Hammer Hitting Test

Studded Tube Length:

Max.: 34m /pc

Supply Ability:

10000 tons/month

Highlight:

studded pipe ASME SA312

studded pipe TP304H

Fired Heater Tube ASTM A376

Product Description

Stainless Steel Studded Tube, ASME SA312 TP304H With 11Cr, Fired Heater Tube Coils Application

Product Specifications

Attribute	Value
Base Pipe Standard	ASTM A312, ASME SA 312, ASTM A376, ASME SA376
Base Tube Material	TP304, TP304L, TP304H, 1.4301, 1.4306, 1.4307
Fin Type	Studded Tube, Studded Fin Tube, Pin Tube, Solid Fin Tube
Application	Boiler, Steam Heater, Fired Furnace, Fired Heater
Studded Tube Test	Hammer Hitting Test
Studded Tube Length	Max.: 34m /pc

Product Description

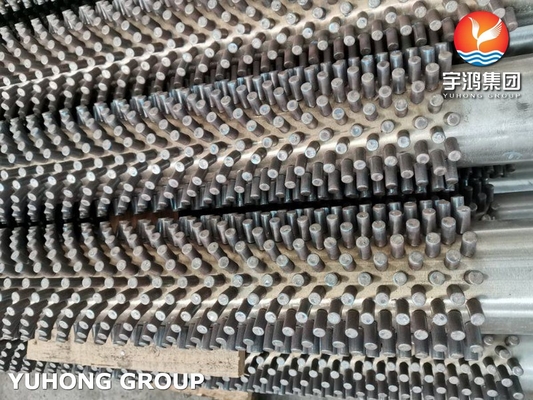

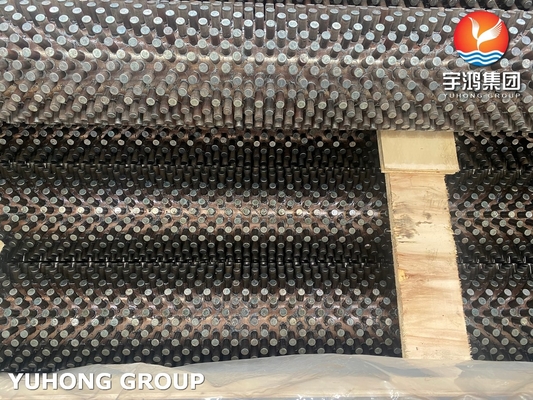

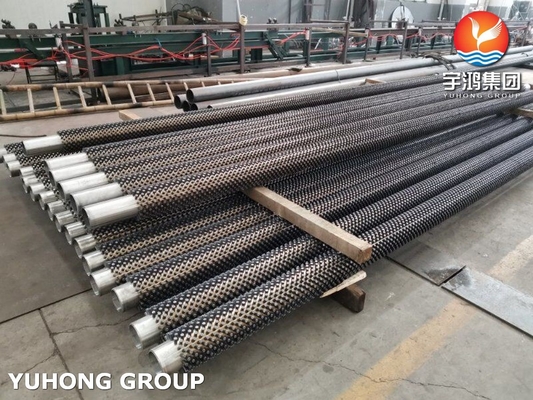

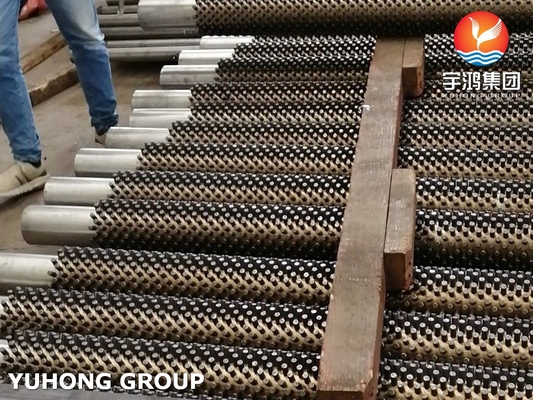

Studded Tubes are specially designed for convection chambers in petrochemical heating furnaces to significantly enhance heat transfer efficiency. These tubes offer two to three times the heat transfer surface area compared to standard tubes while maintaining equivalent thermal strength when properly designed.

Our manufacturing process features:

Precision resistance welding controlled by PLC automation
Servo motor-driven feeding and graduation systems
Customizable stud configuration via human-computer interface
Adjustable graduation parameters and compensation coefficients

Material Composition

ASME SA312 TP304H Chemical Composition (%)
C	Si	Mn	P	S	Cr	Ni	Mo	Ti	Nb	Cu	Al	V	Co	Fe	Result
0.04~0.1	≤1.0	≤2.0	≤0.045	≤0.03	18.0~20.0	8.0~11.0	/	/	/	/	/	/	/	/

Mechanical Properties

ASME SA312 TP304H Tensile Test ASTM A370-20
Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥515	≥205	≥35

Manufacturing Advantages

20,000 square meter production facility with 4 specialized finning machines
Daily production capacity of 50,000 studs
Strategic location near Shanghai Port (under 2 hours transport)
Exceptional performance under extreme temperature and pressure conditions

Typical Applications

Boiler systems, Steam Furnaces, Fired Heaters, Evaporators, Radiant Tube Coils, Convection Tube Coils, Superheaters, and other high-efficiency heat transfer applications.
