ASME SA106 Gr.B Carbon Steel Studded Tubes, Fired Heater Coil, Fired Furnace Tube

Brand Name:	YUHONG
Model Number:	Studded Tube, Pin Tube, Solid Fin Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Base Tube:

ASTM A106 / ASME SA106 Gr.B

Fin Material:

Carbon Steel

Stud Hight:

8mm ~ 50.8mm

Stud Diameter:

12.7mm, 15.8mm, 19.05mm

Studded Tube Length:

Max. 34m/pc

Fin Type:

Studded Tube , Solid Fin Tube, Pin Tube

Supply Ability:

10000 tons/month

Highlight:

ASME SA106 studded boiler tubes

Carbon Steel studded boiler tubes

Fired Heater Furnace Tube

Product Description

ASME SA106 Gr.B Carbon Steel Studded Tubes, Fired Heater Coil, Fired Furnace Tube

Product Specifications

Attribute	Value
Base Tube	ASTM A106 / ASME SA106 Gr.B
Fin Material	Carbon Steel
Stud Height	8mm ~ 50.8mm
Stud Diameter	12.7mm, 15.8mm, 19.05mm
Studded Tube Length	Max. 34m/pc
Fin Type	Studded Tube, Solid Fin Tube, Pin Tube

Product Description

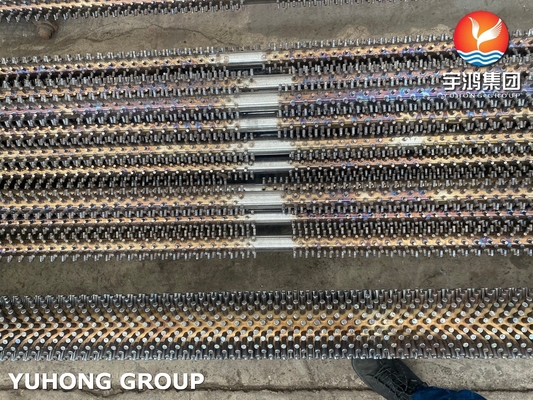

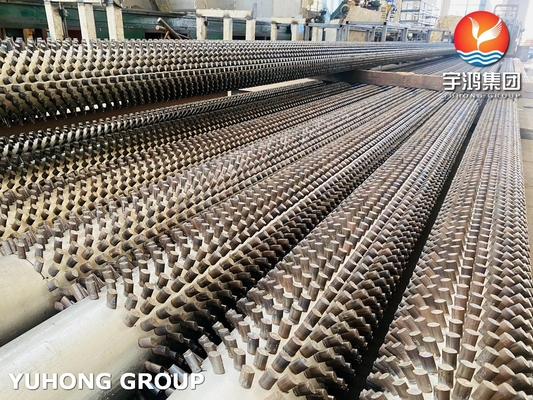

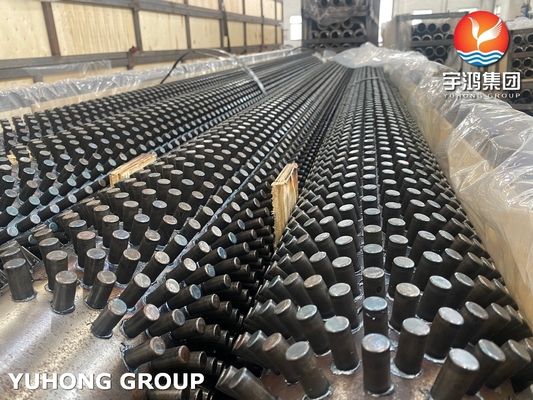

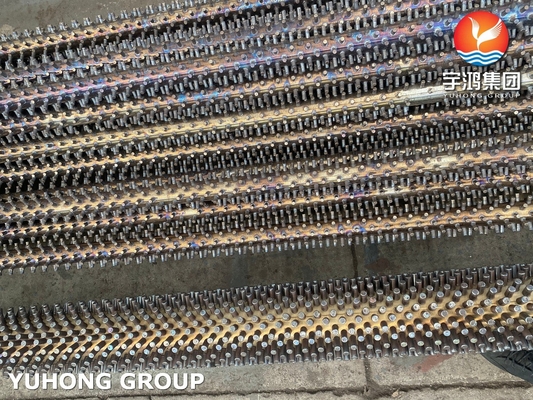

ASTM A106/ASME SA106 Gr.B Carbon Steel Studded Fin Tube is a specialized heat exchanger tube with studs attached to its outer surface. These studs, typically made of a different material than the tube itself, enhance heat transfer efficiency in applications such as boilers, heat exchangers, and air coolers.

The studs are welded in a regular formation throughout the tube surface, increasing heat transfer area. This makes them ideal for boilers, oil refineries, and petrochemical applications where corrosive environments or dirty gas streams require frequent cleaning.

ASTM A106/ASME SA106 Grade B is a standard specification for seamless carbon steel tubes designed for high-temperature service. The studded design significantly improves heat exchange between the internal fluid and surrounding environment.

Technical Specifications

Type	Description	Base Tube	Fin Specification (mm)
		O.D. (mm)	Fin Pitch	Fin Height	Fin Thick
Welding	HFW Fin Tube	16-219	3-25	5-30	0.8-3
H/HH Type	Fin Tube	25-63	8-30	<200	1.5-3.5
Studded	Fin Tube	25-219	8-30	5-35	φ5-20

Chemical Composition (ASME SA106 Gr.B)

Carbon	Silicon	Manganese	Phosphorous	Sulphur	Molybdenum	Nickel	Chromium	Copper
0.3	min 0.10	0.29-1.06	0.035	0.035	0.15	0.4	0.4	0.4

Mechanical Properties (ASME SA106 Gr.B)

Property	Value
Tensile Strength [MPa]	≥415
Yield Strength [MPa]	≥240

Applications

Radiators
Air Coolers
Air Preheater
Natural Gas Industry
Transportation Systems
Water Supply Systems
Fabrication Industry
Oil and Gas Industry
Offshore and Onshore Pipelines
Economizer, Boilers
Heat Exchangers
Tube Bundles
