Studded Tube, ASME AS335 P9 Alloy Steel Seamless Pipe with 11Cr (SS409) Stud, Fired Heater, Furnace Application

Brand Name:	YUHONG
Model Number:	StuddedTube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Base Pipe Material:

ASTM A335 / ASME SA335 GR.P9

Fin Material:

SS409 (1CR12), SS410(1Cr13), 11~13Cr, 11Cr, 13Cr

Stud Fin Diameter:

12.7mm , 15.88mm , 19.05mm

Stud Fin Hight:

8mm ~ 50.8mm

Studded Tube Length:

Max.: 34m/pc

Studded Tube Testing:

Hammer Hit Testing

Supply Ability:

10000 tons/month

Highlight:

studded alloy steel seamless pipe

11cr studded tube

11cr alloy steel seamless pipe

Product Description

Studded Tube, ASME AS335 P9 Alloy Steel Seamless Pipe with 11Cr (SS409) Stud, Fired Heater, Furnace Application

Product Specifications

Attribute	Value
Base Pipe Material	ASTM A335 / ASME SA335 GR.P9
Fin Material	SS409 (1CR12), SS410(1Cr13), 11~13Cr, 11Cr, 13Cr
Stud Fin Diameter	12.7mm, 15.88mm, 19.05mm
Stud Fin Height	8mm ~ 50.8mm
Studded Tube Length	Max.: 34m/pc
Studded Tube Testing	Hammer Hit Testing

Product Description

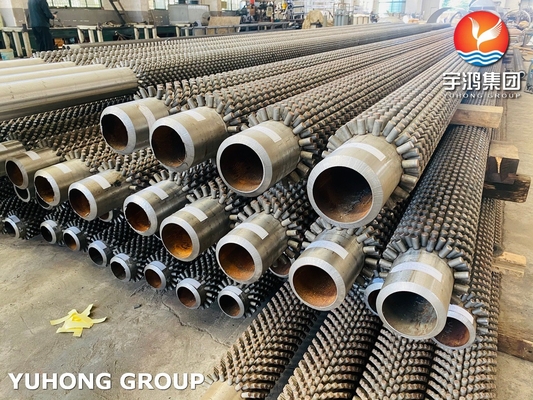

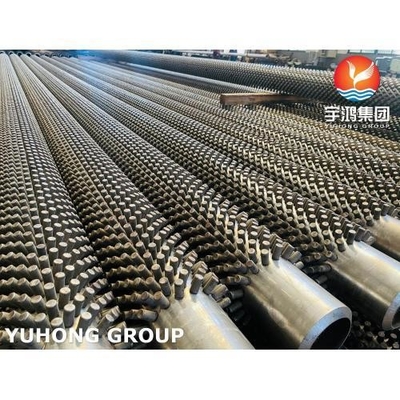

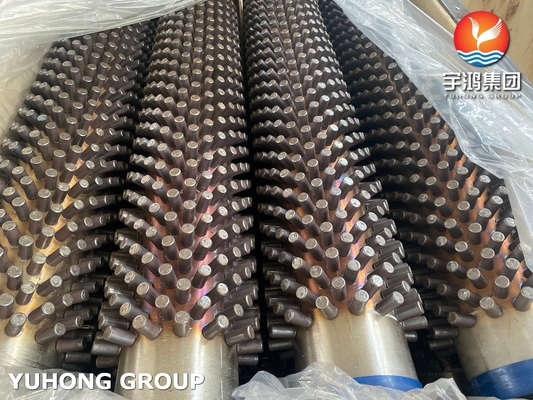

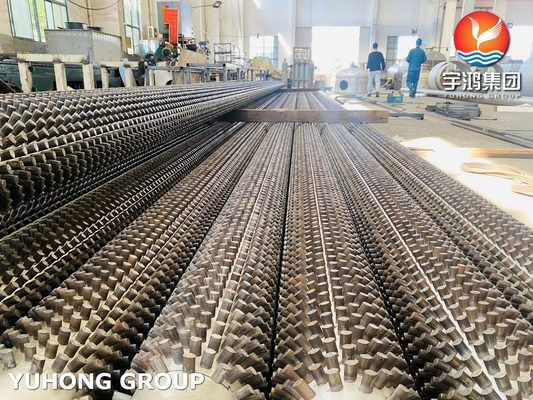

ASTM A335/ASME SA335 Gr. P9 Alloy Steel Studded Tubes are designed for convection chambers in heating furnaces within the petrochemical industry, significantly enhancing the heat transfer coefficient at the fuming side. These studded tubes offer two to three times the heat transfer surface area compared to standard light tubes.

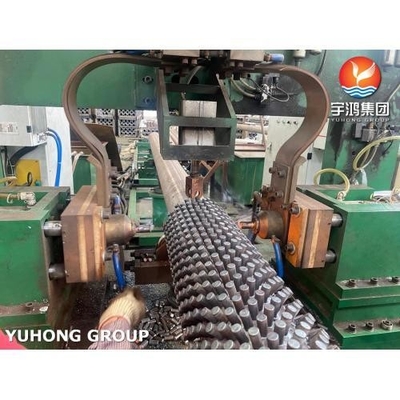

Studded tubes are manufactured using power frequency contact-type resistance welding and upsetting force fusion welding, creating an integrated heat exchange component that maintains structural integrity while optimizing thermal performance.

Equivalent Grades

ASTM	ASME	UNS	BS	ISO	JIS G 3458
A335 P9	SA335 P9	S50400	3604 P1 629-470	2604 II TS38	STPA 26

Key Advantages

Optimal connection surface with minimal heat loss
Welding connection rate exceeding 90%
Eliminates need for welding power with virtually no welding tumor formation
Narrow heated surface zone preserves base tube tissue integrity
Precisely controlled welding parameters ensure consistent quality

Chemical Composition

Compositions	%
Carbon(max.)	0.15
Manganese	0.3-0.6
Phosphorus(max.)	0.025
Silicon(max.)	0.5
Chromium	4-6
Molybdenum	0.45-0.65

Mechanical Properties

Tensile Strength, ksi [MPa], min	Yield Strength, ksi [MPa], min	Elongation (%), min
60 [415]	30 [205]	30

Industrial Applications

Heat exchangers and boilers
Air coolers and oil fire furnaces
Chemical processing equipment
Petrochemical and petromedical systems
Offshore platforms and fired heaters
Specialized heating equipment
