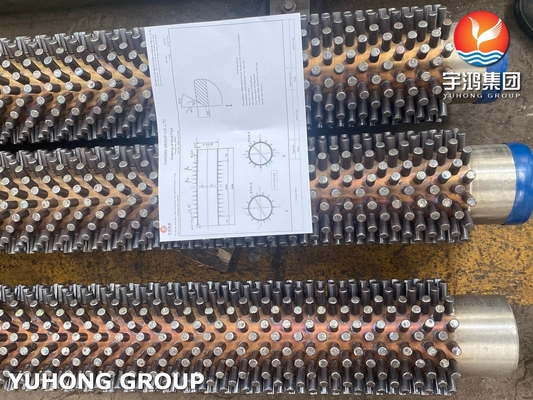

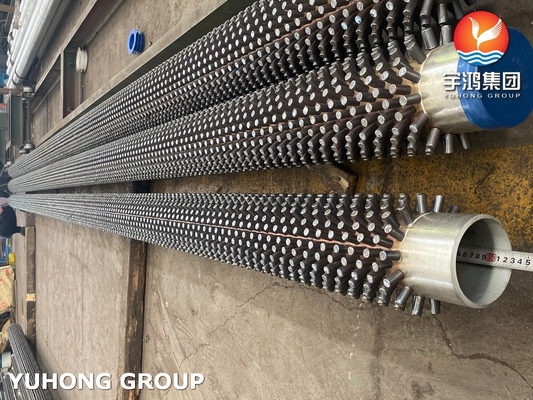

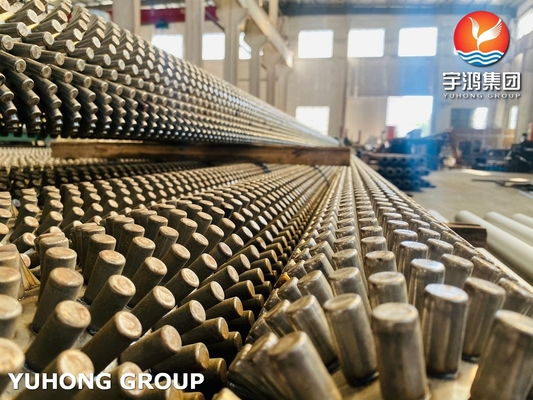

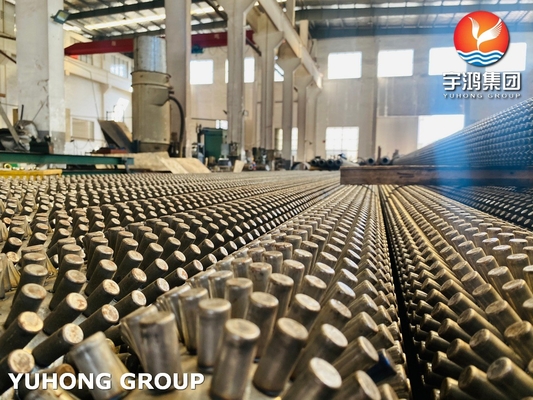

Alloy Steel Studded Tube, ASME SA335 P5 With 11Cr, Fired Heater, Convective Heater Coils For Oil Refinary

Brand Name:	YUHONG
Model Number:	Studded Fin Tube, Studded Tube, Pin Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Pipe:

ASTM A335 P5, ASME SA335 P5

Stud Material:

SS409 , SS410, 11Cr, 13Cr

Studded Tube OD:

50mm ~ 325mm

Studded Tube Length:

Max.: 34m/pc

Studs Diameter:

12.7mm, 15.88 19.05mm

Studs Hight:

Max.: 50.8mm

Studded Tube Application:

Furnace, Fired Heater, Convective Heater Coils

Supply Ability:

10000 tons/month

Highlight:

Alloy Steel Studded Tube

Studded Tube ASME SA335 P5

11Cr Convective Heater Coils

Product Description

Alloy Steel Studded Tube, ASME SA335 P5 With 11Cr, Fired Heater, Convective Heater Coils For Oil Refinery

Product Specifications

Attribute	Value
Base Pipe	ASTM A335 P5, ASME SA335 P5
Stud Material	SS409, SS410, 11Cr, 13Cr
Studded Tube OD	50mm ~ 325mm
Studded Tube Length	Max.: 34m/pc
Studs Diameter	12.7mm, 15.88mm, 19.05mm
Studs Height	Max.: 50.8mm
Application	Furnace, Fired Heater, Convective Heater Coils

Product Description

Studded tubes are engineered components commonly used in heat exchangers and boilers. The strategically placed studs on the exterior surface significantly increase the effective surface area, dramatically improving heat transfer efficiency. This makes studded tubes particularly valuable in applications where optimal heat exchange is critical, including industrial processes, power generation systems, and petrochemical plants.

Key Applications in Heater Systems

Heater Coils: Enhances heat transfer efficiency by increasing available surface area for thermal exchange
Combustion Chamber: Improves heat transfer rates and overall system efficiency
Radiant Section: Maximizes heat transfer between hot gases and internal process fluid
Convection Section: Optimizes heat transfer from flue gases to process fluid

ASME SA335 P5 Chemical Composition (%)

C	Si	Mn	P	S	Cr	Ni	Mo	Ti	Nb	Cu	Al	V	Co	Fe	Result
≤0.15	≤0.50	0.3~0.6	≤0.025	≤0.025	4.0~6.0	/	0.45~0.65	/	/	/	/	/	/	/	/

ASME SA335 P5 Tensile Test (ASTM A370-20)

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2 (Mpa)	Elongation: A (%)
≥415	≥205	≥30

Material Advantages

High Temperature Performance: Engineered for demanding high-temperature environments in power plants and refineries
Superior Corrosion Resistance: Alloy composition ensures durability in corrosive conditions
Creep Resistance: Maintains mechanical properties under prolonged high-temperature exposure
Application Versatility: Suitable for steam pipelines, boiler tubes, heat exchangers, and superheaters

Fin Tube Specifications

Type	Description	Base Tube O.D. (mm)	Fin Pitch (mm)	Fin Height (mm)	Fin Thickness (mm)
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6-10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6-2	<1.6	~0.3
Bamboo tube	Corrugated tube	16-51	8~30	<2.5	/
Wound	L/KL/LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
H/HH type	H/HH type fin tube	25-63	8~30	<200	1.5-3.5
Studded	Studded fin tube	25-219	8~30	5~30	φ5-20
