ASTM A335 P9 Studded Tube, With 11Cr Studs Material , Fired Heater , Furnace Application

Brand Name:	YUHONG
Model Number:	Studded Tube , Pin Tube, Oil Furnace Tube , Steam Furnace Tube, Reforming Tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Base Pipe:

ASTM A335 P9, ASME SA335 P9, ASTM A213 T9, ASME SA213 T9

Fin Type:

Studded Tube , Pin Tube , Solid Tube

Fin Material:

SS409, SS410 , 1Cr13, 2Cr13, 11Cr, 13Cr

Testing:

Hammar Hitting Test

Application:

Boiler, Fired Heater Coils, Radiator, Convection Tube Cois

Studded Tube OD:

50~ 325mm

Supply Ability:

10000 tons/month

Highlight:

ASTM A335 studded pipe

studded pipe P11 P9

Studded steel fin tube

Product Description

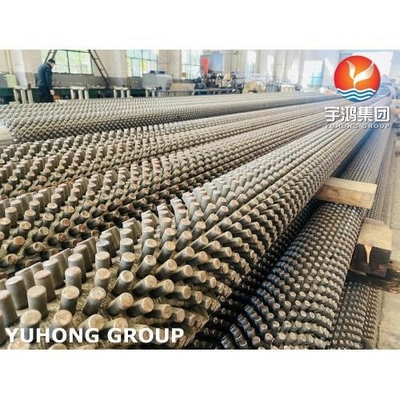

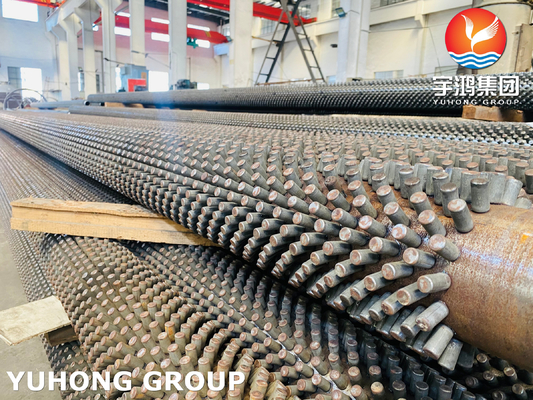

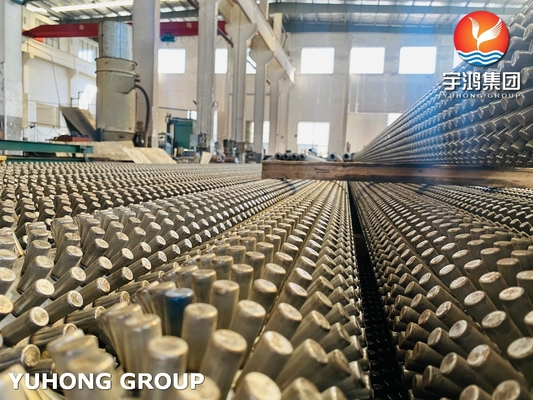

ASTM A335 P9 Studded Tube with 11Cr Studs Material for Fired Heaters and Furnace Applications

Product Overview

Studded fin tubes are specialized metal tubes with welded studs arranged in specific formations to enhance heat transfer efficiency. These tubes are widely used in boilers, refineries, and heat exchangers where increased surface area and corrosion resistance are required.

Key Specifications

Attribute	Value
Base Pipe	ASTM A335 P9, ASME SA335 P9, ASTM A213 T9, ASME SA213 T9
Fin Type	Studded Tube, Pin Tube, Solid Tube
Fin Material	SS409, SS410, 1Cr13, 2Cr13, 11Cr, 13Cr
Testing	Hammer Hitting Test
Application	Boiler, Fired Heater Coils, Radiator, Convection Tube Coils
Studded Tube OD	50~325mm

Technical Details

Tube Dimensions

OD: 38~219mm

WT: 4~15mm

Length: 18000mm Max.

Stud Specifications

OD: 6~16mm

Height: 10~45mm

Fin Types

Round, Oval, Pin

Material Specifications

Component	General Materials	Popular ASTM/ASME Materials
Bare Tube Material	Carbon Steel, Alloy Steel, Heat Resistant Steel, Stainless Steel	1. Carbon Steel: A106 Gr. B 2. Stainless Steel: TP304/304L, TP316/TP316L, TP347 3. Alloy Steel: P5, T5, P9, T9, T11, T22
Studs Material	Carbon Steel, Stainless Steel	1. Carbon Steel 2. Stainless Steel: TP409/410, TP304/304L, TP316/TP316L, TP321/TP321L

Applications

Heat Exchangers
Boilers
Air Coolers
Petrochemical Refineries
Power Plants
Chemical Industries
Steel Plants

Product Features

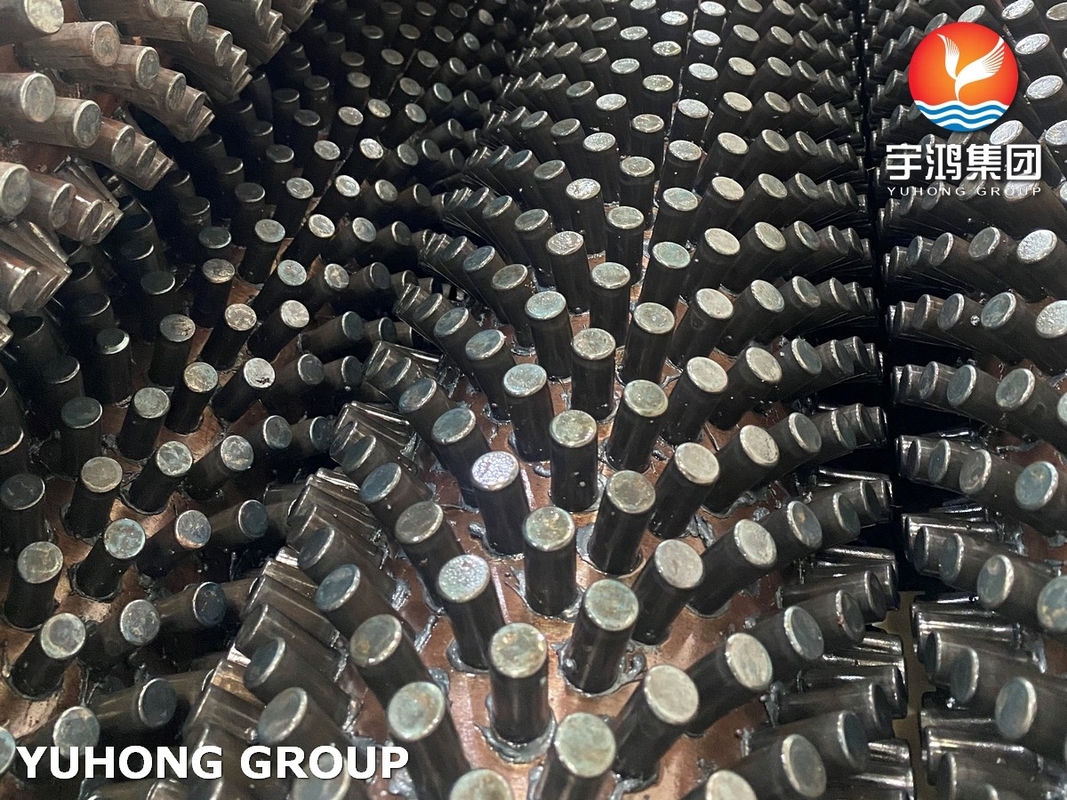

Studded fin tubes feature automatically resistance-welded steel studs that create high-quality forged welds. The process allows combination of any grade for studs and tubes, including carbon, low alloy, stainless steel, and high nickel alloys. Alloy steel tubes are stress-relieved after studding according to relevant specifications.

These tubes serve as an alternative to fin tubes in heat exchangers, particularly in petrochemical applications where surfaces are exposed to corrosion and aggressive environments.
