Name: TP316L ASTM A213 Longitudinal Finned Pipe With SS316L Fins For Oil Cooler
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: TP304,TP316L
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	TP304,TP316L
MOQ:	1 pc
Price:	Negotiable

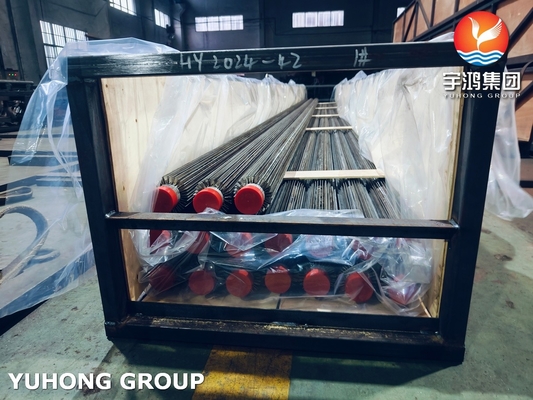

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Base Tube Material:

TP304, TP316L,

Fin Material:

SS304, SS316L,

Fin Thickness:

1.23mm

Fin Connection:

Welding

Fin Height:

15.875mm

Application:

Furnace, Oil And Gas

Highlight:

A213 finned pipe

Longitudinal finned pipe

TP316L fin tube heat

Product Description

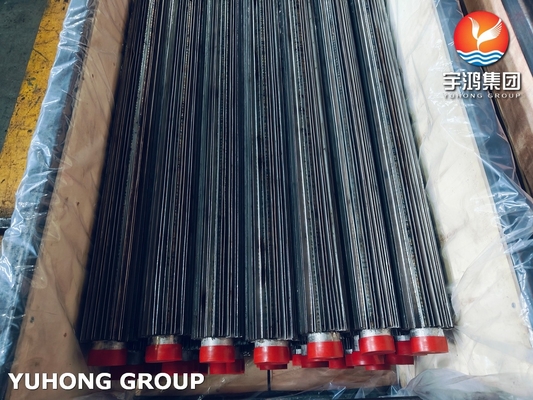

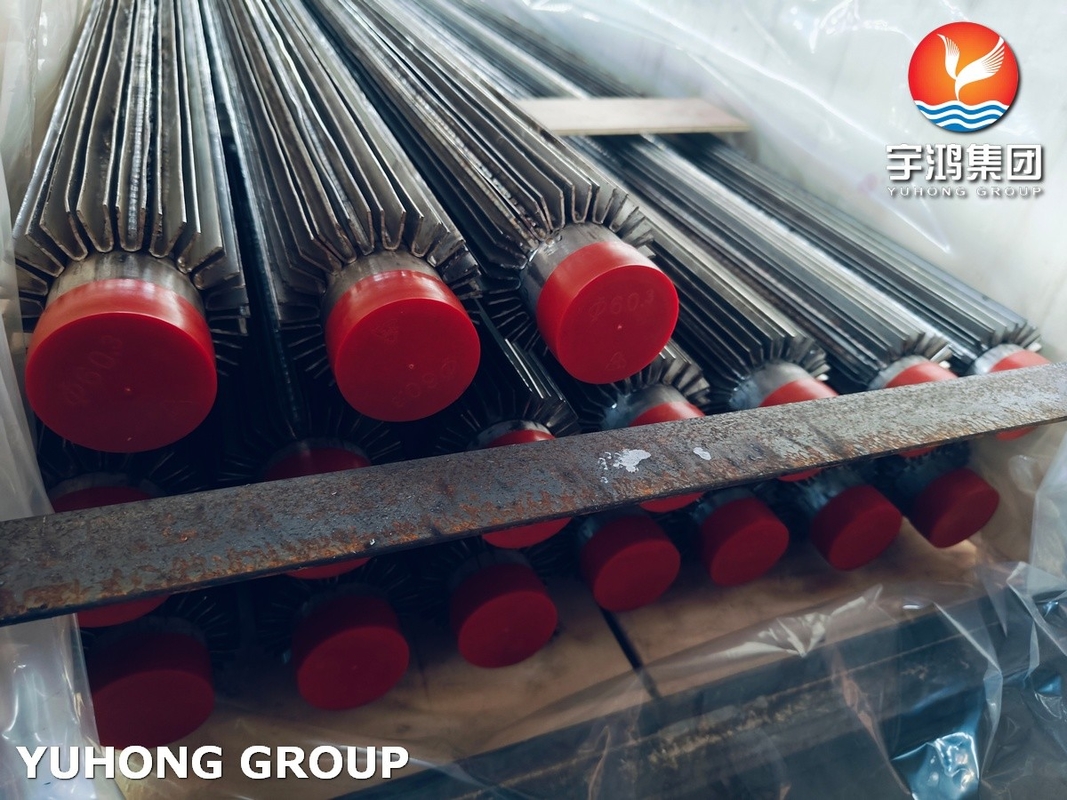

TP316L ASTM A213 Longitudinal Finned Pipe With SS316L Fins For Oil Cooler

Base Tube Material	TP304, TP316L
Fin Material	SS304, SS316L
Fin Thickness	1.23mm
Fin Connection	Welding
Fin Height	15.875mm
Application	Furnace, Oil and Gas

Longitudinal Finned Tube ASTM A213 TP316L Tube with SS316L Fins for Oil Cooler

Key Features

Base Tube Material: ASTM A213 TP316L Stainless Steel, providing excellent corrosion resistance, particularly in harsh environments like oil coolers where resistance to high temperatures and chemical exposure is crucial.
Fin Material: SS316L Stainless Steel, known for its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking, ideal for applications in oil coolers.
Fin Type: Longitudinal Fins, designed to provide efficient heat transfer by increasing the heat exchange surface area along the tube.
Application: Specifically engineered for oil cooler systems, providing high-performance cooling in hydraulic, mechanical, and industrial oil circuits.

Technical Specifications

Property	Base Tube (ASTM A213 TP316L)	Fin Material (SS316L)
Outer Diameter (OD)	15.88 mm - 50.8 mm	Customizable based on design
Wall Thickness	1.5 mm - 4.0 mm	-
Fin Thickness	-	1.5 mm - 3.5 mm
Fin Height	-	10 mm - 40 mm
Fin Attachment	Welded or Mechanically Bonded

Chemical Composition

Element	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Carbon (C)	≤ 0.03%	≤ 0.03%
Manganese (Mn)	2.00% (max)	2.00% (max)
Phosphorus (P)	≤ 0.045%	≤ 0.045%
Sulfur (S)	≤ 0.030%	≤ 0.030%
Chromium (Cr)	16.00 - 18.00%	16.00 - 18.00%
Nickel (Ni)	10.00 - 14.00%	10.00 - 14.00%
Molybdenum (Mo)	2.00 - 3.00%	2.00 - 3.00%

Mechanical Properties

Property	ASTM A213 TP316L (Base Tube)	SS316L (Fin Material)
Tensile Strength	≥ 485 MPa	≥ 485 MPa
Yield Strength	≥ 170 MPa	≥ 170 MPa
Elongation	≥ 35%	≥ 35%

Advantages

Corrosion Resistance: SS316L fins and ASTM A213 TP316L base tube offer exceptional resistance to aggressive environments, including oils, chemicals, and saline conditions.
Efficient Heat Transfer: Longitudinal fins increase the surface area for heat exchange, making these tubes highly efficient in oil cooler applications.
High-Temperature Durability: Both materials maintain their mechanical properties even at elevated temperatures, ideal for oil cooling systems.
Enhanced Mechanical Stability: The welded or mechanically bonded fins ensure robustness under high pressures and thermal stress.

Applications

Oil Coolers: Effective in cooling oils in automotive, industrial, and marine systems.
Hydraulic Systems: Maintaining oil temperature in hydraulic machines and circuits.
Power Plants: For cooling lubricants and oils in machinery and compressors.
Chemical Processing: Oil cooling in equipment exposed to corrosive environments.
